Megger PAT320 Business in a Box
- Everything needed to build a business in PAT testing
- Dual voltage testing, compatible with industrial and IT appliances
- PAT testing and industry guides provide useful references for the user

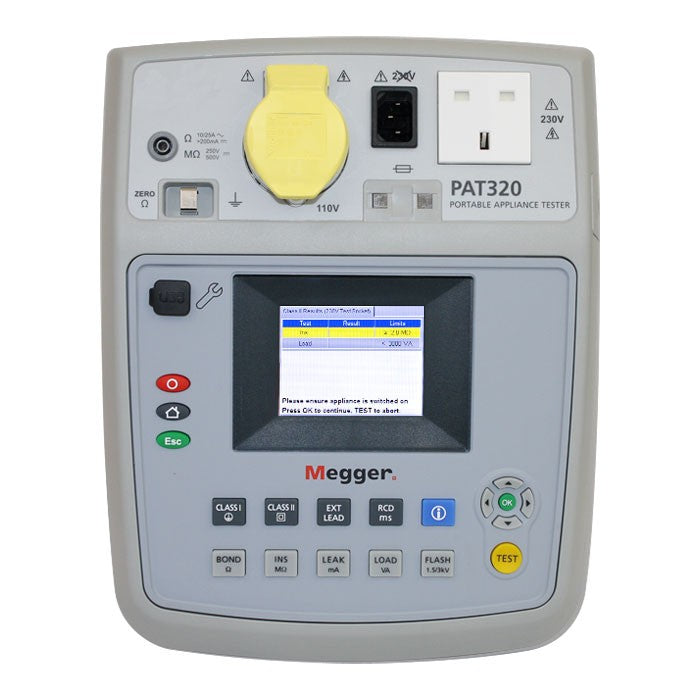

The Megger PAT320 Business in a Box has a tester and several accessories designed to help electrical professionals make the step into the PAT training sector. The tester included is the Megger PAT320 which can perform all the tests associated with PAT testing at 110V and 230V. These include earth bond testing with currents of 25A, 10A and 200mA so it can be used for testing both industrial equipment and IT appliances. The colour screen clearly displays PASS/FAIL functions and test readings and the function buttons allow quick access to the different tests.
Aside from the Megger PAT320 itself, the Business in a Box also features two useful guides to PAT testing. The first is a printed guide to the practicalities of PAT testing which acts as a useful reference to any PAT testing professional, regardless of experience. The second is a CD guide to the PAT testing industry containing advice on how to get started as a PAT business.

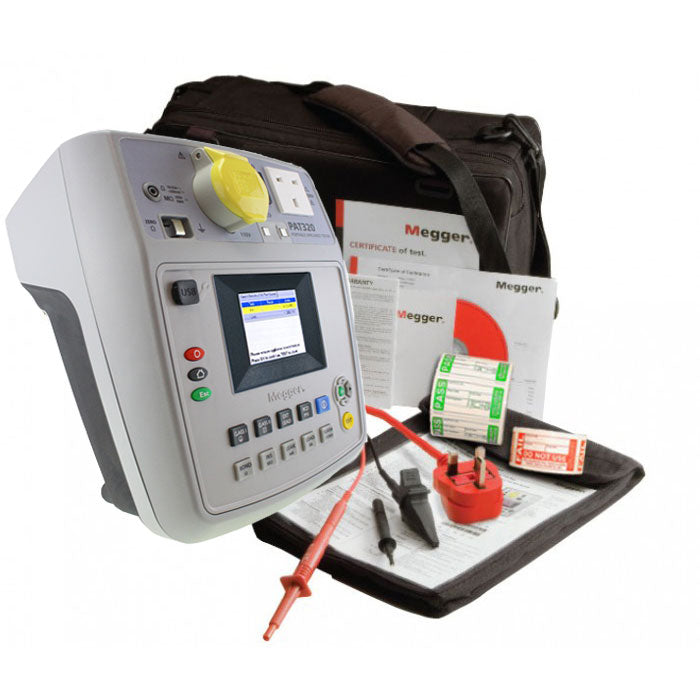

The Megger PAT320 Business in a Box has an IEC adaptor for carrying out tests on extension leads and three rolls of labels (two PASS, one FAIL) are easily enough for the user’s initial PAT testing workload. A PAT test report book is included so the user can record test results and a Megger carry case is provided to transport and store the tester and its accessories.
The Megger PAT320 Business in a Box Includes:
- Megger PAT320 PAT Tester
- Calibration Certificate
- Printed quick starter guide
- CD user manual
- Guide to PAT Testing
- Guide to marketing a PAT Test Business supplied on a CD
- PAT Test Report Book
- Earth Continuity lead (2000-870)
- 13A Extension lead adaptor (1363 2000-881)
- Megger Carry case
- 1 Year Manufacturers Warranty
- Roll of 1000 green self-adhesive PASS labels
For more detailed information on the Megger PAT320 PAT Tester please click here.
| Kit A | Kit B | Kit C | Kit D | Business in a Box | |
|---|---|---|---|---|---|
| Megger PAT320 PAT Tester | ✔ | ✔ | ✔ | ✔ | ✔ |
| Microwave Leakage Detector | ✔ | ✔ | |||
| PAT Certificate Pad | ✔ | ✔ | |||
| SimplyPATs Version 7 Software | ✔ | ✔ | |||
| PAT Register Book | ✔ | ✔ | ✔ | ✔ | |
| IEC Adaptor Kit | ✔ | ✔ | ✔ | ✔ | |
| 110V Extension Lead Adaptor | ✔ | ✔ | ✔ | ✔ | |
| Megger MST210 Socket Tester | ✔ | ✔ | ✔ | ✔ | |
| 250 Tuff Tag Pass Labels | ✔ | ✔ | ✔ | ✔ | ✔ |
| 1000 Pass Labels | ✔ | ✔ | ✔ | ✔ | ✔ |
| 200 Fail Labels | ✔ | ✔ | ✔ | ✔ | |
| 250 PassWrap Cable Labels | ✔ | ✔ | ✔ | ✔ | ✔ |
| 50 Microwave Emission Labels | ✔ | ✔ | |||
| Guide to PAT Testing | ✔ | ||||
| CD Guide to PAT Testing as a Business | ✔ |
- Earth Bond: 200mA, 10A & 25A (10 mΩ (0 to 1.99 Ω )
- Insulation: 250V or 500V selectable (10 mΩ (0 to 1.99 Ω)
- Substitute Leakage: 40V (0.01mA resolution)
- Differential Leakage: Nominal mains (0.01mA resolution)
- Touch Current: Nominal mains (0.01mA resolution)
- Operational test: Nominal mains (0 to 3700VA)
- IEC Lead test: 12V (Polarity)
- Portable RCD Test: Nominal mains (0.1ms resolution)
- Fuse test 3.3V (Audiable beep)
- Megger PAT320 meets the requirements of IEC 61010-1: 2001
- Test leads meet the requirements of IEC 61010-031: 2002
- Creepage and clearances for 300 volts to Earth Category II
The Megger PAT320 Business in a Box comes with:
- Megger PAT320 PAT Tester
- Calibration Certificate
- Printed quick starter guide
- CD user manual
- Guide to PAT Testing
- Guide to marketing a PAT Test Business supplied on a CD
- PAT Test Report Book
- Earth Continuity lead (2000-870)
- 13A Extension lead adaptor (1363 2000-881)
- Megger Carry case
- 1 Year Manufacturers Warranty
- Roll of 1000 green self-adhesive PASS labels
