Kewtech SMARTPAT Pro Software Kit

  • Comprehensively test appliances with the Kewtech SMARTPAT PAT Tester
  • Create customised PAT labels using the Kewtech KEW-80L PAT Label Printer
  • Manage and report results with SimplyPATs V7 Manual Plus software and KEWPAT app

£1,129.00 EXC. VAT

IN STOCK

Description

***SPECIAL OFFER: This product is currently available with 5 FREE KEW-80L Printer Label Rolls!***

The Kewtech SMARTPAT Pro Software Kit is Kewtech’s premium PAT testing option, ideal for those with lots of PAT testing commitments. With a sophisticated tester, software and a label printer, this kit can work with the Kewtech KEWPAT App to create a truly smart appliance testing option.

Kewtech SMARTPAT PAT Tester

The Kewtech SMARTPAT PAT Tester is a useful appliance tester that has comprehensive testing capabilities. Tests include 230V load & run testing – impressive from a battery-powered PAT tester – extended earth continuity testing, and PRCD testing, as well as standard PAT tests such as 200mA earth bond, 500V insulation resistance, leakage current and polarity checking.

Notably, the Kewtech SMARTPAT can work with the KEWPAT App on a suitable Android or iOS smartphone. This communicates wirelessly with the PAT tester via Bluetooth and can download information, form customised test sequences, and exert remote control over the tester. Reporting and certificate generation facilities are also available with the PAT tester.

Kewtech KEW-80L PAT Label Printer

With Bluetooth connectivity, the Kewtech KEW-80L PAT Label Printer can communicate wirelessly with the Kewtech SMARTPAT and KEWPAT App. This allows the user to print customised, barcoded PAT labels for appliances with details such as test result and test due date. It has a 13-hour battery life and rugged, compact design. Two Kewroll label rolls are supplied as standard.

SimplyPATs V7 Manual Plus Software

The SimplyPATs V7 Manual Plus Software package works as a manual software package where results are entered by the user or by downloading information directly from the KEWPAT App. It has facilities for certificate generation, invoicing, database storage, and reporting, and all the aspects of the software comply with the IET Code of Practice 4th Edition.

Other Accessories

A set of adaptors supplied with the Kewtech SMARTPAT Pro Software Kit allows testing on 110V appliances and extension leads. A 110V power adaptor is also supplied and an IEC clover leaf adaptor allows testing on AV and IT leads. A Kewtech KT103 socket tester allows the user to test wall sockets and everything can be stored on the supplied carry case.

Key Features

  • Operated via Bluetooth KEWPAT smartphone app
  • Load/leakage tests on 230V/110V appliances
  • Supplied with KEW-80L PAT label printer
  • QR- and barcode scanning for speedy retesting
  • Tag images from smartphone camera to records
  •  KewPAT app allows creation of PDF reports
  • Allows customer to sign in the KewPAT app
  • Dropdown menus for site, customer, description and location
  • Create customised auto sequence tests
  • Add company logo to reports and labels
  • Inbuilt risk assessment calculator suggests appropriate retest schedule

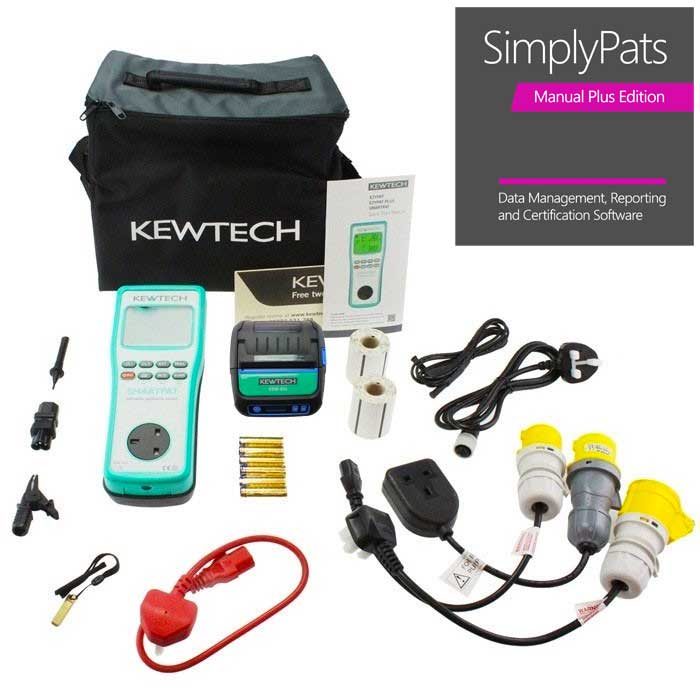

Kit Contents

  • Kewtech SMARTPAT PAT Tester
  • 110V appliance adaptor
  • 110V extension lead adaptor
  • 110V power adaptor
  • Kewtech KITBAG2 carry case
  • Kewtech KEW-80L PAT label printer
  • 5 x Kewtech KEW80 PAT label rolls
  • SimplyPATs V7 Manual Plus Software
  • IEC clover leaf adaptor
  • Kewtech KT103 socket tester

Specification

Protective Conductor Resistance Test
  • Measuring range: 0.00 - 20.00 Ω (NULL value inc)*
  • Over-range indication: > 20.00 Ω
  • Resolution: 0.01Ω
  • Open-circuit voltage: 5 V ±0.4 V DC
  • Measuring current: 200 mA DC (nominal value)
  • Accuracy: ±3%rdg ±5dgt
Mains Voltage
  • Display range: 30 - 270 V
  • Hi/ Lo indication: < 30 V: No voltage indication; > 270 V: 270 V
  • Resolution & Accuracy: 1 V & ±3%rdg ±5dgt
Insulation
  • Rated voltage: 250V / 500V
  • Measuring range: 0.00 - 20.00 MΩ
  • Over-range indication: > 20.00 MΩ
  • Resolution: 0.01 MΩ
  • No-load voltage: 250 V DC +20%, -0% / 500 V DC +20%, -0%
  • Short-circuit current: 1.5 mA DC or less
  • Rated current :1 -1.2 mA with a load of 0.25 MΩ 1 to 1.2 mA with a load of 0.5 MΩ
  • Accuracy: ±2%rdg±3dgt
Substitute Leakage
  • Measuring range 0.10 - 12.00 mA rms
  • Over-range indication > 12.00 mA
  • Resolution 0.01mA
  • Open-circuit voltage/ Freq. 30 V ±5 V rms / 50 Hz ±5%
  • Measuring current 1.2 mA AC ±0.5 mA (when measuring 12.00 mA)
  • Accuracy ±3%rdg±5dgt
Insulation Test Between L-N
  • Open-circuit voltage: 4.5 V ±0.5 V DC
  • Criteria of judgement: 100 kΩ ±20 kΩ or less: LCD shows “<0.10 MΩ” and the measurement is halted.
Run Leakage (Item: Load current / Leakage current)
  • Mains voltage range: 100 - 253 V / 50 Hz
  • Measuring range: 0.10 - 13.00 A rms 0.10 - 20.00 mA rms
  • Display range: 0.00 - 13.00 A 0.00 - 20.00 mA
  • Over-range indication: > 13.00 A > 20.00 mA
  • Resolution: 0.01A / 0.01mA
  • Accuracy: ±10%rdg ±5dgt / ±3%rdg ±5dvgt
  • Max. rating: 3 kVA max., 15 sec. cont. / -
RCD Test
  • Rated voltage 230 V - 15% to +10% / 50Hz
  • Rated current 10 mA / 30 mA
  • Test duration ×1: 0.0 ms - 500.0 ms / ×5: 0.0 ms - 40.0 ms
  • Test current accuracy: 2% - 8%
  • Operating time accuracy: ±2 ms ( 40 ms) ±8 ms (>40 ms)

Supplied Accessories

  • Kewtech SMARTPAT PAT Tester
  • 110V appliance adaptor
  • 110V extension lead adaptor
  • 110V power adaptor
  • Kewtech KITBAG2 carry case
  • Kewtech KEW-80L PAT label printer
  • 5 x Kewtech KEW80 PAT label rolls
  • SimplyPATs V7 Manual Plus Software
  • IEC clover leaf adaptor
  • Kewtech KT103 socket tester
