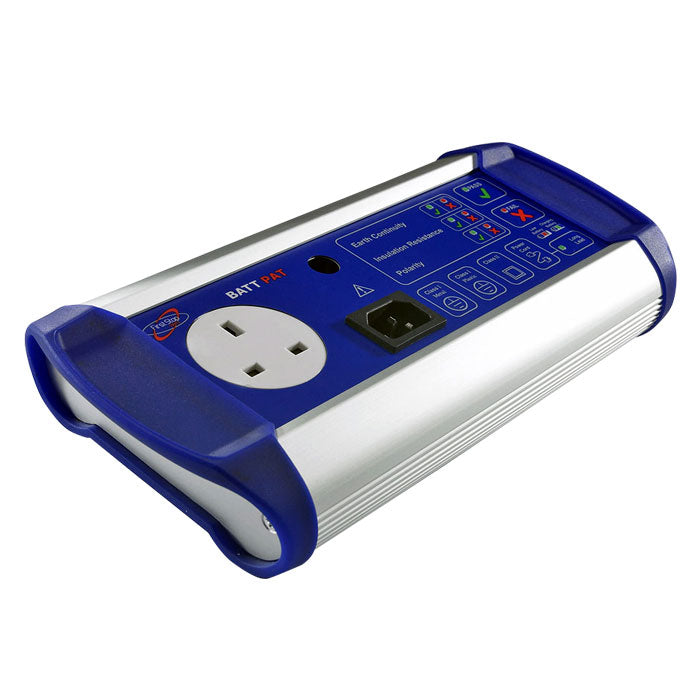

BATTPAT PAC Checker
- Ideal for novices thanks to straightforward operation
- Test Class I, Class II and IEC Leads at the push of a button
- One charge of rechargeable battery powers up to 500 tests
The BattPAT is a portable appliance safety checker offering simple battery powered PAT testing with quick Pass or Fail indications. Capable of performing an earth bond, insulation and IEC/Extension Lead test at the press of a button, the BattPAT is the ideal tester for beginners.
This small, handheld appliance checker is perfect for in-house testing of Class I and Class II electrical equipment. Simply press the button for the desired test and await the BattPAT’s Pass or Fail indication via the colour-coded LEDs.
Complete with a rugged design and fast rechargeable battery pack allowing up to 500 tests per charge, a fantastic choice for those new to electrical safety testing.
Key Features
- 150mA earth bond continuity test
- 350V DC insulation resistance test
- LED PASS/FAIL indication
- Rechargeable battery pack
- User-friendly operation
- Polarity check
| BATTPAT | MemoryPAT | MemoryPAT Blu | |
|---|---|---|---|
| Earth continuity Test (150mA) | ✔ | ✔ | ✔ |
| Insulation Test (350V) | ✔ | ✔ | ✔ |
| Polarity Test | ✔ | ✔ | ✔ |
| Long Lead Test Function | ✔ | ✔ | ✔ |
| Power On Test | ✔ | ✔ | |
| PASS/FAIL Indication | ✔ | ✔ | ✔ |
| Internal Memory (2000 results) | ✔ | ✔ | |
| Bluetooth Connectivity | ✔ | ||
| Compatible with PATRec Android App | ✔ |
- Earth Continuity Test: 150mA Pass level < 0.25 ohms for leads up to 10m; <0.5 ohms - leads up to 25m
- Insulation Test: 350 Volts DC
- Polarity Test performed on power cords and extension leads
- Dimensions: 45 cm x 28.5 cm x 13 cm
- Weight: 1.1 kg

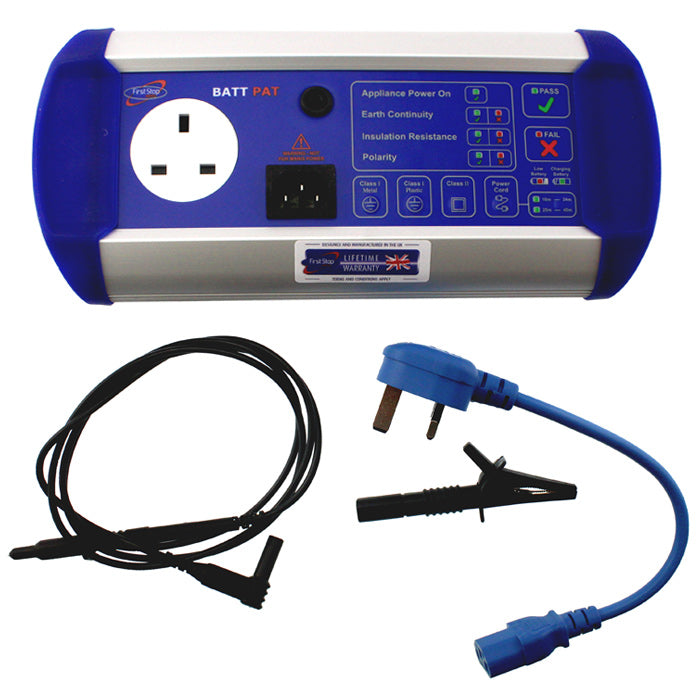

The BATTPAT comes with:
- Earth and Insulation Test Lead with crocodile clip
- Simple PAT tester Instructions
- 230V extension Lead adapter
- 12 months manufacturers warranty
The BATTPAT PAC Checker comes in a range of different kits:
| Kit A | Kit B | Kit C | Kit D | |
|---|---|---|---|---|
| BATTPAT | ✔ | ✔ | ✔ | ✔ |
| First Stop Safety PAT Testing DVD | ✔ | ✔ | ||
| First Stop Safety PAT Testing Guide Book | ✔ | |||
| Microwave Leakage Detector | ✔ | ✔ | ✔ | ✔ |
| Microwave Emission Labels x 150 | ✔ | ✔ | ✔ | ✔ |
| PAT Certificate Pad | 1 | 1 | 2 | |
| PAT Register Book | ✔ | ✔ | ✔ | |
| SimplyPATs Version 7 Software | ✔ | |||
| IEC Clover Leaf Adaptor | ✔ | ✔ | ||
| IEC Adaptor Kit | ✔ | ✔ | ||
| 110V Appliance Adaptor | ✔ | ✔ | ||
| 110V Extension Lead Adaptor | ✔ | ✔ | ||
| TEK989 Socket Checker | ✔ | ✔ | ✔ | ✔ |
| Pass Labels x 1000 | ✔ | ✔ | ✔ | ✔ |
| Fail Labels x 200 | ✔ | ✔ | ✔ | ✔ |
| PassWrap Labels x 250 | ✔ | ✔ | ✔ | ✔ |
| Tuff Tag Pass Labels x 250 | ✔ | ✔ | ||
| Carry Case | ✔ | ✔ | ✔ |
