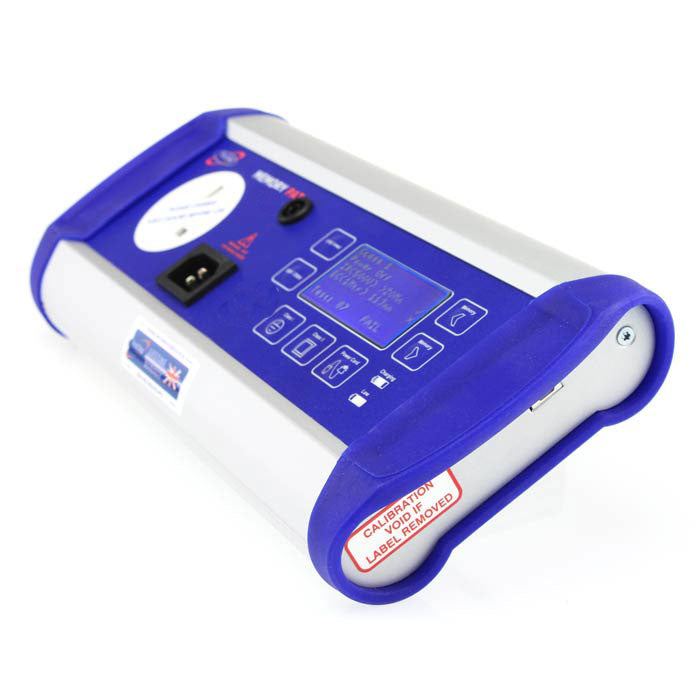

MemoryPAT Tester

  • Downloadable memory facility for up to 2000 results
  • Tests extension leads of up to 50m in length
  • Test results clearly shown on large digital display

£309.00 EXC. VAT

IN STOCK

Description

 The MemoryPAT Tester is a simple to use, battery powered PAT Tester that is suitable for testing a range of everyday appliances from kettles and drills to PCs and other office equipment.

Capable of performing all the required tests for users PAT testing in offices, schools, hotels and factories the First Stop Safety Memory PAT offers simple one button operation and clearly displays the test result.

In addition, you can store up to 2000 test records using the onboard memory. These results can then be transferred to a PC and put into reports using the free Download Utility which can be downloaded and installed by clicking here.

Key Features

  • Storage of 2000 results in memory with easy recall
  • Download to PC
  • Built-in rechargeable batteries
  • Power ON test checks that the appliance is switched ON
  • Long lead button going up in 5 metre steps upto 50 metres
  • Insulation testing at 500V and 250V for surge protected appliances
  • Test results shown on a large display
  BATTPAT MemoryPAT MemoryPAT Blu
Earth continuity Test (150mA)
Insulation Test (350V)
Polarity Test
Long Lead Test Function
Power On Test
PASS/FAIL Indication
Internal Memory (2000 results)
Bluetooth Connectivity
Compatible with PATRec Android App

Specification

Earth Continuity Test

  • Current: 150mA
  • O.C. Voltage: 8 - 10V
  • Tolerance: 5% +20mΩ

Fail Threshold (based on user selected lead length)

  • 1m >0.1Ω Default
  • 5m ; >0.2Ω
  • 10m >0.3Ω
  • 15m >0.4Ω
  • 20m >0.5Ω
  • 25m >0.6Ω
  • 30m >0.7Ω
  • 35m >0.8Ω
  • 40m >0.9Ω
  • 45m >1.0Ω
  • 50m >1.1Ω

Insulation Test

  • Test Voltage: 500V +/- 10% into 0.5MΩ
  • Test Voltage: 250V +/- 10% into 0.5MΩ
  • Tolerance: 5% + 0.1
  • Fail Threshold Class I: < 1MΩ
  • Fail Threshold Class II: < 2MΩ

Polarity Test

  • Test Voltage: 30V DC
  • Tests: Live, Neutral open circuit, Live to Neutral short

Power On Test

  • Test Voltage: 40V rms
  • Resistance: On if <10kΩ
  • Battery: 9V, 600mAh, 7 x AAA NiMH
  • Life: > 500 operations
  • Dimensions: 325 x 130 x 45mm
  • Weight: 1.1kg

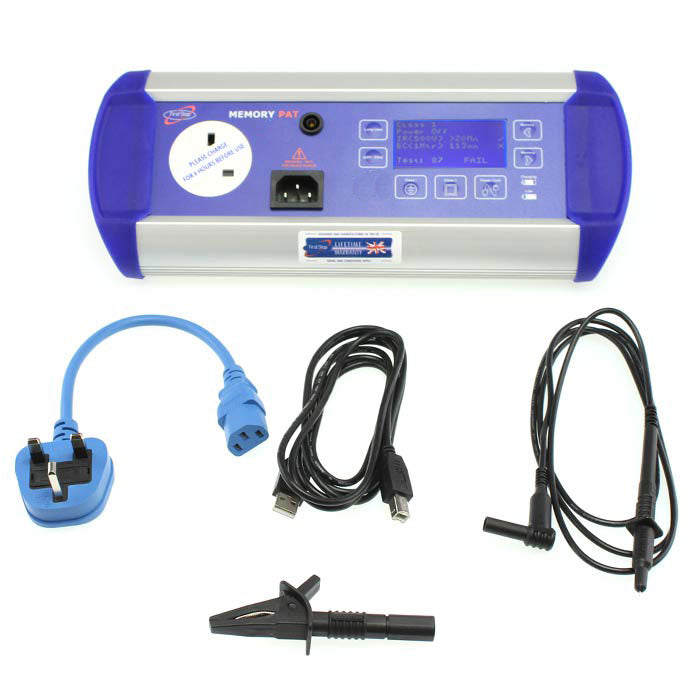

Supplied Accessories

The MemoryPAT comes with:

  • 230V Extension Lead Adaptor
  • USB Lead and Mains Adaptor
  • Rechargeable Batteries
  • Equipment Register Form
  • Test Record Form
  • 12 Months Manufacturer’s Warranty
