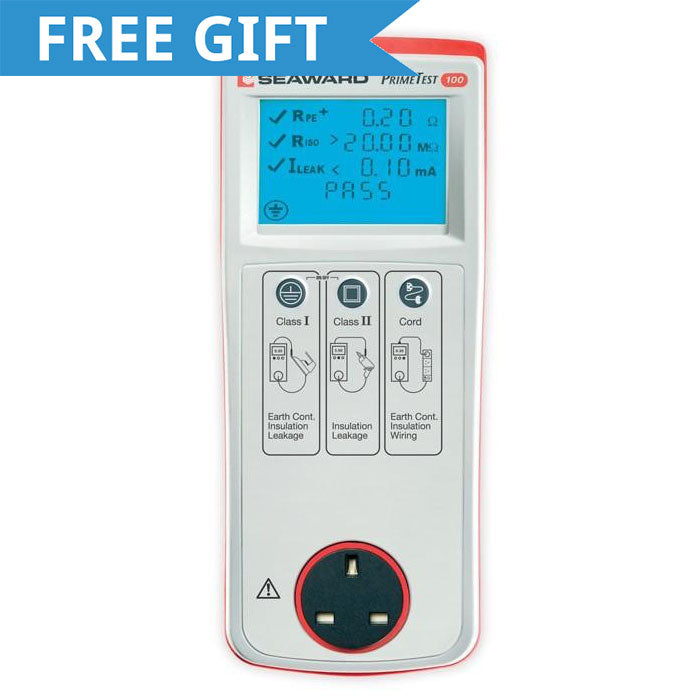

Seaward Primetest 100 PAT Tester

  • A handy, portable PAT tester with user-friendly operation
  • An ideal tester for PAT testing beginners with lower workloads
  • Large display shows PASS/FAIL indication plus numerical readings

Description

The Seaward Primetest 100 PAT tester enables quick and simple electrical safety testing of Class I, Class II and IEC Leads complete with a Power Socket test mode. The straightforward operation of this handheld, battery powered, manual PAT tester means that a high volume of tests can be performed in a short space of time.

Operation of the Primetest 100 portable appliance tester merely requires the button of the desired test to be pressed. Upon completion of the test a clear Pass or Fail indication is given along with the numerical test result allowing for a more comprehensive PAT testing procedure and providing the data necessary for completing a professional PAT certificate.

The Primetest 100 is also compatible with Seaward’s new PATmobile app, available to download now. Offering you the option to log results, tag photos, export your data or print labels* from your smart phone, this app gives users the flexibility to store digital information for your manual PAT tester. (*Label printing feature currently available for Android devices only.)

The Seaward Primetest 100 is ideal for electrical safety checks of office electrical and IT equipment as well as appliances found within domestic environments. This low cost portable appliance tester from Seaward is perfect for electricians and engineers new to PAT testing, offering a simple to use device with the added benefit of test result values.

Key Features

  • Test Class I, Class II, IEC leads & Mains Sockets at the push of a button
  • Clear Pass/Fail indication with numerical test result
  • Handheld, lightweight and battery powered
  • Ideal for PAT testing novices or those wanting a quick and simple to use tester
  Primetest 50 Primetest 100 Primetest 250 Primetest 250 Plus
Earth Continuity Test
Insulation Test (250V)
Insulation Test (500V)
Polarity Test
Leakage Current Test
Touch Current Test
Protective Conductor Current Test
RCD Trip Time Test
PASS/FAIL Indication
Numeric Reading Values
Extension Lead Test
Socket Test
Three-Phase Testing
Auto Test Sequences
Internal Memory (999 results)
Compatible with Seaward TNT Pro Printer

Specification

Earth Continuity

  • Test Current: +/- 200mA DC
  • Display Range: 0.00ohms – 19.99ohms
  • Pass Value: 0.2ohms

Insulation Range

  • Test Voltages: 500V DC
  • Display Range: 0.20Mohms – 19.99Mohms
  • Pass Value: 2Mohms

IEC Lead Test

  • Tests Performed: Earth Continuity, Insulation Resistance, Live, Neutral Continuity and Polarity

Equivalent Leakage Class I

  • Test Voltage: 40V, 50Hz AC Nominal
  • Display Range: 0.10mA – 19.99 mA
  • Pass Value: 0.75mA

Equivalent Leakage Class II

  • Test Voltage: 40V, 50Hz AC Nominal
  • Display Range: 0.10mA – 19.99mA
  • Pass Value: 0.25mA

Power Socket Test

  • Input Voltage Range: 230V +10% - 15% AC
  • Indicators: Phase to Earth Voltage, Phase to Neutral, Neutral to Earth

Dimensions

  • 260 x 100 x 55mm

Weight

  • 800g

Supplied Accessories

The Seaward Primetest 100 comes with:

  • 230V Extension Lead Adaptor
  • Test lead with crocodile clip
  • Instruction Manual
  • 12 Month Warranty
  • 6 x AA Batteries
  • Carry Case

Kit Options

The Seaward Primetest 100 is available in a range of kits:

Kit A Kit B Kit C Kit D PATMobile App and Printer Kit
Seaward Primetest 100 PAT Tester
TEK989 Socket Tester
Earth Test Lead & 230V Extension Lead
Seaward PATBag Carry Case & 6 x AA Batteries
PAT Certificate Pad
PAT Register Book w/ Frequency of Inspection
IEC Clover Leaf Adaptor
IEC PAT Adaptor Kit
110V Appliance Adaptor & 110V Extension Lead Adaptor Appliance Adaptor Only
Microwave Leakage Detector &150 x Microwave Emission Labels
1000 Pass Labels, 200 Fail Labels & 250 PassWrap Cable Labels
250 Tuff Tag Pass Cable Wraps
SimplyPATs Version 7 Manual PAT Software
Seaward PAT Training Online Course Voucher
Seaward Test n Tag Pro Bluetooth Printer
3 x Printer Rolls

Videos



Available For Hire

Available For Hire: £65 Per Week (exc. VAT)

    Free Gifts - Receive 200 Pass and 200 Fail labels free when you hire a tester from PAT-Testers.co.uk.

    Shipping - We are happy to arrange delivery & collection of hire equipment at a cost of £10 each way (optional).

    Booking a PAT Tester with us is simple:

    1. Choose a tester from our hire fleet
    2. Decide the dates you need the tester
    3. Call us on 0113 248 9966 to book or click the button below

    Enquire Now
