Kewtech EZYPAT Kit A

  • Automatic test sequences for Class I, Class II and IEC/extension leads
  • Additional testing capabilities with microwave tester, socket test and IEC adaptor
  • Includes a comprehensive range of PAT test labels plus a certificate pad and a PAT register book

£389.00 EXC. VAT

IN STOCK

Description

Kewtech EZYPAT Kit A is built around the entry-level Kewtech EZYPAT PAT Tester. This tester is capable of performing earth bond tests, insulation tests, polarity checks and substitute leakage measurement. These tests are activated in automated sequences for Class I and Class II appliances and IEC/extension leads. It is operated using simple push buttons and results are clearly shown on the large digital screen.

Kewtech EZYPAT Kit A contains a wide range of PAT accessories to aid the user during and after testing. There is a comprehensive set of PAT labels, a PAT certificate pad and a register book whilst an IEC clover leaf adaptor increases the scope of the tester as it enables testing of leads and power cords used with IT equipment. A microwave leakage detector and socket tester are also included.

For more information on the Kewtech EZYPAT PAT Tester, please click here.

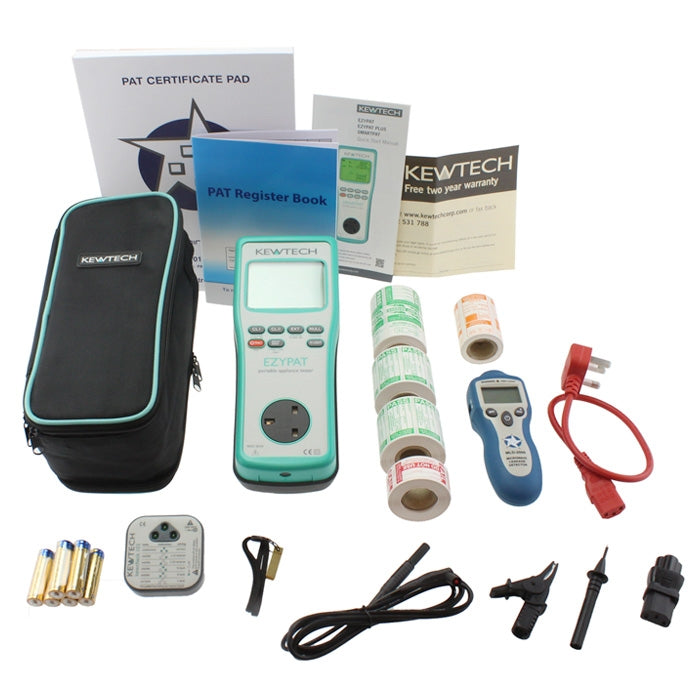

Kit Contents

  • Kewtech EZYPAT PAT Tester
  • Two rolls of PASS labels (x500)
  • Fail labels (x200)
  • PassWrap labels (x250)
  • PAT certificate pad
  • PAT register book
  • IEC clover leaf adaptor
  • Microwave leakage detector
  • Microwave labels (x50)
  • Kewtech KT103 Socket Tester

  Kit A Kit B Kit C
Kewtech EZYPAT PAT Tester
PASS labels x2 x2 x2
FAIL labels
PassWrap labels
Tuff Tag Pass Labels
PAT certificate pad
PAT registerbook x1 x1 x2
IEC clover leaf adaptor
IEC adaptor kit
110V appliance adaptor
110V extension lead adaptor
Kewtech KT103 Socket Tester
Microwave leakage detector
Microwave emission labels
Kewtech KITBAG2 carry case

Specification

Protective Conductor Resistance

  • Measuring range: 0.00 - 20.00 Ω (NULL value inc)*
  • Over-range indication: > 20.00 Ω
  • Resolution: 0.01Ω
  • Open-circuit voltage: 5 V ±0.4 V DC
  • Measuring current: 200 mA DC (nominal value)
  • Accuracy: ±3%rdg ±5dgt

Insulation

  • Rated voltage: 250V / 500V
  • Measuring range: 0.00 - 20.00 MΩ
  • Over-range indication: > 20.00 MΩ
  • Resolution: 0.01 MΩ
  • No-load voltage: 250 V DC +20%, -0% / 500 V DC +20%, -0%
  • Short-circuit current: 1.5 mA DC or less
  • Rated current: 1 -1.2 mA with a load of 0.25 MΩ / 1 to 1.2 mA with a load of 0.5 MΩ
  • Accuracy: ±2%rdg±3dgt

Substitute Leakage

  • Measuring range: 0.10 - 12.00 mA rms
  • Over-range indication: > 12.00 mA
  • Resolution: 0.01mA
  • Open-circuit voltage/ Freq.: 30 V ±5 V rms / 50 Hz ±5%
  • Measuring current: 1.2 mA AC ±0.5 mA (when measuring 12.00 mA)
  • Accuracy: ±3%rdg±5dgt

Applicable Standards

  • Safety: IEC/EN61010-1 CAT II 300V-instrument; IEC/EN61010-2-030; IEC/EN61010-031 CAT III 600V
  • EMC: EN61326-1, 2-2
  • Possible number of measurements where battery voltage is within the effective range (measuring every 30 sec): Approx. 1400 times (CLI Rpe: 0 Ω, Rins: 1.1 MΩ)

Supplied Accessories

Kewtech EZYPAT Kit A is supplied with:

  • Kewtech EZYPAT PAT Tester
  • Two rolls of PASS labels (x500)
  • Fail labels (x200)
  • PassWrap labels (x250)
  • PAT certificate pad
  • PAT register book
  • IEC clover leaf adaptor
  • Microwave leakage detector
  • Microwave labels (x50)
  • Kewtech KT103 Socket Tester
