Megger PAT120 Kit C

Megger PAT120 Kit C features the Megger PAT120 PAT Tester, a useful instrument that performs accurate testing on Class I and Class II devices as well as on extension leads and power cables. It has pre-set PASS/FAIL limits which can provide the user with a helpful indication as to device safety.

Adaptors for 110V appliances and extension leads are included in Kit C, thus permitting testing on various power tools and other construction equipment. An IEC adaptor kit is included for 230V extension leads whilst a socket tester enables verification of an appliance’s power outlet. A microwave leakage detector provides another useful testing function.

SimplyPATs Version 7 Manual Software is included as standard in Megger PAT120 Kit C so the user can make a digital record of test results alongside a physical record in the supplied PAT register book and certificate pad. Several different types of label are supplied so the user can attach secure ‘PASS’ indications to appliances and leads whether they are indoors or outdoors.

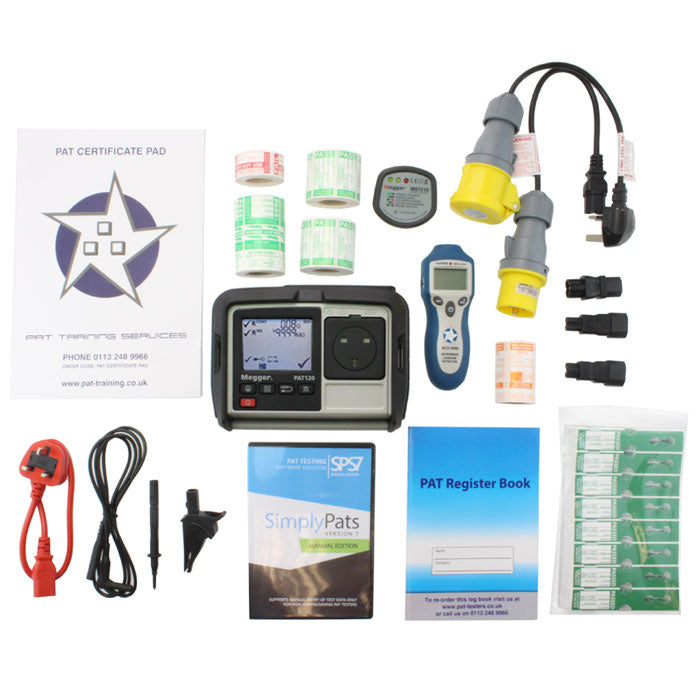

Megger PAT120 Kit C Includes:

• Megger PAT120 PAT Tester
• SimplyPATs Version 7 Manual Software
• 2 x 500 Pass Labels
• 200 Fail Labels
• 250 PassWrap Labels
• 250 Tuff Tag Pass Labels
• PAT Certificate Pad
• PAT Register Book
• IEC Cloverleaf Adaptor
• 110V Appliance Adaptor
• 110V Extension Lead Adaptor
• Megger MST210 Socket Tester

For more information on the Megger PAT120 PAT Tester please click here.

Environmental Conditions

• Operating ambient: 20°C
• Humidity: Nominal humidity

Continuity Test

• Test voltage: Compliance Voltage: +4V dc, –0 % /+10 % (open circuit)
• Test current: Bi-directional +200mA, -0% + 50mA (into 2Ω load)
• Continuity accuracy: Resistance: ± 5% ± 3 digits (0 to 19.99 Ω)
• Resistance resolution: 10 mΩ
• Display range: 0.01 to 19.99Ω
• Continuity test nulling: up to 9.99 Ω
• Test time: User selectable from 2 sec to 20 sec or selected during test to 180sec

Insulation Test

• Insulation test: 250V dc –0 % /+25 % open circuit, 500V dc –0 % /+25 % open circuit, ≥ 500V 0% dc across 0.5 MΩ load
• Short circuit/charge current: < 2mA dc
• Insulation accuracy: ±3% ±10 digits (0 to 19.99 MΩ)
• Resolution: 0.01 MΩ
• Display range: 0.10 MΩ to 99.99 MΩ
• Test duration: User selectable from 2 sec to 20 sec or selected during test to 180sec

Substitute Leakage Test

• Leakage current: Accuracy ± 5% ± 3 digits
• Test frequency: Nominal mains frequency 50Hz
• Test voltage: < 50V ac
• Resolution: 0.01mA
• Display range: 0.10 to 19.99mA
• Test duration: User selectable from 2 sec to 5 seconds
• Reading corrected to 230V ac.

Safety

• Instrument designed to IEC 61010-1: 2012
• Test leads designed to IEC 61010-031: 2005
• 300 volts to Earth Category II
• Mains fuse protection to 250 volts rms ac

EMC

• Design to meet IEC 61326-1: 2006 and IEC 61326-2-2: 2005.

Environmental

• Operating temperature range: 0°C to +40°C
• Storage temperature range: -20°C to +60°C
• Humidity: 90%RH @ +10°C +30°C, 75%RH @ +30°C to +40°C
• Maximum altitude: 2,000m to full safety spec.
• IP rating: IP40 (with front cover closed)

General

• Battery: Supply voltage, 12 Vdc (Alkaline AA LR6), 9.6 Vdc (NiMH AA LR6)
• Weight (PAT120 Only): 1150g
• Weight (Shipping): 2370g
• Dimensions: 203 x 148 x 78mm
• Megger Part Number: 1003-062

The Megger PAT120 Kit C comes with:

• Megger PAT120 PAT Tester
• SimplyPATs Version 7 Manual Software
• 2 x 500 Pass Labels
• 200 Fail Labels
• 250 PassWrap Labels
• 250 Tuff Tag Pass Labels
• PAT Certificate Pad
• PAT Register Book
• IEC Cloverleaf Adaptor
• 110V Appliance Adaptor
• 110V Extension Lead Adaptor
• Megger MST210 Socket Tester
