Barcode Scanner

  • CCD barcode scanner instantly identifies appliance
  • Works with multiple PAT tester brands incl. Seaward, Robin, Kewtech and Martindale
  • Connecting cable simply plugs into tester for simple, speedy operation

£95.00 EXC. VAT

IN STOCK

Description

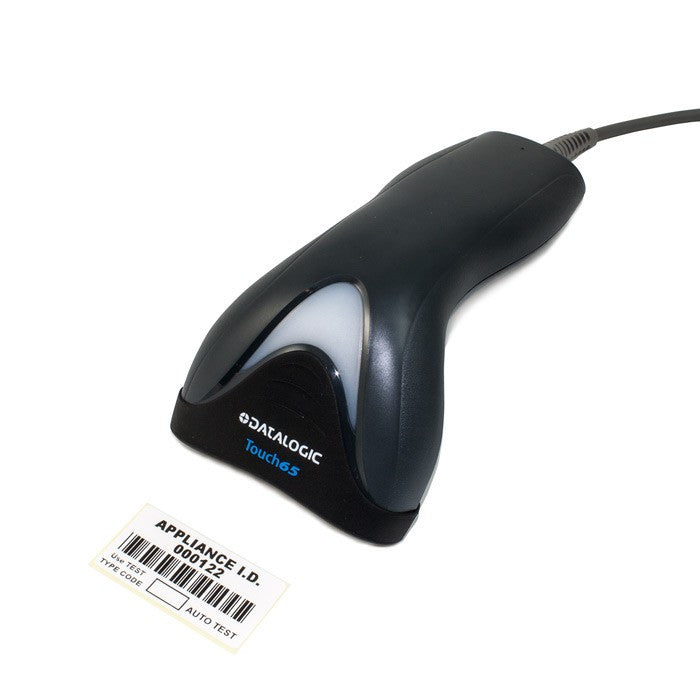

Use this barcode scanner in conjunction with a PAT tester to quickly scan an appliance ID bar code label so that it can be instantly recognised.

Previous test data and appliance information can be recalled on the PAT tester screen once the barcode scanner has read the appliance ID label, saving you the time-consuming task of re-entering details for appliances that you have previously PAT tested.

The CCD barcode appliance scanner allows for a more productive and streamlined PAT testing process and is a must for electricians and engineers looking for fast and accurate method of portable appliance recognition.

Compatible with:

  • Seaward Primetest 350, Europa Plus and Supernova Elite
  • Megger PAT4DV/3 and PAT4DVF/3
  • Martindale MicroPAT Plus
  • Kewtech KT74, KT75 and KT77
  • Transmille 6080 Plus
  • Metrel BetaPAT Plus, OmegaPAT Plus and SigmaPAT
  • Fluke 6500

Specification

  • Scan rate 256 scans/sec
  • USB, RS232, Wedge and Pen in a single model
  • RSS code reading available
  • Enhanced multistandard architecture
  • 65 and reading window
  • PUZZLE SOLVER™ decoding system
  • Complete data formatting and data editing (Pro models)
  • EAS dedicated model
  • Sunrise 2005 compliant
  • Red and Green Illumination
  • Hands Free table mountable Holster

Electrical Characteristics

  • Power Supply 5 VDC ± 5%
  • Directly from the terminal or PC in USB, Wedge and Pen mode, or via an external PG5 power supply in RS232 mode
  • Consumption 150 mA max.

Mechanical Characteristics

  • Dimensions 164 x 77.5 x 63 mm
  • Weight (approx.) 160 g
  • Case Material ABS
  • Cable Length 2 m (6.6 ft) linear

Performance

  • LIght Source Visible red LED
  • Max Resolution 0.10 mm / 4 mils
  • Scan Rate 256 scans/sec
  • Print Contrast Ratio 15% (min)
  • Reading Field 63 mm
  • Reading Distance 0 to 50 mm on EAN 13 code MAG1
  • Readable Bar Codes 2/5 family, Code 39, Code 32, Code CIP 39, Code 128,
  • EAN128, EAN/UPC, ISBN/ISSN, CODABAR, Code 93,
  • ISBT128, MSI, Plessey, Telepen, Delta IBM, Code 11, Code 49, Code 16K, RSS
  • Reading Indicators LED and adjustable tone “beeper”
  • Reading Mode Single or autodiscrimination code

Programming Method

  • Manual Reading special bar codes
  • Automatic (with RS232) S/W commands through the serial port
  • Sm@rtSet™ Windows configuration program

Data Management

  • Data formatting (Header, Teminator, Code ID, Code Length, etc.);
  • Interfaces USB, RS232, Wedge, Pen

Environment

  • Ambient light conditions 30,000 lux max. (contact with code surface)
  • Operating temperature 0 to 55 °C
  • Storage temperature -20 to 70 °C
  • Humidity 90% non condensing
  • Drop Resistance Withstands drops from 1.2 m onto a concrete surface
  • Environmental Protection IP30

Supplied Accessories

The Barcode Scanner comes with:

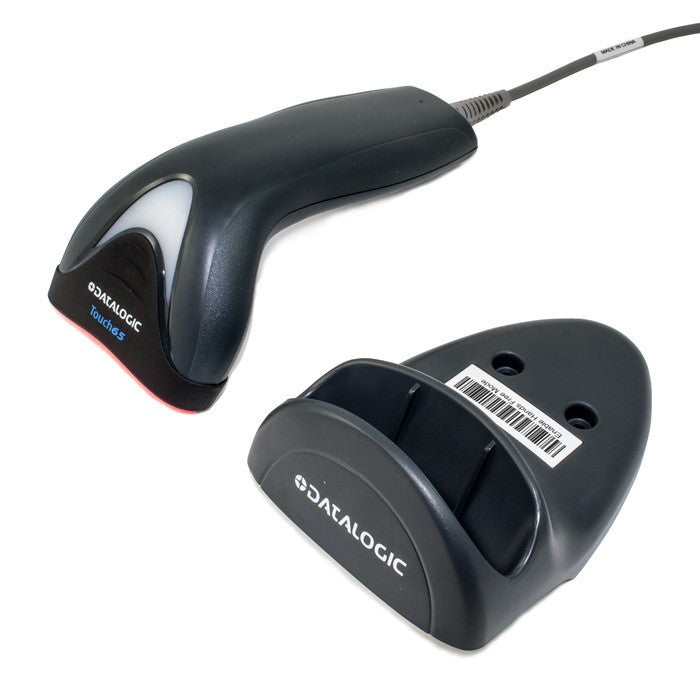

  • Table-mounted holster
  • FREE 1000 Barcode Appliance ID Labels
