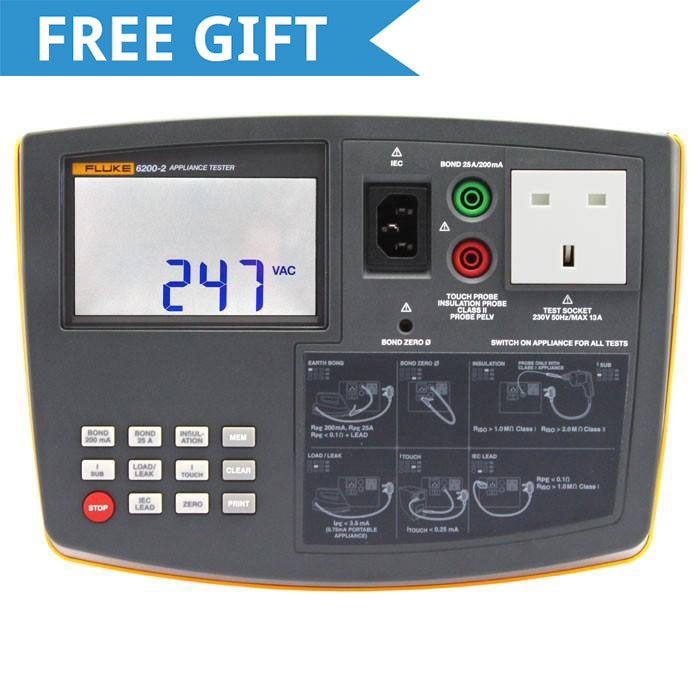

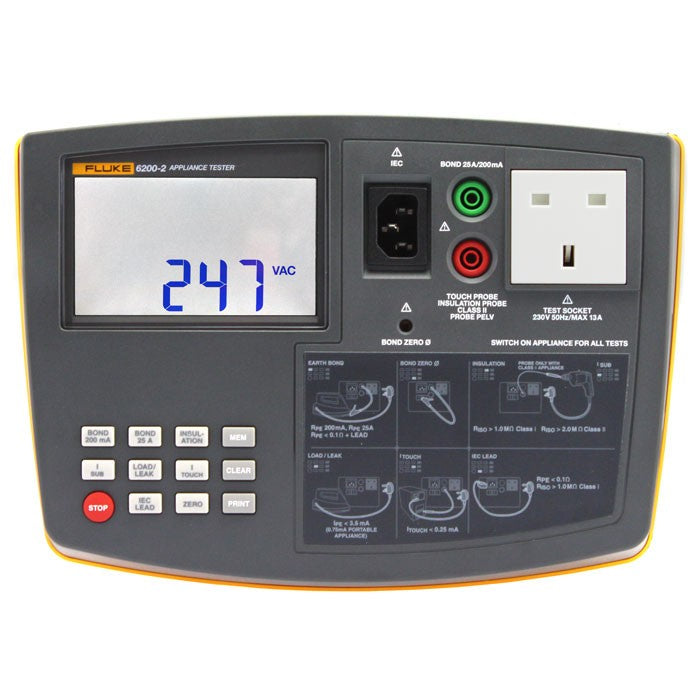

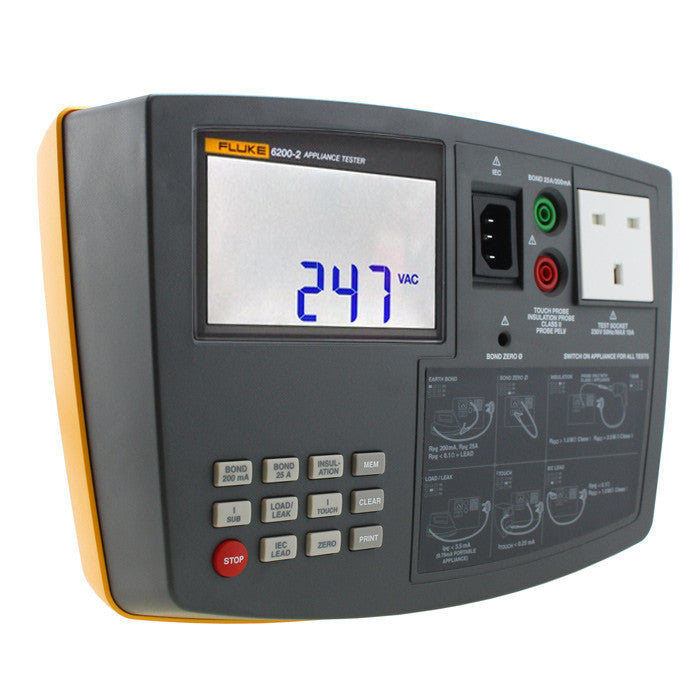

Fluke 6200-2 PAT Tester

  • Individual buttons for each PAT test enable rapid testing
  • A complete PAT tester for 230V appliances and leads
  • PASS/FAIL indication shown on screen according to pre-set limits

£569.00 EXC. VAT

IN STOCK

Description

The Fluke 6200-2 Portable Appliance Tester is the perfect device for verifying the electrical safety and operation of appliances in accordance with IEE regulations. Specifically designed with speed of testing in mind, the Fluke 6200-2 PAT tester is perfect for making short work of testing appliances found in offices and around the home.

With dedicated keys for each test, operation of the Fluke 6200-2 is quick and simple allowing more tests to be carried out in a day. This Fluke PAT tester is suitable for performing all required tests for in service 230V and 240V electrical appliances with test results clearly displayed on the large backlit display.

The Fluke 6200-2 appliance tester is a lightweight and compact machine ideal for in the field PAT testing, complete with its own carry case offering additional space for PAT labels, test leads & adaptors.

Key Features

  • Dedicated test buttons for increased productivity
  • Large backlit display with clear results and outcome
  • Pre-set Pass/Fail limites to save time
  • Rugged design, complete with integral carrying handle

Specification

Power-on Test

  • Display range: 90V to 264V
  • Accuracy at 50Hz: ±(2% +3)
  • Resolution: 1V
  • Input impedance: > 1 MΩ // 2.2nF
  • Maximum inout mains voltage: 264V

Earth Bond Test (Rpe)

  • Display range: 0 to 19.99Ω
  • Accuracy (after bond test zeroing): ±(2.5% + 3)
  • Resolution: 0.01Ω
  • Test current: 200mA AC -0% + 40% into 1.99Ω / 25A AC ±20% into 25mΩ at 230V
  • Open circuit coltage: >4V AC, <24V AC
  • Bond test zeroing: Can subtract up to 1.99Ω

Insulation Test (Riso)

  • Display range: 0 to 299MΩ
  • Accuracy: ±(5% + 2) from 0.1 to 300MΩ
  • Resolution: 0.01MΩ (0 to 19.99MΩ) / 0.1MΩ (20 to 199.9MΩ) / 1MΩ (200 to 299MΩ)
  • Test voltage: 250V DC - 0% +25% at 250kΩ load
  • Test current: >1mA at 500kΩ load, <15mA at 0Ω
  • Auto discharge time: <0.5s for 1µF
  • Max. capacitive load: Operational up to 1µF

Touch Current Test

  • Display range: 0 to 1.99mA AC
  • Accuracy: ±(4% + 2 counts)
  • Resolution: 0.01mA
  • Internal resistance (via probe): 2kΩ
  • Measuring method: Probe

The appliance under test is energised at mains voltage.

Substitute leakage current test

  • Display range: 0 to 19.99mA AC
  • Accuracy: ±(2.5% + 3)
  • Resolution: 0.01mA
  • Test voltage: 100V AC ±20%

Load/Leakage Test: Load Current

  • Display range: 0 to 13A
  • Accuracy: ±(4% + 2)
  • Resolution: 0.1A

The appliance under test is energised at mains voltage.

Load/Leakage Test: Load Power

  • Display range: 230V mains; 0.0VA to 3.2kVA
  • Accuracy: ±(5% + 3)
  • Resolution: 1VA (0 to 999VA, 0.1kVA (>1kVA)

The appliance under test is energised at mains voltage.

Load/Leakage Test: Leakage Current

  • Display range: 0 to 19.99mA
  • Accuracy: ±(4% + 4)
  • Resolution: 0.01mA

The appliance under test is energised at mains voltage.

PELV Test

  • Accuracy at 50Hz: ±(2% + 3)
  • Overload protection: 300V RMS
  • Warning threshold: 25V RMS

Supplied Accessories

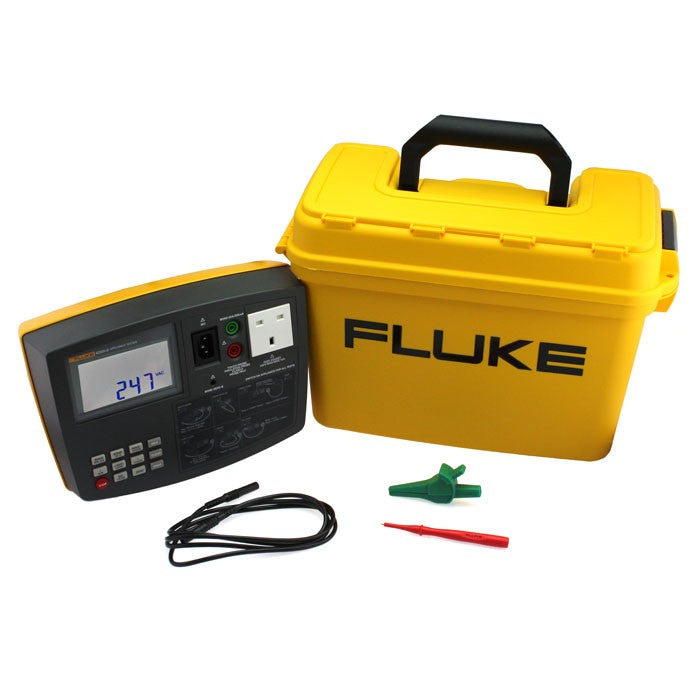

The Fluke 6200-2 comes with:

  • Test lead with probe and crocodile clip
  • Hard carry/storage case
  • Calibration Certificate
  • Instruction Manual
