Fluke 6500-2 PAT Tester Starter Kit

The Fluke 6500-2 PAT Tester is a sophisticated instrument that has the test and measurement functions needed to take on high-volume appliance testing including 250V insulation testing, RCD current and trip testing, and 110V appliance testing (via an adaptor).

A full colour display can show information digitally and graphically and also clearly displays the navigation menus used to set up the tester and manage the results in its large internal memory. A USB port allows data transfer to a PC or to an optional printer.

The Fluke 6500-2 is a very light instrument and can be easily transported from site to site so it ideal for professionals in the appliance testing field.

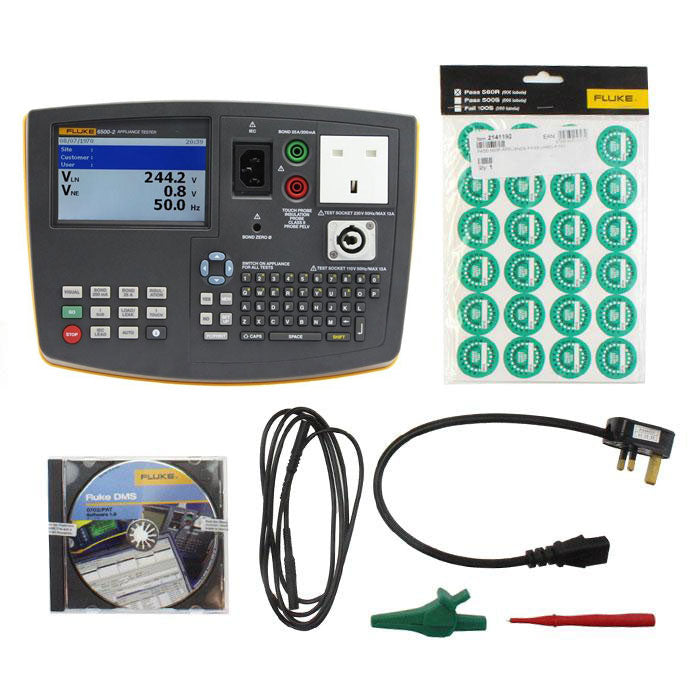

Fluke 6500-2 PAT Starter Kit Includes:

• Fluke 6500-2 PAT Tester
• Instructions for Fluke 6500-2 PAT Tester
• Test leads
• Test probes
• Crocodile clips
• Mains cord
• Storage case
• USB stick
• USB cable
• EXTL100 Extension Lead Adaptor
• Fluke 0702/PAT Software
• Sheet of PASS 560R

For more information on the Fluke 6500-2 Portable Appliance Tester please click here.

Power-on Test

• The test indicates reversed L-N, missing PE, and measures the mains voltage and frequency.
• Display Range : 90 V to 264 V
• Accuracy at 50 Hz: ± (2% + 3 counts)
• Resolution: 0.1 V
• Input Impedance: > 1 MΩ // 2.2 nF
• Maximum Input Mains Voltage: 264 V

Earth Bond Test (Rpe)

• Display Range: 0 to 19.99 Ω
• Accuracy (After Bond Test Zeroing): ± (5% + 4 counts)
• Resolution: 0.01 Ω
• Test Current: 200 mA AC -0% +40% into 1.99 Ω; 25 A AC ± 20% into 25 mΩ at 230 V
• Open Circuit Voltage: > 4 V AC, < 24 V AC
• Bond Test Zeroing: Can subtract up to 1.99 Ω

Insulation Test (Riso)

• Display Range: 0 to 299 MΩ
• Accuracy: ± (5% + 2 counts) from 0.1 to 300 MΩ
• Resolution: 0.01 MΩ (0 to 19.99 MΩ) / 0.1 MΩ (20 to 199.9 MΩ) / 1 MΩ (200 to 299 MΩ)
• Test Voltage: 500 V DC -0% + 25% at 500 kΩ load or 250 V dc -0 % +25 % at 250 kΩ load
• Test Current: > 1 mA at 500 kΩ load, < 15 mA at 0 Ω
• Auto Discharge Time: < 0.5 s for 1 μF
• Max. Capacitive Load: Operational up to 1 μF

Touch Current Test

• Display Range: 0 to 1.99 mA AC
• Accuracy: ± (4% + 2 counts)
• Resolution: 0.01 mA
• Internal Resistance (via Probe): 2 kΩ
• Measuring Method: Probe*

Substitute Leakage Current Test

• Display Range: 0 to 19.99 mA AC
• Accuracy: ± (2.5% + 3 counts)
• Resolution: 0.01 mA
• Test Voltage: 100 V AC ± 20%

Load/Leakage Test: Load Current

• Display Range: 0 A to 13 A
• Accuracy: ± (4% + 2 counts)
• Resolution: 0.1 A*

Load/Leakage Test: Load Power

• Display Range 230 V Mains: 0.0 VA to 3.2 kVA
• Accuracy: ± (5 % + 3 counts)
• Resolution: 1 VA (0 to 999 VA), 0.1 kVA (>1.0 kVA)*

Load/Leakage Test: Leakage Current

• Display Range: 0 to 19.99 mA
• Accuracy: ± (4% + 4 counts)
• Resolution: 0.01 mA*

PELV Test

• Accuracy at 50 Hz: ± (2% + 3 counts)
• Overload Protection: 300 V rms
• Warning Threshold: 25 V rms

RCD Test: Trip Current

• Operational Error: ±10 %
• Nominal: 30 mA
• Accuracy: ±5 %

RCD Test: Trip Time

• Standard Requirement: 61557 Part 6; tolerance of rated test current 0 % to +10 %
• Operational Error: ±10 %
• RCD Type: AC general-purpose 30 mA
• Display Range: 310 ms
• Resolution: 0.1 ms
• Accuracy: 3 ms
• Trip Time Limit at 100 % (30 mA): 300 ms
• Trip Time Limit at 500 % (150 mA): 40 ms

*The appliance under test is energised at mains voltage.

Environmental

• Operating Temperature: 0 to 40 °C
• Relative Humidity: Non condensing < 10 °C / 95% from 10 to 30 °C / 75% from 30 to 40 °C

Safety

• Safety Rating: Complies with EN61010-1 3rd edition / CAT II, 300 V, pol 2

General

• Size: 200 mm (L) x 275 mm (W) x 114 mm (H)
• Weight: 3.13 kg
• Power Supply: 230 V +10 % -15 %, 50 Hz ±2 Hz or (6500-2 only: 110V +10 % -15 %,50 Hz ±2 Hz)
• Power Consumption (Tester): 13 W typical (idle) / 60 W max. during 25A Bond test
• Storage Temperature: -10 to 60 °C
• Corrosion: 70 °C @ 95 % RH for 5 days max.
• Operating Altitude: 0 up to 2000 m
• Sealing: IP-40 (enclosure), IP-20 (connectors)
• EMC: Complies with EN61326-1, portable
• EMI Immunity: 3 V/m
