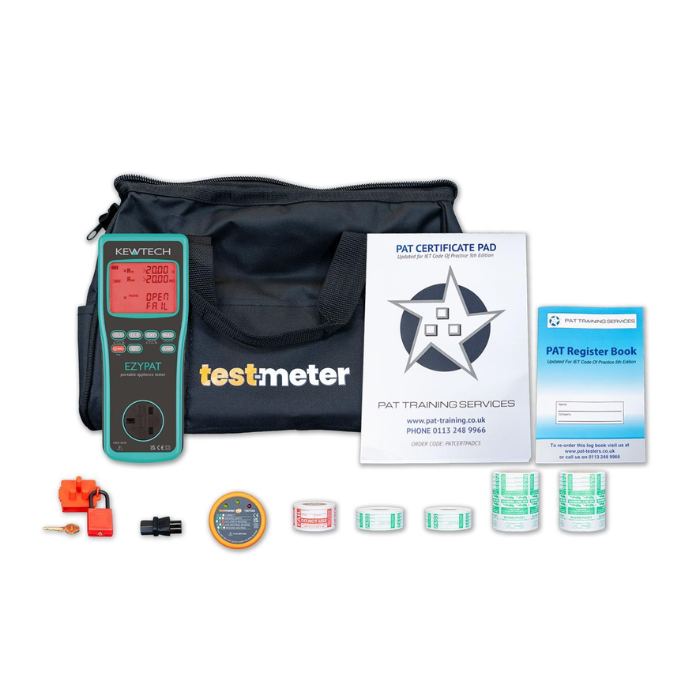

Kewtech EZYPAT Landlords PAT Testing Kit

The Kewtech EZYPAT Landlords PAT Testing Kit is a practical choice for landlords, letting agents and property managers who need to carry out routine appliance testing across rental properties. It combines the easy-to-use, battery-powered Kewtech EZYPAT tester with the accessories needed to test, record and identify appliances. Automatic test sequences for Class I appliances, Class II appliances and extension leads, together with clear PASS/FAIL indications and red and green visual alerts, make routine testing straightforward.

The EZYPAT performs earth bond continuity, insulation resistance, substitute leakage current and extension lead polarity tests, with 250V and 500V insulation test voltages providing flexibility when testing modern and surge-protected equipment. The kit also includes a Test Meter PRO socket tester for checking socket wiring before testing, an IEC cloverleaf adaptor for equipment such as laptop power supplies, and a PL13 230V 13A plug lockout and padlock for isolating failed appliances from use until they can be repaired or replaced.

For record keeping, the kit includes a PAT Register Book, PAT Certificate Pad and pass, wrap-around and fail labels for documenting results and identifying tested appliances. Everything is supplied in a durable Test-Meter kit bag, making it easy to organise and transport between properties.

PAT Testing Kit Comparison Guide

• Earth bond continuity testing with 200mA test current
• Quick and 5-second continuity testing
• Insulation resistance testing at 250V and 500V
• Substitute leakage current measurement
• Test lead resistance compensation
• Automatic test sequences for Class I, Class II and extension leads
• Clear backlit LCD display
• Instant PASS/FAIL indication with red and green visual alerts
• Compact battery-powered operation
• Supplied with documentation, adaptors, labels and carry bag

Protective Conductor Resistance

• Measuring range: 0.00 - 20.00 Ω (NULL value inc)*
• Over-range indication: > 20.00 Ω
• Resolution: 0.01Ω
• Open-circuit voltage: 5 V ±0.4 V DC
• Measuring current: 200 mA DC (nominal value)
• Accuracy: ±3%rdg ±5dgt

Mains Voltage

• Display range: 30 - 270 V
• Hi/ Lo indication: < 30 V: No voltage indication; > 270 V: 270 V
• Resolution & Accuracy: 1 V & ±3%rdg ±5dgt

Insulation

• Rated voltage: 250V; 500V
• Measuring range: 0.00 - 20.00 MΩ
• Over-range indication: > 20.00 MΩ
• Resolution: 0.01 MΩ
• No-load voltage: 250 V DC +20%, -0% 500 V DC +20%, -0%
• Short-circuit current: 1.5 mA DC or less
• Rated current: 1 -1.2 mA with a load of 0.25 MΩ 1 to 1.2 mA with a load of 0.5 MΩ
• Accuracy: ±2%rdg±3dgt

Substitute Leakage

• Measuring range: 0.10 - 12.00 mA rms
• Over-range indication: > 12.00 mA
• Resolution: 0.01mA
• Open-circuit voltage/ Freq.: 30 V ±5 V rms / 50 Hz ±5%
• Measuring current: 1.2 mA AC ±0.5 mA (when measuring 12.00 mA)
• Accuracy: ±3%rdg±5dgt

Insulation Test between L and N

• Open-circuit voltage: 4.5 V ±0.5 V DC
• Criteria of judgement: 100 kΩ ±20 kΩ or less: LCD shows “<0.10 MΩ” and the measurement is halted.

Run Leakage (Item: Load current / Leakage current)

• Mains voltage range: 100 - 253 V / 50 Hz
• Measuring range: 0.10 - 13.00 A rms / 0.10 - 20.00 mA rms
• Display range: 0.00 - 13.00 A / 0.00 - 20.00 mA
• Over-range indication: > 13.00 A / > 20.00 mA
• Resolution: 0.01A / 0.01mA
• Accuracy: ±10%rdg ±5dgt / ±3%rdg ±5dvgt
• rating: 3 kVA max., 15 sec. cont. / -

• Kewtech EZYPAT Plus PAT Tester
• Test-Meter Kit Bag
• PAT Register Book
• PAT Certificate Pad
• Test Meter PRO TMP989 230V 13A Socket Tester
• IEC Adaptor Kit
• 2x 500 Pass labels
• 250 Pass Wrap labels
• 200 Fail labels
