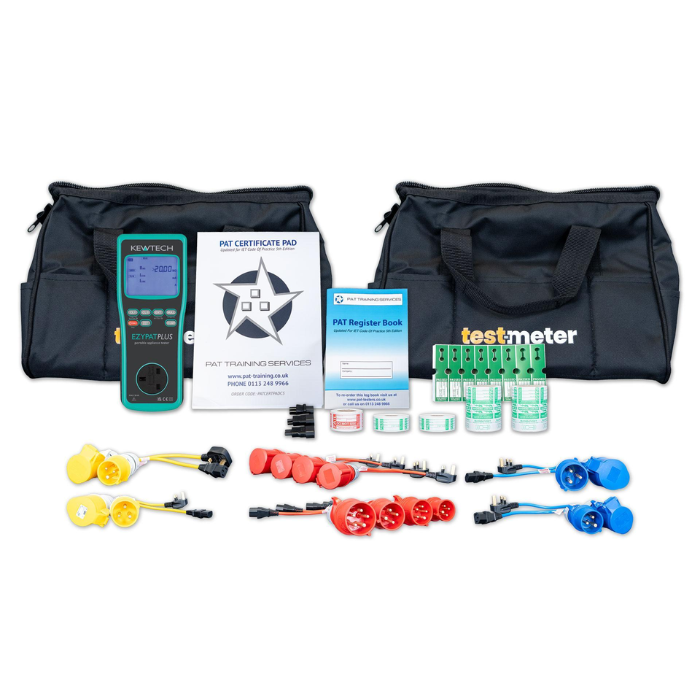

Kewtech EZYPAT Plus Industrial PAT Testing Kit

The Kewtech EZYPAT Plus Industrial PAT Testing Kit is designed for electrical professionals who need to test a wide range of equipment across industrial facilities, workshops, warehouses and construction sites. The battery-powered EZYPAT Plus performs essential PAT tests as well as 230V and 110V load and run testing when connected to a suitable supply, allowing appliances and power tools to be assessed under operating conditions. Its portable design is useful when testing equipment in areas where access to a mains supply is limited.

The tester performs earth continuity, insulation resistance, substitute leakage and extension lead polarity tests, with a 200mA continuity test current suitable for sensitive electronic equipment. Selectable 250V and 500V insulation test voltages provide flexibility when testing standard and surge-protected appliances, while automatic Class I, Class II and extension lead test routines simplify operation. Results are clearly displayed on the large backlit LCD with PASS/FAIL indications, and the built-in null function compensates for test lead resistance. A single set of batteries supports up to approximately 1,500 tests. The EZYPAT Plus is manually compatible with the KEWPAT App for storing test information and generating reports.

PAT Testing Kit Comparison Guide

• Earth bond continuity test
• Insulation resistance test (250V & 500V)
• Battery powered
• 110V & 230V load and run testing
• Backlit LCD display with red/green indication
• Automatic test sequences
• Class I, Class II, extension leads

Protective Conductor Resistance

• Measuring range: 0.00 - 20.00 Ω (NULL value inc)*
• Over-range indication: > 20.00 Ω
• Resolution: 0.01Ω
• Open-circuit voltage: 5 V ±0.4 V DC
• Measuring current: 200 mA DC (nominal value)
• Accuracy: ±3%rdg ±5dgt

Mains Voltage

• Display range: 30 - 270 V
• Hi/ Lo indication: < 30 V: No voltage indication; > 270 V: 270 V
• Resolution & Accuracy: 1 V & ±3%rdg ±5dgt

Insulation

• Rated voltage: 250V; 500V
• Measuring range: 0.00 - 20.00 MΩ
• Over-range indication: > 20.00 MΩ
• Resolution: 0.01 MΩ
• No-load voltage: 250 V DC +20%, -0% 500 V DC +20%, -0%
• Short-circuit current: 1.5 mA DC or less
• Rated current: 1 -1.2 mA with a load of 0.25 MΩ 1 to 1.2 mA with a load of 0.5 MΩ
• Accuracy: ±2%rdg±3dgt

Substitute Leakage

• Measuring range: 0.10 - 12.00 mA rms
• Over-range indication: > 12.00 mA
• Resolution: 0.01mA
• Open-circuit voltage/ Freq.: 30 V ±5 V rms / 50 Hz ±5%
• Measuring current: 1.2 mA AC ±0.5 mA (when measuring 12.00 mA)
• Accuracy: ±3%rdg±5dgt

Insulation Test between L and N

• Open-circuit voltage: 4.5 V ±0.5 V DC
• Criteria of judgement: 100 kΩ ±20 kΩ or less: LCD shows “<0.10 MΩ” and the measurement is halted.

Run Leakage (Item: Load current / Leakage current)

• Mains voltage range: 100 - 253 V / 50 Hz
• Measuring range: 0.10 - 13.00 A rms / 0.10 - 20.00 mA rms
• Display range: 0.00 - 13.00 A / 0.00 - 20.00 mA
• Over-range indication: > 13.00 A / > 20.00 mA
• Resolution: 0.01A / 0.01mA
• Accuracy: ±10%rdg ±5dgt / ±3%rdg ±5dvgt
• rating: 3 kVA max., 15 sec. cont. / -

• Kewtech EZYPAT Plus PAT Tester
• Test-Meter Kit Bag
• PAT Register Book
• PAT Certificate Pad
• IEC Adaptor Kit
• 2x 500 Pass labels
• 2x 250 Pass Wrap labels
• 200 Fail labels
• 250 Tuff Tag Cable Wrap Labels
• 16A 110V Appliance Adaptor and Extension Lead Adaptor
• PL13 230V 13A Plug Lockout & Padlock
• 16A 230V Appliance Adaptor and Extension Lead Adaptor
