Kewtech EZYPAT Plus Kit A

  • Battery-powered tester with numerous capabilities including load and run testing
  • PAT labels included for both appliances and extension leads
  • Microwave leakage detector and socket tester included

£449.00 EXC. VAT

IN STOCK

Description

Kewtech EZYPAT Plus Kit A features the Kewtech EZYPAT Plus PAT Tester as its main instrument. This PAT tester is capable of earth bond testing, insulation testing, polarity checking and substitute leakage measurement as well as 230V load & run testing. There are automatic test sequences for Class I and Class II appliances and IEC/extension leads. There is a clear digital screen that shows real readings alongside PASS/FAIL indications and operation is very simple thanks to easy push buttons.

There are several accessories contained within Kewtech EZYPAT Plus Kit A including PAT labels, a PAT certificate pad, a PAT register book, an IEC clover leaf adaptor, a microwave leakage detector and a socket tester. The set is therefore ideal for testing the majority of appliances and extension leads that are found in offices.

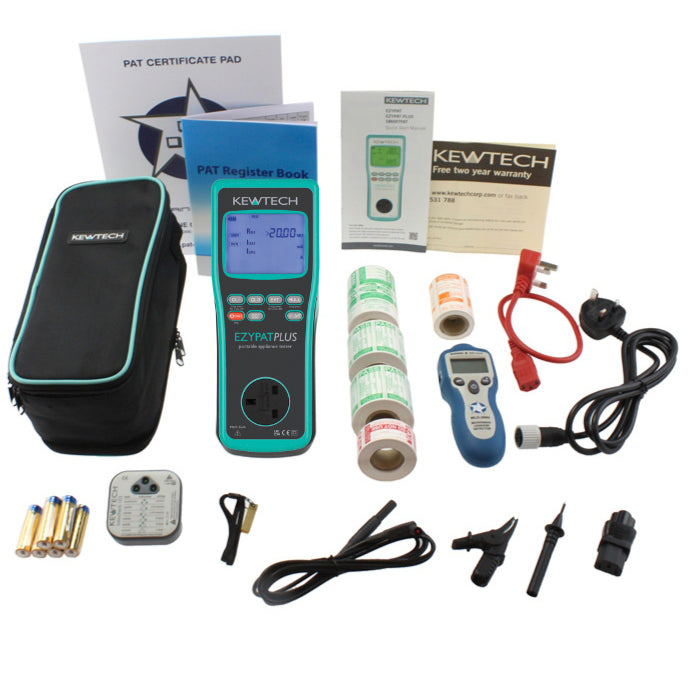

Kit Contents

  • Kewtech EZYPAT Plus PAT Tester
  • 2 x PASS labels
  • Fail labels
  • PassWrap labels
  • PAT certificate pad
  • PAT register book
  • IEC clover leaf adaptor
  • Microwave leakage detector
  • Microwave labels
  • Kewtech KT103 Socket Tester
  Kit A Kit B Kit C
Kewtech EZYPAT Plus PAT Tester
PASS labels x2 x2 x2
FAIL labels
PassWrap labels
Tuff Tag Pass Labels
PAT certificate pad
PAT registerbook x1 x1 x2
IEC clover leaf adaptor
IEC adaptor kit
110V appliance adaptor
110V extension lead adaptor
110V power adaptor
Kewtech KT103 Socket Tester
Microwave leakage detector
Microwave emission labels
Kewtech KITBAG2 carry case

Specification

Protective Conductor Resistance

  • Measuring range: 0.00 - 20.00 Ω (NULL value inc)*
  • Over-range indication: > 20.00 Ω
  • Resolution: 0.01Ω
  • Open-circuit voltage: 5 V ±0.4 V DC
  • Measuring current: 200 mA DC (nominal value)
  • Accuracy: ±3%rdg ±5dgt

Mains Voltage

  • Display range: 30 - 270 V
  • Hi/ Lo indication: < 30 V: No voltage indication; > 270 V: 270 V
  • Resolution & Accuracy: 1 V & ±3%rdg ±5dgt

Insulation

  • Rated voltage: 250V; 500V
  • Measuring range: 0.00 - 20.00 MΩ
  • Over-range indication: > 20.00 MΩ
  • Resolution: 0.01 MΩ
  • No-load voltage: 250 V DC +20%, -0% 500 V DC +20%, -0%
  • Short-circuit current: 1.5 mA DC or less
  • Rated current: 1 -1.2 mA with a load of 0.25 MΩ 1 to 1.2 mA with a load of 0.5 MΩ
  • Accuracy: ±2%rdg±3dgt

Substitute Leakage

  • Measuring range: 0.10 - 12.00 mA rms
  • Over-range indication: > 12.00 mA
  • Resolution: 0.01mA
  • Open-circuit voltage/ Freq.: 30 V ±5 V rms / 50 Hz ±5%
  • Measuring current: 1.2 mA AC ±0.5 mA (when measuring 12.00 mA)
  • Accuracy: ±3%rdg±5dgt

Insulation Test between L and N

  • Open-circuit voltage: 4.5 V ±0.5 V DC
  • Criteria of judgement: 100 kΩ ±20 kΩ or less: LCD shows “<0.10 MΩ” and the measurement is halted.

Run Leakage (Item: Load current / Leakage current)

  • Mains voltage range: 100 - 253 V / 50 Hz
  • Measuring range: 0.10 - 13.00 A rms / 0.10 - 20.00 mA rms
  • Display range: 0.00 - 13.00 A / 0.00 - 20.00 mA
  • Over-range indication: > 13.00 A / > 20.00 mA
  • Resolution: 0.01A / 0.01mA
  • Accuracy: ±10%rdg ±5dgt / ±3%rdg ±5dvgt
  • Max. rating: 3 kVA max., 15 sec. cont. / -

Supplied Accessories

  • Kewtech EZYPAT Plus PAT Tester
  • 2 x PASS labels
  • Fail labels
  • PassWrap labels
  • PAT certificate pad
  • PAT register book
  • IEC clover leaf adaptor
  • Microwave leakage detector
  • Microwave labels
  • Kewtech KT103 Socket Tester
