Kewtech EZYPAT Plus Kit B

  • Kewtech EZYPAT Plus tester is battery-powered tester that can perform 230V load & run testing
  • 110V adaptors allow powered PAT tests on construction appliances and leads
  • Full set of PAT labels included for indoor and outdoor equipment and appliances

£479.00 EXC. VAT

IN STOCK

Description

Kewtech EZYPAT Plus Kit B is a great option for PAT testing on office appliances and 110V construction equipment, featuring the Kewtech EZYPAT Plus PAT Tester as its main instrument. Testing options include earth bond testing, insulation resistance testing, polarity checking, and substitute leakage measurement which are organised into automatic test sequences for Class I/II appliances and IEC/extension leads. It can also possible perform 230V load & run testing despite being a battery-powered tester and is controlled through clearly-labelled buttons. Results are shown on screen alongside a PASS/FAIL indication.

Kewtech EZYPAT Plus Kit B includes a full set of adaptors which increases the scope of the tester beyond 230V equipment. There is a 110V appliance adaptor, 110V extension lead adaptor and 110V powered testing adaptor as well as an IEC adaptor set, thus enabling testing on construction and IT equipment. PAT labels are included for indoor and outdoor equipment and a register book and certificate pad are also provided in addition to a socket tester and a carry case.

For more information on the Kewtech EZYPAT Plus PAT tester, please click here.

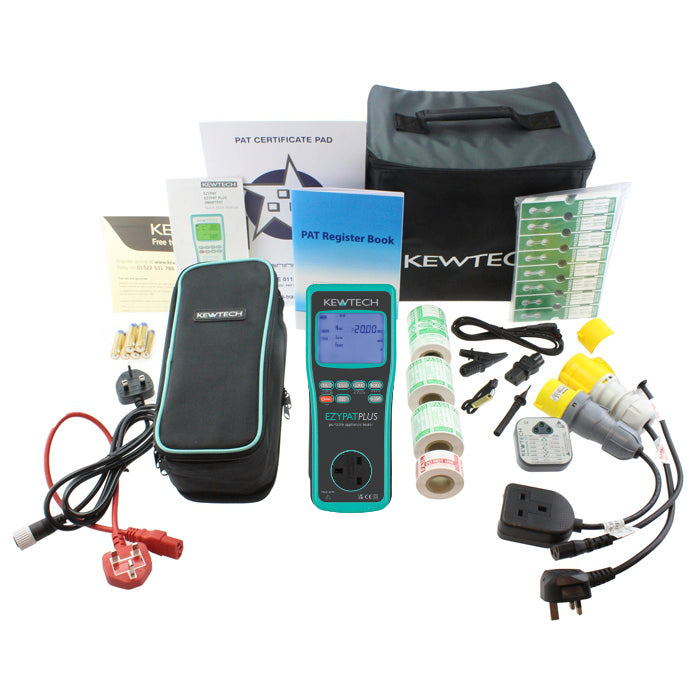

Kit Contents

  • Kewtech EZYPAT Plus PAT Tester
  • 2 x Pass labels
  • Fail labels
  • PassWrap labels
  • PAT certificate pad
  • PAT register book
  • IEC adaptor kit
  • 110V appliance adaptor
  • 110V extension lead adaptor
  • 110V power adaptor
  • Tuff Tag Pass labels
  • Kewtech KT103 socket tester
  • Kewtech KITBAG2 carry case
  Kit A Kit B Kit C
Kewtech EZYPAT Plus PAT Tester
PASS labels x2 x2 x2
FAIL labels
PassWrap labels
Tuff Tag Pass Labels
PAT certificate pad
PAT registerbook x1 x1 x2
IEC clover leaf adaptor
IEC adaptor kit
110V appliance adaptor
110V extension lead adaptor
110V power adaptor
Kewtech KT103 Socket Tester
Microwave leakage detector
Microwave emission labels
Kewtech KITBAG2 carry case

Specification

Protective Conductor Resistance

  • Measuring range: 0.00 - 20.00 Ω (NULL value inc)*
  • Over-range indication: > 20.00 Ω
  • Resolution: 0.01Ω
  • Open-circuit voltage: 5 V ±0.4 V DC
  • Measuring current: 200 mA DC (nominal value)
  • Accuracy: ±3%rdg ±5dgt

Mains Voltage

  • Display range: 30 - 270 V
  • Hi/ Lo indication: < 30 V: No voltage indication; > 270 V: 270 V
  • Resolution & Accuracy: 1 V & ±3%rdg ±5dgt

Insulation

  • Rated voltage: 250V; 500V
  • Measuring range: 0.00 - 20.00 MΩ
  • Over-range indication: > 20.00 MΩ
  • Resolution: 0.01 MΩ
  • No-load voltage: 250 V DC +20%, -0% 500 V DC +20%, -0%
  • Short-circuit current: 1.5 mA DC or less
  • Rated current: 1 -1.2 mA with a load of 0.25 MΩ 1 to 1.2 mA with a load of 0.5 MΩ
  • Accuracy: ±2%rdg±3dgt

Substitute Leakage

  • Measuring range: 0.10 - 12.00 mA rms
  • Over-range indication: > 12.00 mA
  • Resolution: 0.01mA
  • Open-circuit voltage/ Freq.: 30 V ±5 V rms / 50 Hz ±5%
  • Measuring current: 1.2 mA AC ±0.5 mA (when measuring 12.00 mA)
  • Accuracy: ±3%rdg±5dgt

Insulation Test between L and N

  • Open-circuit voltage: 4.5 V ±0.5 V DC
  • Criteria of judgement: 100 kΩ ±20 kΩ or less: LCD shows “<0.10 MΩ” and the measurement is halted.

Run Leakage (Item: Load current / Leakage current)

  • Mains voltage range: 100 - 253 V / 50 Hz
  • Measuring range: 0.10 - 13.00 A rms / 0.10 - 20.00 mA rms
  • Display range: 0.00 - 13.00 A / 0.00 - 20.00 mA
  • Over-range indication: > 13.00 A / > 20.00 mA
  • Resolution: 0.01A / 0.01mA
  • Accuracy: ±10%rdg ±5dgt / ±3%rdg ±5dvgt
  • Max. rating: 3 kVA max., 15 sec. cont. / -

Supplied Accessories

  • Kewtech EZYPAT Plus PAT Tester
  • 2 x Pass labels
  • Fail labels
  • PassWrap labels
  • PAT certificate pad
  • PAT register book
  • IEC adaptor kit
  • 110V appliance adaptor
  • 110V extension lead adaptor
  • 110V power adaptor
  • Tuff Tag Pass labels
  • Kewtech KT103 socket tester
  • Kewtech KITBAG2 carry case
