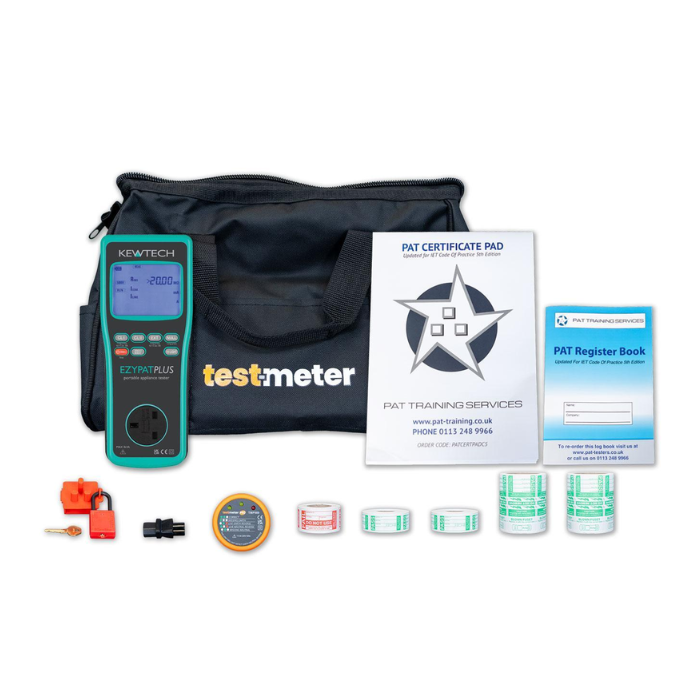

Kewtech EZYPAT Plus Landlords PAT Testing Kit

The Kewtech EZYPAT Plus Landlords PAT Testing Kit is a practical solution for landlords and features a battery-powered EZYPAT Plus that performs load and run testing at 230V and 110V when connected to a suitable supply. With a portable design, the tester allows testing throughout a property without relying on a permanent mains connection. Automatic test sequences for Class I appliances, Class II appliances and extension leads help make inspections straightforward and consistent.

The tester performs earth continuity, insulation resistance, substitute leakage and extension lead polarity tests, with a 200mA continuity test current suitable for testing IT equipment. Selectable 250V and 500V insulation test voltages provide flexibility when testing surge-protected devices and extension leads, while the null function compensates for test lead resistance to improve measurement accuracy. A backlit LCD with clear PASS/FAIL indications and colour-coded screen illumination makes results easy to interpret, and the tester can perform approximately 1,400–1,500 tests from a single set of batteries.

The kit includes a PAT Register Book, PAT Certificate Pad, pass, wrap and fail labels, and an IEC Cloverleaf Adaptor for equipment such as laptops and office equipment. The Test Meter PRO TMP989 Socket Tester provides a quick way to check 13A socket wiring before appliance testing, while the PL13 Plug Lockout and Padlock can be used to isolate faulty appliances from use until repairs are completed. Everything is supplied in a durable Test-Meter Kit Bag, and compatibility with the KEWPAT App allows test information to be stored and reports generated digitally.

PAT Testing Kit Comparison Guide

• Earth bond continuity test
• Insulation resistance test (250V & 500V)
• Battery powered
• 110V & 230V load and run testing
• Backlit LCD display with red/green indication
• Automatic test sequences
• Class I, Class II, extension leads

Protective Conductor Resistance

• Measuring range: 0.00 - 20.00 Ω (NULL value inc)*
• Over-range indication: > 20.00 Ω
• Resolution: 0.01Ω
• Open-circuit voltage: 5 V ±0.4 V DC
• Measuring current: 200 mA DC (nominal value)
• Accuracy: ±3%rdg ±5dgt

Mains Voltage

• Display range: 30 - 270 V
• Hi/ Lo indication: < 30 V: No voltage indication; > 270 V: 270 V
• Resolution & Accuracy: 1 V & ±3%rdg ±5dgt

Insulation

• Rated voltage: 250V; 500V
• Measuring range: 0.00 - 20.00 MΩ
• Over-range indication: > 20.00 MΩ
• Resolution: 0.01 MΩ
• No-load voltage: 250 V DC +20%, -0% 500 V DC +20%, -0%
• Short-circuit current: 1.5 mA DC or less
• Rated current: 1 -1.2 mA with a load of 0.25 MΩ 1 to 1.2 mA with a load of 0.5 MΩ
• Accuracy: ±2%rdg±3dgt

Substitute Leakage

• Measuring range: 0.10 - 12.00 mA rms
• Over-range indication: > 12.00 mA
• Resolution: 0.01mA
• Open-circuit voltage/ Freq.: 30 V ±5 V rms / 50 Hz ±5%
• Measuring current: 1.2 mA AC ±0.5 mA (when measuring 12.00 mA)
• Accuracy: ±3%rdg±5dgt

Insulation Test between L and N

• Open-circuit voltage: 4.5 V ±0.5 V DC
• Criteria of judgement: 100 kΩ ±20 kΩ or less: LCD shows “<0.10 MΩ” and the measurement is halted.

Run Leakage (Item: Load current / Leakage current)

• Mains voltage range: 100 - 253 V / 50 Hz
• Measuring range: 0.10 - 13.00 A rms / 0.10 - 20.00 mA rms
• Display range: 0.00 - 13.00 A / 0.00 - 20.00 mA
• Over-range indication: > 13.00 A / > 20.00 mA
• Resolution: 0.01A / 0.01mA
• Accuracy: ±10%rdg ±5dgt / ±3%rdg ±5dvgt
• rating: 3 kVA max., 15 sec. cont. / -

• Kewtech EZYPAT Plus PAT Tester
• Test-Meter Kit Bag
• PAT Register Book
• PAT Certificate Pad
• Test Meter PRO TMP989 230V 13A Socket Tester
• IEC Cloverleaf Adaptor
• 2 x 500 Pass labels
• 2x 250 Pass Wrap labels
• 200 Fail labels
• PL13 230V 13A Plug Lockout & Padlock
