Kewtech EZYPAT Plus Maintenance PAT Testing Kit

The Kewtech EZYPAT Plus Maintenance PAT Testing Kit is a practical choice for maintenance engineers, facilities teams and contractors carrying out routine appliance testing in commercial buildings, schools, healthcare facilities, workshops and industrial environments. At its centre is the compact, battery-powered EZYPAT Plus, which can perform load and run testing at 230V and 110V when connected to a suitable supply. This allows appliances to be tested under operating conditions, helping identify issues that may not be apparent during standard electrical tests, while the cordless design makes it easier to work in areas with limited mains access.

The EZYPAT Plus performs earth continuity, insulation resistance, substitute leakage and extension lead polarity tests, with a 200mA continuity test current suitable for sensitive IT equipment. Selectable 250V and 500V insulation test voltages provide flexibility when testing standard and surge-protected equipment, while automatic Class I, Class II and extension lead test routines help simplify testing across different asset types.

A large backlit LCD with colour-coded PASS/FAIL indications makes results easy to interpret, and the built-in null function compensates for test lead resistance. The tester can perform up to approximately 1,500 tests from a single set of batteries. The EZYPAT Plus compatible with the KEWPAT App, allowing test information to be stored and reports generated for easier asset management and compliance documentation.

PAT Testing Kit Comparison Guide

• Earth bond continuity test
• Insulation resistance test (250V & 500V)
• Battery powered
• 110V & 230V load and run testing
• Backlit LCD display with red/green indication
• Automatic test sequences
• Class I, Class II, extension leads

Protective Conductor Resistance

• Measuring range: 0.00 - 20.00 Ω (NULL value inc)*
• Over-range indication: > 20.00 Ω
• Resolution: 0.01Ω
• Open-circuit voltage: 5 V ±0.4 V DC
• Measuring current: 200 mA DC (nominal value)
• Accuracy: ±3%rdg ±5dgt

Mains Voltage

• Display range: 30 - 270 V
• Hi/ Lo indication: < 30 V: No voltage indication; > 270 V: 270 V
• Resolution & Accuracy: 1 V & ±3%rdg ±5dgt

Insulation

• Rated voltage: 250V; 500V
• Measuring range: 0.00 - 20.00 MΩ
• Over-range indication: > 20.00 MΩ
• Resolution: 0.01 MΩ
• No-load voltage: 250 V DC +20%, -0% 500 V DC +20%, -0%
• Short-circuit current: 1.5 mA DC or less
• Rated current: 1 -1.2 mA with a load of 0.25 MΩ 1 to 1.2 mA with a load of 0.5 MΩ
• Accuracy: ±2%rdg±3dgt

Substitute Leakage

• Measuring range: 0.10 - 12.00 mA rms
• Over-range indication: > 12.00 mA
• Resolution: 0.01mA
• Open-circuit voltage/ Freq.: 30 V ±5 V rms / 50 Hz ±5%
• Measuring current: 1.2 mA AC ±0.5 mA (when measuring 12.00 mA)
• Accuracy: ±3%rdg±5dgt

Insulation Test between L and N

• Open-circuit voltage: 4.5 V ±0.5 V DC
• Criteria of judgement: 100 kΩ ±20 kΩ or less: LCD shows “<0.10 MΩ” and the measurement is halted.

Run Leakage (Item: Load current / Leakage current)

• Mains voltage range: 100 - 253 V / 50 Hz
• Measuring range: 0.10 - 13.00 A rms / 0.10 - 20.00 mA rms
• Display range: 0.00 - 13.00 A / 0.00 - 20.00 mA
• Over-range indication: > 13.00 A / > 20.00 mA
• Resolution: 0.01A / 0.01mA
• Accuracy: ±10%rdg ±5dgt / ±3%rdg ±5dvgt
• rating: 3 kVA max., 15 sec. cont. / -

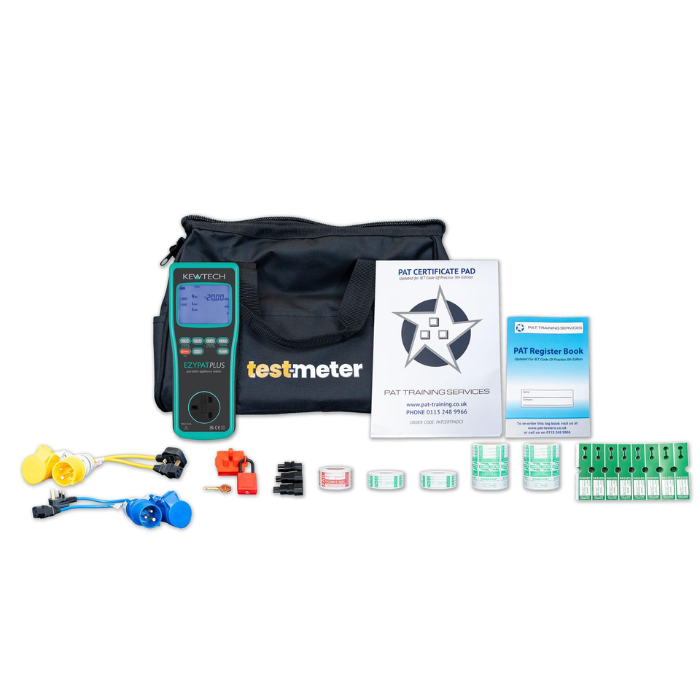

• Kewtech EZYPAT Plus PAT Tester
• Test-Meter Kit Bag
• PAT Register Book
• PAT Certificate Pad
• IEC Adaptor Kit
• 2x 500 Pass labels
• 2x 250 Pass Wrap labels
• 200 Fail labels
• 250 Tuff Tag Cable Wrap Labels
• 16A 110V Appliance Adaptor and Extension Lead Adaptor
• PL13 230V 13A Plug Lockout & Padlock
• 16A 230V Appliance Adaptor and Extension Lead Adaptor
