Kewtech EZYPAT Plus Small Business PAT Testing Kit

The Kewtech EZYPAT Plus Small Business PAT Testing Kit includes the lightweight, battery-powered EZYPAT Plus that uses standard AA batteries. It can perform both 110V and 230V load and run testing when connected to a suitable power supply, making it suitable for testing a range of equipment including office appliances, kitchen equipment and handheld power tools. Automatic test sequences for Class I appliances, Class II appliances and extension leads help simplify routine testing, while the colour-coded backlit display and clear PASS/FAIL indications make results easy to interpret.

The EZYPAT Plus performs earth continuity at 200mA, insulation resistance, polarity, substitute leakage and run leakage tests, with 250V and 500V insulation test voltages providing flexibility when testing sensitive or surge-protected equipment. The kit also includes an IEC adaptor kit and socket tester for checking a wider range of equipment and verifying socket wiring before testing. A PAT Register Book, PAT Certificate Pad and pass, wrap and fail labels are included to help maintain testing records and clearly identify appliances throughout their inspection cycle.

Everything is supplied in a durable Test-Meter kit bag for convenient storage and transport between sites. The EZYPAT Plus can perform approximately 1,400–1,500 tests from one set of batteries and is compatible with the KEWPAT App, allowing users to manually record, store and report test results digitally for easier record keeping and traceability.

PAT Testing Kit Comparison Guide

• Earth bond continuity test
• Insulation resistance test (250V & 500V)
• Battery powered
• 110V & 230V load and run testing
• Backlit LCD display with red/green indication
• Automatic test sequences
• Class I, Class II, extension leads

Protective Conductor Resistance

• Measuring range: 0.00 - 20.00 Ω (NULL value inc)*
• Over-range indication: > 20.00 Ω
• Resolution: 0.01Ω
• Open-circuit voltage: 5 V ±0.4 V DC
• Measuring current: 200 mA DC (nominal value)
• Accuracy: ±3%rdg ±5dgt

Mains Voltage

• Display range: 30 - 270 V
• Hi/ Lo indication: < 30 V: No voltage indication; > 270 V: 270 V
• Resolution & Accuracy: 1 V & ±3%rdg ±5dgt

Insulation

• Rated voltage: 250V; 500V
• Measuring range: 0.00 - 20.00 MΩ
• Over-range indication: > 20.00 MΩ
• Resolution: 0.01 MΩ
• No-load voltage: 250 V DC +20%, -0% 500 V DC +20%, -0%
• Short-circuit current: 1.5 mA DC or less
• Rated current: 1 -1.2 mA with a load of 0.25 MΩ 1 to 1.2 mA with a load of 0.5 MΩ
• Accuracy: ±2%rdg±3dgt

Substitute Leakage

• Measuring range: 0.10 - 12.00 mA rms
• Over-range indication: > 12.00 mA
• Resolution: 0.01mA
• Open-circuit voltage/ Freq.: 30 V ±5 V rms / 50 Hz ±5%
• Measuring current: 1.2 mA AC ±0.5 mA (when measuring 12.00 mA)
• Accuracy: ±3%rdg±5dgt

Insulation Test between L and N

• Open-circuit voltage: 4.5 V ±0.5 V DC
• Criteria of judgement: 100 kΩ ±20 kΩ or less: LCD shows “<0.10 MΩ” and the measurement is halted.

Run Leakage (Item: Load current / Leakage current)

• Mains voltage range: 100 - 253 V / 50 Hz
• Measuring range: 0.10 - 13.00 A rms / 0.10 - 20.00 mA rms
• Display range: 0.00 - 13.00 A / 0.00 - 20.00 mA
• Over-range indication: > 13.00 A / > 20.00 mA
• Resolution: 0.01A / 0.01mA
• Accuracy: ±10%rdg ±5dgt / ±3%rdg ±5dvgt
• rating: 3 kVA max., 15 sec. cont. / -

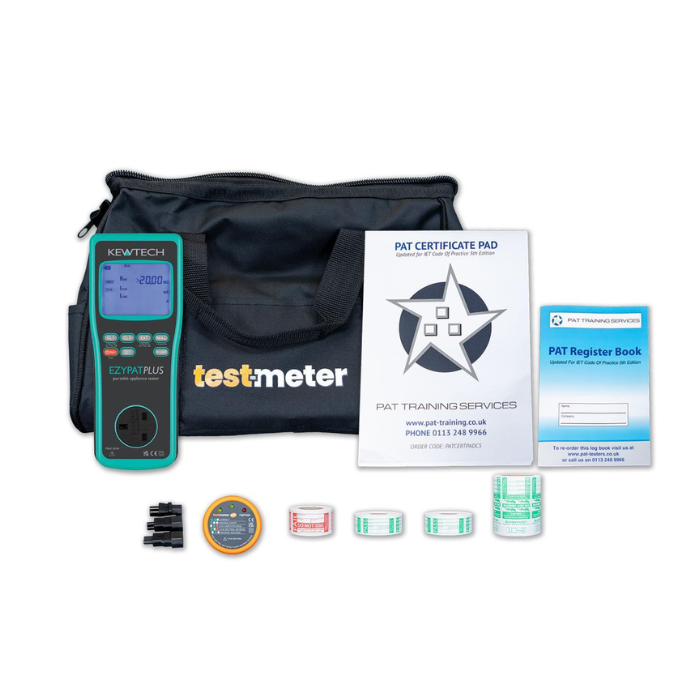

• Kewtech EZYPAT Plus PAT Tester
• Test-Meter Kit Bag
• PAT Register Book
• PAT Certificate Pad
• Test Meter PRO TMP989 230V 13A Socket Tester
• IEC Adaptor Kit
• 2x 500 Pass labels
• 250 Pass Wrap labels
• 200 Fail labels
