Kewtech EZYPAT Small Business PAT Testing Kit

The Kewtech EZYPAT Small Business PAT Testing Kit is a practical choice for small organisations carrying out their own electrical safety checks. It combines the compact, battery-powered Kewtech EZYPAT PAT Tester with the accessories needed to test, record and label appliances as part of a low-volume PAT testing programme. Dedicated automatic test sequences for Class I appliances, Class II appliances and extension leads help simplify routine testing, while clear PASS/FAIL indications and red and green visual alerts make results easy to interpret.

The EZYPAT performs earth bond continuity, insulation resistance, substitute leakage current and extension lead polarity tests. Selectable 250V and 500V insulation test voltages provide flexibility when testing surge-protected equipment and extension leads, while test lead resistance compensation helps account for resistance in the test leads. The kit also includes a Test Meter PRO socket tester and IEC adaptor kit, providing additional testing options and a quick way to check socket wiring before testing.

For straightforward record keeping, the kit comes with a PAT Register Book, PAT Certificate Pad and over 500 pass, wrap-around and fail labels for identifying tested appliances. Everything is supplied in a durable Test Meter kit bag.

PAT Testing Kit Comparison Guide

• Earth bond continuity test
• Insulation resistance test (250V & 500V)
• Battery powered
• 110V & 230V load and run testing
• Backlit LCD display with red/green indication
• Automatic test sequences
• Class I, Class II, extension leads

Protective Conductor Resistance

• Measuring range: 0.00 - 20.00 Ω (NULL value inc)*
• Over-range indication: > 20.00 Ω
• Resolution: 0.01Ω
• Open-circuit voltage: 5 V ±0.4 V DC
• Measuring current: 200 mA DC (nominal value)
• Accuracy: ±3%rdg ±5dgt

Mains Voltage

• Display range: 30 - 270 V
• Hi/ Lo indication: < 30 V: No voltage indication; > 270 V: 270 V
• Resolution & Accuracy: 1 V & ±3%rdg ±5dgt

Insulation

• Rated voltage: 250V; 500V
• Measuring range: 0.00 - 20.00 MΩ
• Over-range indication: > 20.00 MΩ
• Resolution: 0.01 MΩ
• No-load voltage: 250 V DC +20%, -0% 500 V DC +20%, -0%
• Short-circuit current: 1.5 mA DC or less
• Rated current: 1 -1.2 mA with a load of 0.25 MΩ 1 to 1.2 mA with a load of 0.5 MΩ
• Accuracy: ±2%rdg±3dgt

Substitute Leakage

• Measuring range: 0.10 - 12.00 mA rms
• Over-range indication: > 12.00 mA
• Resolution: 0.01mA
• Open-circuit voltage/ Freq.: 30 V ±5 V rms / 50 Hz ±5%
• Measuring current: 1.2 mA AC ±0.5 mA (when measuring 12.00 mA)
• Accuracy: ±3%rdg±5dgt

Insulation Test between L and N

• Open-circuit voltage: 4.5 V ±0.5 V DC
• Criteria of judgement: 100 kΩ ±20 kΩ or less: LCD shows “<0.10 MΩ” and the measurement is halted.

Run Leakage (Item: Load current / Leakage current)

• Mains voltage range: 100 - 253 V / 50 Hz
• Measuring range: 0.10 - 13.00 A rms / 0.10 - 20.00 mA rms
• Display range: 0.00 - 13.00 A / 0.00 - 20.00 mA
• Over-range indication: > 13.00 A / > 20.00 mA
• Resolution: 0.01A / 0.01mA
• Accuracy: ±10%rdg ±5dgt / ±3%rdg ±5dvgt
• rating: 3 kVA max., 15 sec. cont. / -

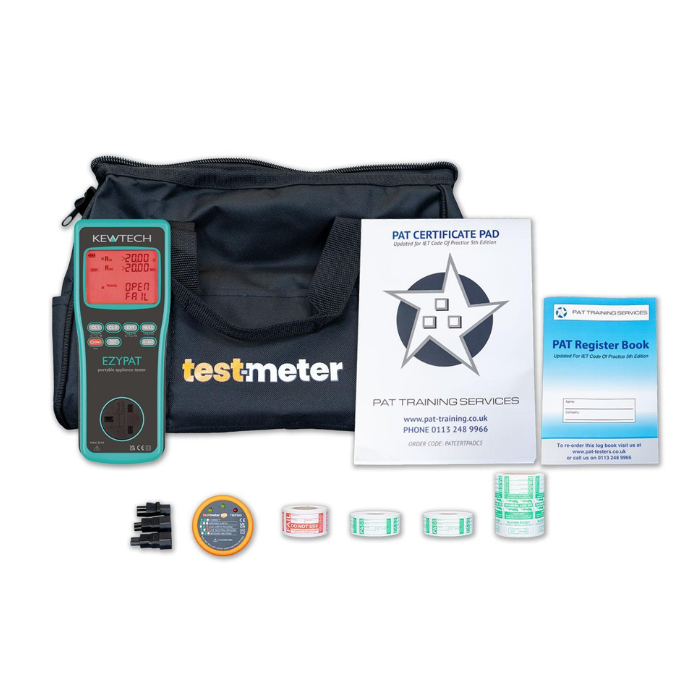

• Kewtech EZYPAT Plus PAT Tester
• Test-Meter Kit Bag
• PAT Register Book
• PAT Certificate Pad
• Test Meter PRO TMP989 230V 13A Socket Tester
• IEC Adaptor Kit
• 2x 500 Pass labels
• 250 Pass Wrap labels
• 200 Fail labels
