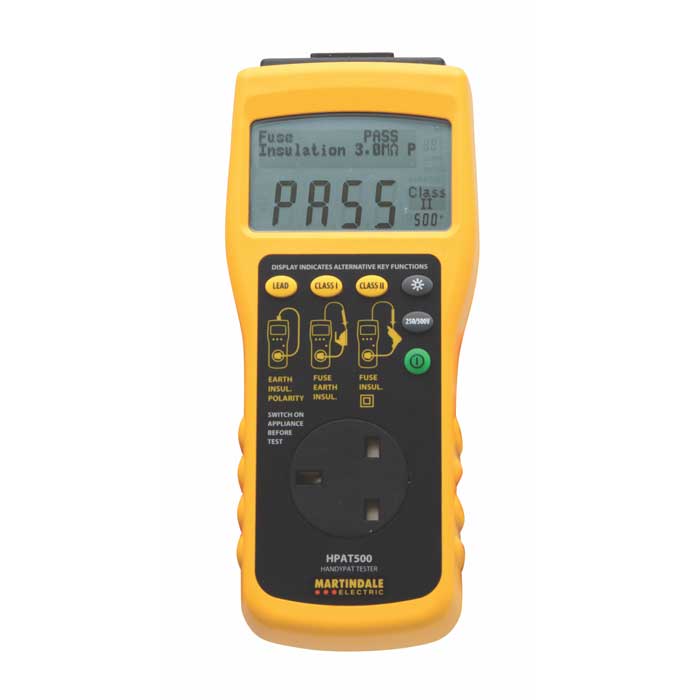

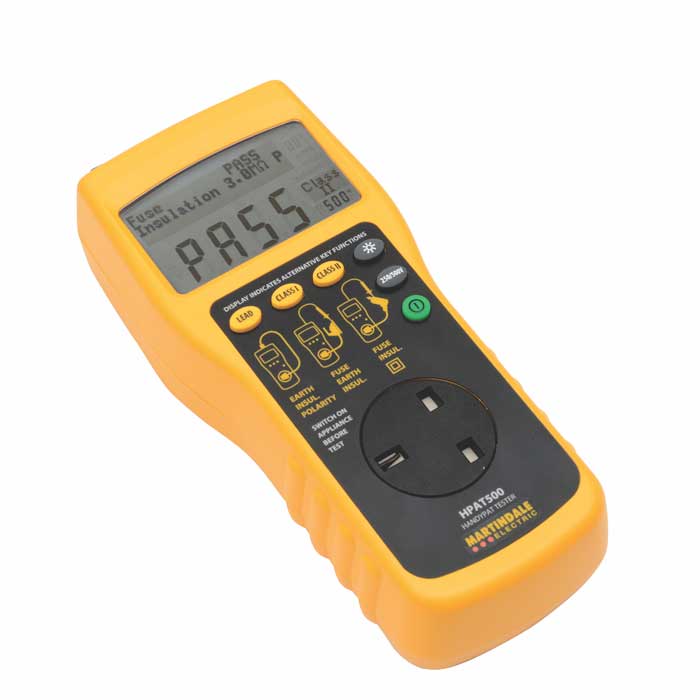

Martindale HandyPAT 500 PAT Tester

  • A user-friendly tester with straightforward operation
  • Suited to low-volume testing on IT and office appliance
  • PASS/FAIL indication complemented by numerical test results

£259.00 EXC. VAT

IN STOCK

Description

Limited Lifetime Warranty

The Martindale HandyPAT 500 is an entry level portable appliance tester perfectly suited to low volume PAT testing of electrical equipment found at the office or around the home. The Handy PAT 500 tester is ideal for those new to portable appliance testing and is a fantastic choice for an in-house PAT testing program.

This simple to use PAT tester performs earth bond, insulation, polarity and fuse tests on Class I, Class II and IEC leads at the push of a button and gives a clear Pass or Fail indication with test results. The Martindale HPAT500 performs a 200mA earth bond test, making it completely safe for use on IT equipment.

This Martindale basic PAT tester comes complete with rechargeable batteries and a mains charger, allowing the unit to be recharged between jobs.

*This product qualifies for our exclusive Limited Lifetime Warranty. For more information please click here.

Key Features

  • Simple, one button operation
  • Ideal for domestic and IT office equipment testing
  • Test Class 1 & Class 2 appliances and power leads
  • Clear Pass/Fail indication and test result value

Specification

  • Earth Bond Test: Test current of 200mA DC (ideal for IT equipment), Display measuring range 0 - 19.99 ohms
  • Insulation Test: Carried out 500V DC Measuring range 0-200 Mohms in 3 ranges
  • Fuse Test: 4V DC (into open circuit)
  • 230V IEC and extension lead test: built into the HPAT500
  • Weight: Approx 0.7kg (including batteries and leads)

Supplied Accessories

The Martindale HandyPAT 500 comes with:

  • Test Lead with crocodile clip
  • 230V Extension Lead Adaptor
  • Mains Lead
  • Instruction Manual
  • 12 Month Warranty
  • 6 x AA Rechargeable Batteries
  • Carry Case

Kit Options

The Martindale HandyPAT 500 PAT Tester is available in a range of kits:

Kit A Kit B Kit C Kit D
Martindale HandyPAT 500 PAT Tester
Microwave Leakage Detector
150 Microwave Emissions Labels
PAT Certificate Pad
PAT Register Book w/ Frequency of Inspection
SimplyPATs Version 7 Software
IEC Clover Leaf Adaptor
Martindale CP501 Check Plug
1000 Pass Labels
200 Fail Labels
250 PassWrap Cable Labels
250 Tuff Tag Cable Labels
Earth Bond Test Lead
Mains Lead
230V Extension Lead Adaptor
110V Appliance Adapter
110V Extension Lead Adaptor
Rechargeable Batteries
HandyPAT 500 Carry Case
Portable Appliance Tester Kit Carry Case
