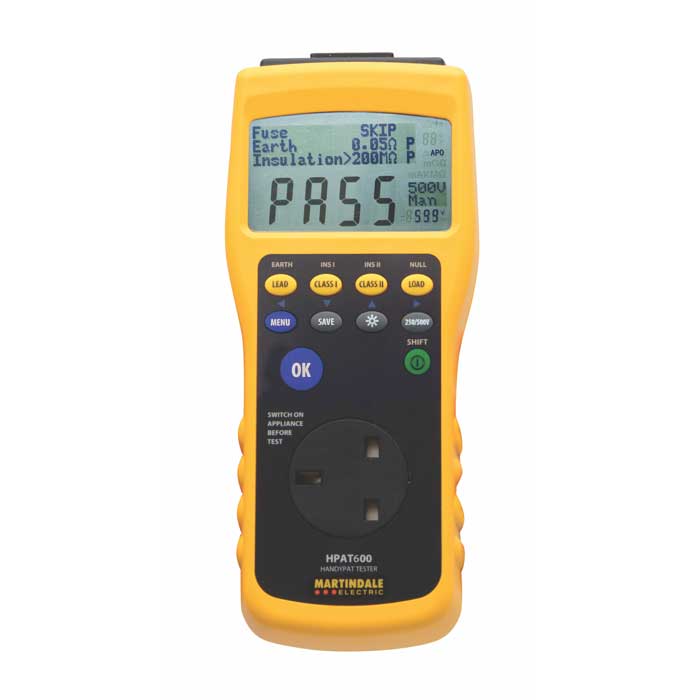

Martindale HPAT600/2 PAT Tester

  • Internal memory with room for 200 results
  • User-adjustable limits for PASS/FAIL indication
  • Automatic test sequences make process simple for beginners

£349.00 EXC. VAT

IN STOCK

Description

The Martindale HPAT600/2 PAT Tester builds on the HPAT500/2 to offer improved functionality including an auto test mode, test data storage and a dual voltage insulation test. The HPAT600/2 PAT tester is suitable for testing a wide range of electrical appliances in both domestic and commercial environments.

Select the manual mode if you are a newcomer to PAT testing and the HPAT600/2 will offer a step-by-step guide to the testing process, while the fast mode only requires the desired test sequence to be selected to begin automatic operation.

The Martindale HPAT600/2 can store test results for up to 200 appliances, available for quick onscreen viewing and allows PAT engineers to set their own pass limits on each test, ideal when testing long extension leads.

Key Features

  • Manual and automatic modes for novice and expert users
  • Results storage for up to 200 tests
  • Dual insulation test at both 250V and 500V
  • Low current earth bond test ideal for sensitive IT equipment
  • Clear Pass/Fail indication and test result value

Specification

Earth Continuity

  • Test Voltage: 4V DC (into open circuit)
  • Test Current: 200mA DC (into short circuit)
  • Range: 0 - 19.99Ω
  • Resolution: 0.01Ω
  • Accuracy: ± (5% reading + 2 digits)
  • Default PASS Levels (Class I) 0.1 Ω.
  • Default PASS Levels (Lead) 0.1 Ω
  • User Selectable Pass Levels 0.1Ω to 0.9Ω in 0.1Ω steps

Insulation

  • Test Voltage (500V Range) >500V DC at 1mA ( < 600V DC into open circuit)
  • Test Voltage (250V Range) >250V DC at 1mA ( < 300V DC into open circuit)
  • Test Current 1.5mA (into short circuit)
  • Ranges 2.00MΩ, 20.0MΩ, 200MΩ
  • Resolution 0.01MΩ
  • Accuracy: ± (5% reading + 2 digits)
  • Default Pass Level (Lead): 1 MΩ
  • Default Pass Level (Class I): 1 MΩ
  • Default Pass Level (Class II): 2 MΩ
  • User Selectable Pass Levels: 0.3 MΩ to 1MΩ in 0.1MΩ steps; 1MΩ to 10MΩ in 1MΩ steps

Fuse Test

  • Test Voltage: 4V DC (into open circuit)
  • Test Current: 200mA DC (into short circuit)
  • Pass Level: >2mA

Simulated Load Test

  • Test Voltage: 4V DC (into open circuit)
  • Test Current: 200mA DC (into short circuit)
  • Accuracy: ± (5% reading + 2 digits) (referenced to 230V)

General

  • Overload Protection: 300V AC/DC
  • Protection Class: IP20
  • Safety: Complies to BS EN 61010-1:2001
  • Temperature Range: -10 to 40°C, non-condensing
  • Power Supply 6 x 1.2V AA NiMH rechargeable batteries 1800mAh, or greater
  • Dimensions: 90 x 210 x 54mm
  • Weight: Approx 700g (including batteries and leads)

Supplied Accessories

The Martindale HPAT600/2 comes with:

  • Test Lead with crocodile clip
  • Mains Lead and In-Car Charger
  • Instruction Manual
  • 12 Month Warranty
  • 6 x AA Rechargeable Batteries
  • Carry Case

Kit Options

The Martindale HPAT600/2 PAT Tester is available in a range of kits:

Kit A Kit B Kit C Kit D
Martindale HPAT600/2 PAT Tester
Microwave Leakage Detector
150 Microwave Emissions Labels
PAT Certificate Pad
PAT Register Book w/ Frequency of Inspection
SimplyPATs Version 7 Software
IEC Clover Leaf Adaptor
Martindale CP501 Check Plug
1000 Pass Labels
200 Fail Labels
250 PassWrap Cable Labels
250 Tuff Tag Cable Labels
Earth Bond Test Lead
Mains Lead
230V Extension Lead Adaptor
110V Appliance Adapter
110V Extension Lead Adaptor
Rechargeable Batteries
HandyPAT 600 Carry Case
Portable Appliance Tester Kit Carry Case
