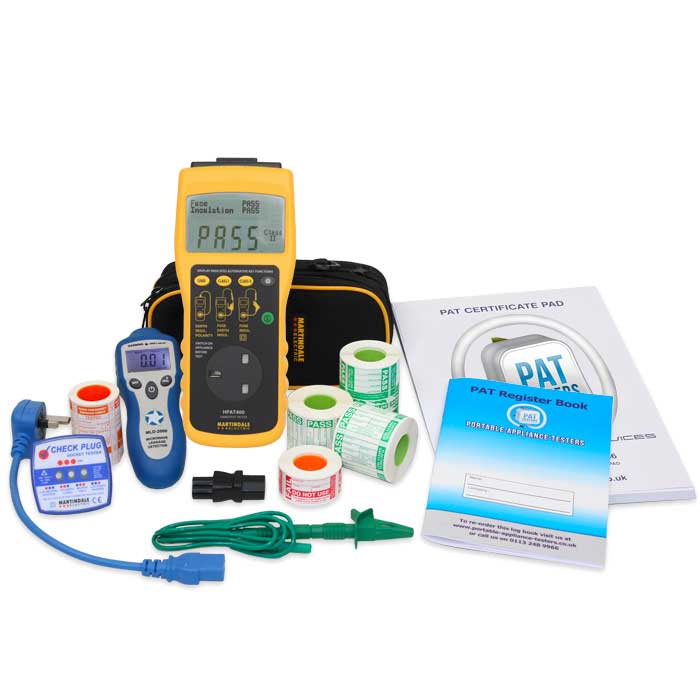

Martindale HPAT400 Kit A
- Includes a socket tester and microwave leakage detector
- Martindale HPAT400 PAC Checker, ideal for office environments
- Full set of PAT labels for appliances, leads and microwave leakage
Currently unavailable for purchase
Please note that this product has now been discontinued, with a replacement coming soon. For more information please 0113 248 9966.
The Martindale HPAT400 PAC Checker is capable of performing earth bond continuity (200mA) tests, insulation tests (500V DC), and fuse checks. It is suitable for use on Class I appliances, Class II appliances and extension leads.
As a PAC checker, the Martindale HPAT400 provides the user with a PASS/FAIL indication for each test as well as an overall result. This is in place of giving numeric results for the tests and is based on inbuilt PASS/FAIL limits. Results are displayed on the clear digital screen.
All the user needs to do to activate an automatic test sequence on the Martindale HPAT400 is press the appropriate button having first correctly identified the appliance class. This will then activate a test sequence which will do everything for you automatically.
The Martindale HPAT400 is covered by a two-year warranty and comes supplied with batteries (600-test battery life), a test lead, a test probe, a crocodile clip, an IEC adaptor lead, and a carry case.
Martindale part number: HPAT400
Key Features
- Earth bond test (200mA)
- Insulation resistance test (500V)
- Fuse test function
- PASS/FAIL indication on screen
- Pre-set PASS/FAIL limits
- Two-year warranty
EARTH CONTINUITY
- Test voltage: 4V DC (into open circuit) Test current: 200mA DC (into short circuit)
- Accuracy: ± 0.03Ω
- Pass limits: Lead ≤ 0.20 Ω = PASS; Class I ≤ 0.20 Ω = PASS
INSULATION
- Fixed voltage: >500V DC at 1mA (< 625V DC into open circuit)
- Test current: 1.5mA (into short circuit)
- Accuracy: ± 0.1MΩ
- Pass limits: Lead: ≥ 1.0 MΩ; Class I: ≥ 1.0 MΩ; Class II: ≥ 2.0 MΩ
FUSE CHECK
- Test voltage: 4V DC (into open circuit)
- Test current: 200mA DC (into short circuit)
- Pass level: >2mA
GENERAL
- Overload protection: 300V AC/DC
- Martindale HPAT400 PAC Checker
- Instructions for Martindale HPAT400
- Test Probe with crocodile clip (TL67)
- 6 x Alkaline AA batteries
- IEC Adaptor Lead (Ex332)
- Zip carry case
