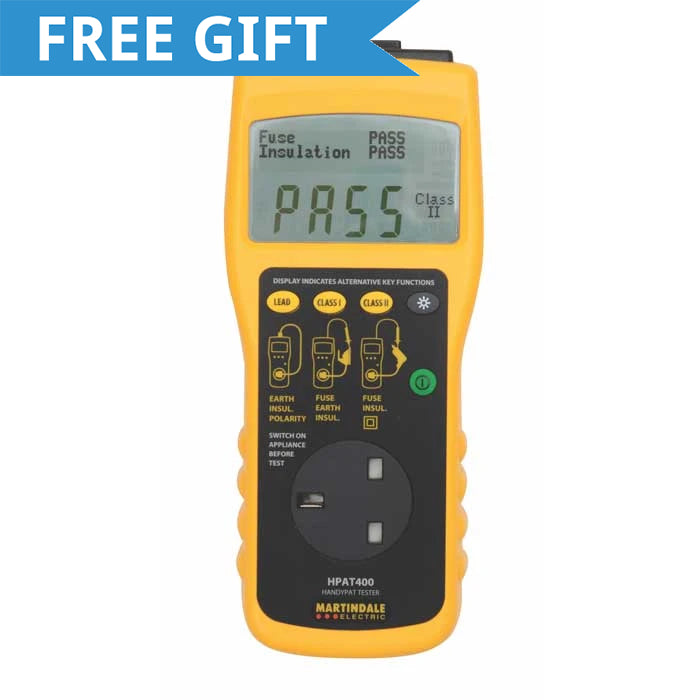

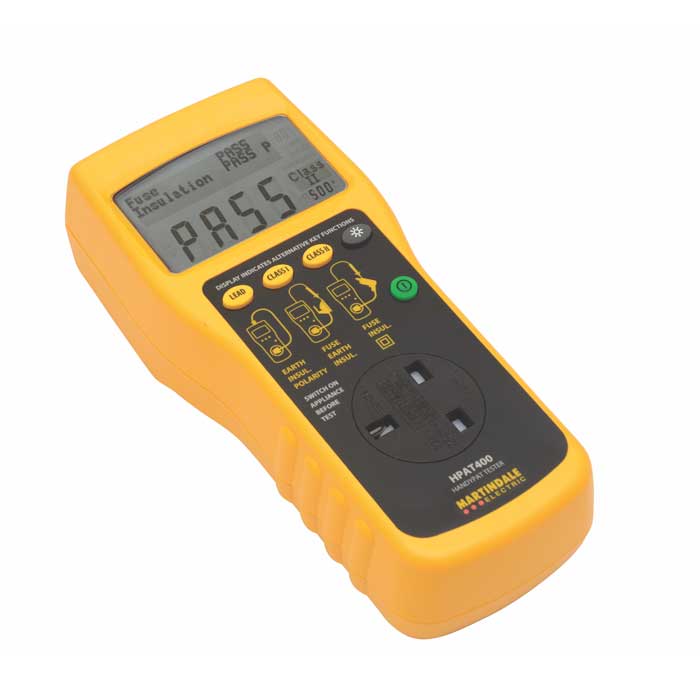

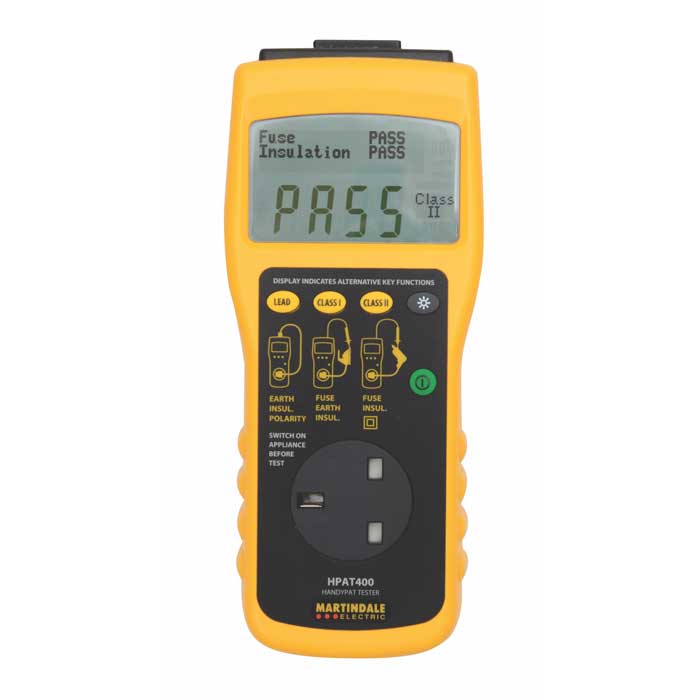

Martindale HPAT400 PAC Checker

  • Capable of 200mA earth bond tests, 500V insulation resistance tests, and fuse tests
  • Ideal for testing both Class I and Class II appliances
  • Gives a clear PASS/FAIL indication on screen according to pre-set limits

£189.00 EXC. VAT

IN STOCK

Description

The Martindale HPAT400 PAC Checker is capable of performing earth bond continuity (200mA) tests, insulation tests (500V DC), and fuse checks. It is suitable for use on Class I appliances, Class II appliances and extension leads.

As a PAC checker, the Martindale HPAT400 provides the user with a PASS/FAIL indication for each test as well as an overall result. This is in place of giving numeric results for the tests and is based on inbuilt PASS/FAIL limits. Results are displayed on the clear digital screen.

All the user needs to do to activate an automatic test sequence on the Martindale HPAT400 is press the appropriate button having first correctly identified the appliance class. This will then activate a test sequence which will do everything for you automatically.

The Martindale HPAT400 is covered by a two-year warranty and comes supplied with batteries (600-test battery life), a test lead, a test probe, a crocodile clip, an IEC adaptor lead, and a carry case.

Martindale part number: HPAT400

Key Features

  • Earth bond test (200mA)
  • Insulation resistance test (500V)
  • Fuse test function
  • PASS/FAIL indication on screen
  • Pre-set PASS/FAIL limits
  • Two-year warranty

Specification

EARTH CONTINUITY

  • Test voltage: 4V DC (into open circuit) Test current: 200mA DC (into short circuit)
  • Accuracy: ± 0.03Ω
  • Pass limits: Lead ≤ 0.20 Ω = PASS; Class I ≤ 0.20 Ω = PASS

INSULATION

  • Fixed voltage: >500V DC at 1mA (< 625V DC into open circuit)
  • Test current: 1.5mA (into short circuit)
  • Accuracy: ± 0.1MΩ
  • Pass limits: Lead: ≥ 1.0 MΩ; Class I: ≥ 1.0 MΩ; Class II: ≥ 2.0 MΩ

FUSE CHECK

  • Test voltage: 4V DC (into open circuit)
  • Test current: 200mA DC (into short circuit)
  • Pass level: >2mA

GENERAL

  • Overload protection: 300V AC/DC

Supplied Accessories

  • Martindale HPAT400 PAC Checker
  • Instructions for Martindale HPAT400
  • Test Probe with crocodile clip (TL67)
  • 6 x Alkaline AA batteries
  • IEC Adaptor Lead (Ex332)
  • Zip carry case

The Martindale HPAT400 PAC Checker is capable of performing earth bond continuity (200mA) tests, insulation tests (500V DC), and fuse checks. It is suitable for use on Class I appliances, Class II appliances and extension leads.

As a PAC checker, the Martindale HPAT400 provides the user with a PASS/FAIL indication for each test as well as an overall result. This is in place of giving numeric results for the tests and is based on inbuilt PASS/FAIL limits. Results are displayed on the clear digital screen.

All the user needs to do to activate an automatic test sequence on the Martindale HPAT400 is press the appropriate button having first correctly identified the appliance class. This will then activate a test sequence which will do everything for you automatically.

The Martindale HPAT400 is covered by a two-year warranty and comes supplied with batteries (600-test battery life), a test lead, a test probe, a crocodile clip, an IEC adaptor lead, and a carry case.

Martindale part number: HPAT400
