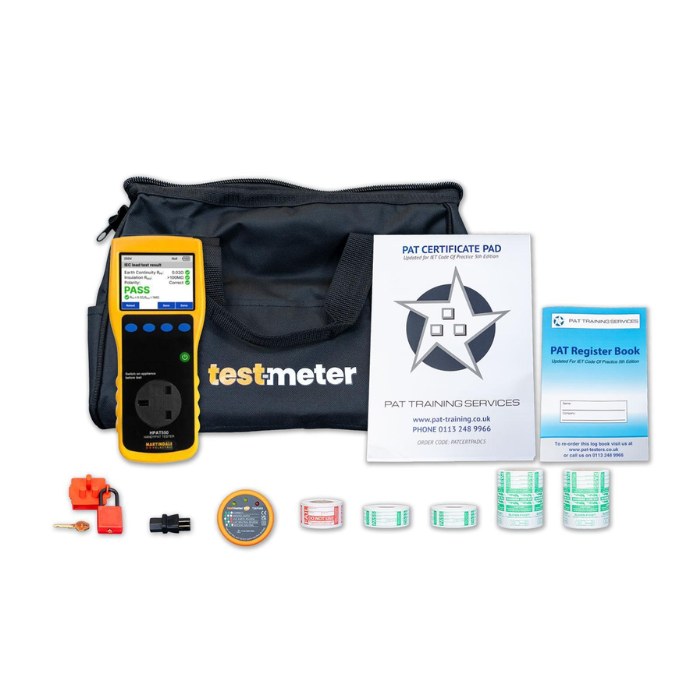

Martindale HPAT550 Landlords PAT Testing Kit

The Martindale HPAT550 Landlords PAT Testing Kit is a practical solution for landlords carrying out routine portable appliance testing across single properties or rental portfolios. At its centre is the easy-to-use Martindale HPAT550 PAT Tester, which provides one-button operation, automatic Class I, Class II and IEC lead test programmes, and clear PASS/FAIL indications. Its bright colour display shows measured values alongside results, making it straightforward to assess appliances, even for users with limited PAT testing experience.

Selectable 250V and 500V insulation resistance testing allows a range of household appliances to be tested, including equipment with sensitive electronic components, while 200mA earth continuity testing checks protective earth connections. This makes the tester suitable for routine checks on appliances such as kettles, microwaves, lamps and extension leads.

PAT Testing Kit Comparison Guide

• Purpose-built for landlords managing appliance safety across rental properties
• Includes plug lockout and padlock for safer inspection and maintenance procedures
• Complete record-keeping and labelling package to support organised compliance management
• Features a high-quality colour display
• Clear and simple PASS/FAIL indication with measured values
• Offers automatic testing Class I, Class II, and IEC power lead tests
• Selectable 250V or 500V insulation test
• 200mA earth bond test
• Is USB-C rechargeable, with power save mode and fast charge support available

Earth Continuity

• Test Voltage – 4V DC (into open circuit)
• Test Current - >200mA DC (into short circuit)
• Range - 0.01 - 20Ω
• Resolution – 0.01 Ω
• Accuracy - ± (5% of reading + 2 digits)
• Fixed / Default Pass Limits – Fixed ≤0.1Ω, ≤0.5Ω selectable pass for long cable

Insulation

• Test Voltage / User Selectable Voltage – User selectable >250V DC at 1mA / >500V DC at 1mA (<312.5V DC open circuit / <625V DC open circuit)
• Test Current - <2mA (into short circuit)
• Range – 0.01MΩ - 100MΩ
• Resolution –
  0.01MΩ (10kΩ - 2MΩ)
  0.1MΩ (2MΩ - 20MΩ)
  1MΩ (20MΩ - 100MΩ)
• Accuracy – 5% reading + 2 digits
• Pass Level -
  Lead: ≥1.0MΩ
  Class I: ≥1.0MΩ
  Class II: ≥2.0MΩ

Power

• Batteries – 3.7V 5000mAh lithium polymer battery (non-user replaceable)
• Battery Life – Fully charged, minimum 1700 complete tests (approximately)
• Auto Power Down – Auto dimming after 3 minutes, Auto power down after 5 minutes of inactivity

Environmental

• Location – Suitable for indoor and outdoor used in dry weather conditions only
• Altitude – Up to 2000m
• Operating Temperature – 0°C to 40°C
• Humidity - ≤80% RH up to 31°C, decreasing linearly to 50°C RH at 40°C
• Ingress Protection Class – IP20
• Pollution Degree – 2

General

• Overload Protection – 300V AC/DC
• Protection Class – IP20
• Safety – Complies with BS EN 61010-1

• Martindale HPAT550 PAT Tester
• Test-Meter Kit Bag
• PAT Register Book
• PAT Certificate Pad
• Test Meter PRO TMP989 230V 13A Socket Tester
• IEC Cloverleaf Adaptor
• 2 x 500 Pass labels
• 2x 250 Pass Wrap labels
• 200 Fail labels
• PL13 230V 13A Plug Lockout & Padlock
