Martindale HPAT550 Small Business PAT Testing Kit

The Martindale HPAT550 Small Business PAT Testing Kit is a practical solution for businesses looking to carry out routine PAT testing in-house. It combines the compact, easy-to-use Martindale HPAT550 PAT tester with the accessories needed to test, label and record electrical equipment. One-button operation, a clear colour display and automatic Class I, Class II and IEC power lead test sequences make testing straightforward, while clear PASS/FAIL indications allow results to be identified quickly. The tester provides 250V and 500V insulation resistance testing for a range of appliances, including equipment with sensitive electronic components, as well as 200mA earth continuity testing to check protective earth connections.

The kit includes an IEC Adaptor Kit for testing common power leads and IT equipment, an extension lead adaptor and a Test-Meter PRO TMP989 Socket Tester for checking socket wiring before testing. A PAT Register Book and PAT Certificate Pad are supplied for keeping inspection records organised, while the included pass, wrap and fail labels make it easy to identify the testing status of equipment. Everything is supplied in a durable Test-Meter kit bag for convenient storage and transport between testing locations.

PAT Testing Kit Comparison Guide

• Complete PAT testing solution for small businesses
• Automatic Class I, Class II and IEC lead testing for fast and consistent inspections
• Includes record-keeping materials, labels and accessories needed to support ongoing compliance
• Features a high-quality colour display
• Clear and simple PASS/FAIL indication with measured values
• Offers automatic testing Class I, Class II, and IEC power lead tests
• Selectable 250V or 500V insulation test
• 200mA earth bond test
• Is USB-C rechargeable, with power save mode and fast charge support available

Earth Continuity

• Test Voltage – 4V DC (into open circuit)
• Test Current - >200mA DC (into short circuit)
• Range - 0.01 - 20Ω
• Resolution – 0.01 Ω
• Accuracy - ± (5% of reading + 2 digits)
• Fixed / Default Pass Limits – Fixed ≤0.1Ω, ≤0.5Ω selectable pass for long cable

Insulation

• Test Voltage / User Selectable Voltage – User selectable >250V DC at 1mA / >500V DC at 1mA (<312.5V DC open circuit / <625V DC open circuit)
• Test Current - <2mA (into short circuit)
• Range – 0.01MΩ - 100MΩ
• Resolution –
  0.01MΩ (10kΩ - 2MΩ)
  0.1MΩ (2MΩ - 20MΩ)
  1MΩ (20MΩ - 100MΩ)
• Accuracy – 5% reading + 2 digits
• Pass Level -
  Lead: ≥1.0MΩ
  Class I: ≥1.0MΩ
  Class II: ≥2.0MΩ

Power

• Batteries – 3.7V 5000mAh lithium polymer battery (non-user replaceable)
• Battery Life – Fully charged, minimum 1700 complete tests (approximately)
• Auto Power Down – Auto dimming after 3 minutes, Auto power down after 5 minutes of inactivity

Environmental

• Location – Suitable for indoor and outdoor used in dry weather conditions only
• Altitude – Up to 2000m
• Operating Temperature – 0°C to 40°C
• Humidity - ≤80% RH up to 31°C, decreasing linearly to 50°C RH at 40°C
• Ingress Protection Class – IP20
• Pollution Degree – 2

General

• Overload Protection – 300V AC/DC
• Protection Class – IP20
• Safety – Complies with BS EN 61010-1

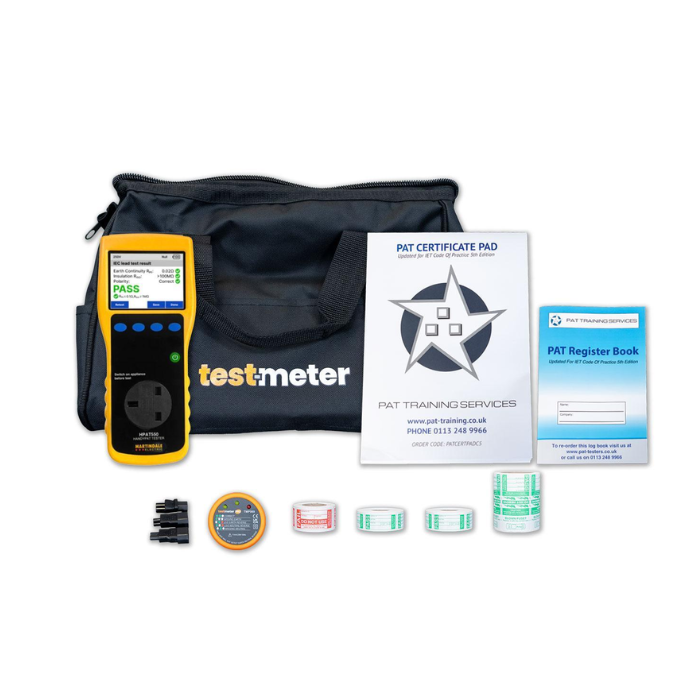

• Martindale HPAT550 PAT tester
• Test-Meter Kit Bag
• PAT Register Book
• PAT Certificate Pad
• Test Meter PRO TMP989 230V 13A Socket Tester
• IEC Adaptor Kit
• 2x 500 Pass labels
• 250 Pass Wrap labels
• 200 Fail labels
