Martindale HPAT650 Landlords PAT Testing Kit

The Martindale HPAT650 Landlords PAT Testing Kit is a practical solution for carrying out portable appliance testing across rental properties. The lightweight HPAT650 PAT Tester combines one-button operation with automatic Class I, Class II and IEC power lead testing, while its colour display shows measured values alongside clear PASS/FAIL results.

Selectable 250V and 500V insulation testing, adjustable pass limits and substitute leakage testing provide flexibility when testing a range of household appliances, including sensitive electronic and IT equipment. The tester can store up to 100 test results in its onboard memory, while rechargeable battery operation with USB-C charging makes it convenient to use across multiple properties. An earth bond probe and IEC adaptor lead are also supplied for common appliance and power lead testing.

PAT Testing Kit Comparison Guide

• Lightweight and portable design for easy transportation and application
• Features a high-quality colour display
• Clear and simple PASS/FAIL indication with measured values
• Offers automatic testing of Class I, Class II, and IEC power lead tests
• Selectable 250V or 500V insulation test
• 200mA earth bond test
• Is USB-C rechargeable, with power save mode and fast charge support available
• Onboard memory storage for up to 100 results. The user has a choice between single and sequenced test execution modes
• Adjustable pass limits, as well as a substitute leakage test to simulate earth leakage current

Earth Continuity

• Test Voltage – 4V DC (into open circuit)
• Test Current - >200mA DC (into short circuit)
• Range - 0.01 - 20Ω
• Resolution – 0.01 Ω
• Accuracy - ± (5% of reading + 2 digits)
• Fixed / Default Pass Limits – Default ≤0.1, user settable, ≤0.5Ω selectable pass for long cable
• User Settable Limits - ≤0.1Ω to ≤0.9Ω in 0.1Ω steps

Insulation

• Test Voltage / User Selectable Voltage – User selectable >250V DC at 1mA / >500V DC at 1mA (<312.5V DC open circuit / <625V DC open circuit)
• Test Current - <2mA (into short circuit)
• Range – 0.01MΩ - 100MΩ
• Resolution –
  0.01MΩ (10kΩ - 2MΩ)
  0.1MΩ (2MΩ - 20MΩ)
  1MΩ (20MΩ - 100MΩ)
• Accuracy – 5% reading + 2 digits
• Pass Level -
  Lead: ≥1.0MΩ
  Class I: ≥1.0MΩ
  Class II: ≥2.0MΩ
• User Settable Pass Level - ≥0.3MΩ to ≥ 1MΩ in 0.1MΩ steps, ≥1MΩ to ≥ 10MΩ in 1MΩ steps

Substitute Leakage Test

• Test Voltage - <50V AC (into open circuit), 0.02-20mA DC (into short circuit)
• Accuracy - ± (5% reading + 2 digits)
• Pass Level - ≤5mA

Memory

• Test Records – 100 tests stored for on-screen recall

Power

• Batteries – 3.7V 5000mAh lithium polymer battery (non-user replaceable)
• Battery Life – Fully charged, minimum 1700 complete tests (approximately)
• Auto Power Down – Auto dimming after 3 minutes, Auto power down after 5 minutes of inactivity

Environmental

• Location – Suitable for indoor and outdoor used in dry weather conditions only
• Altitude – Up to 2000m
• Operating Temperature – 0°C to 40°C
• Humidity - ≤80% RH up to 31°C, decreasing linearly to 50°C RH at 40°C
• Ingress Protection Class – IP20
• Pollution Degree – 2

General

• Overload Protection – 300V AC/DC
• Protection Class – IP20
• Safety – Complies with BS EN 61010-1

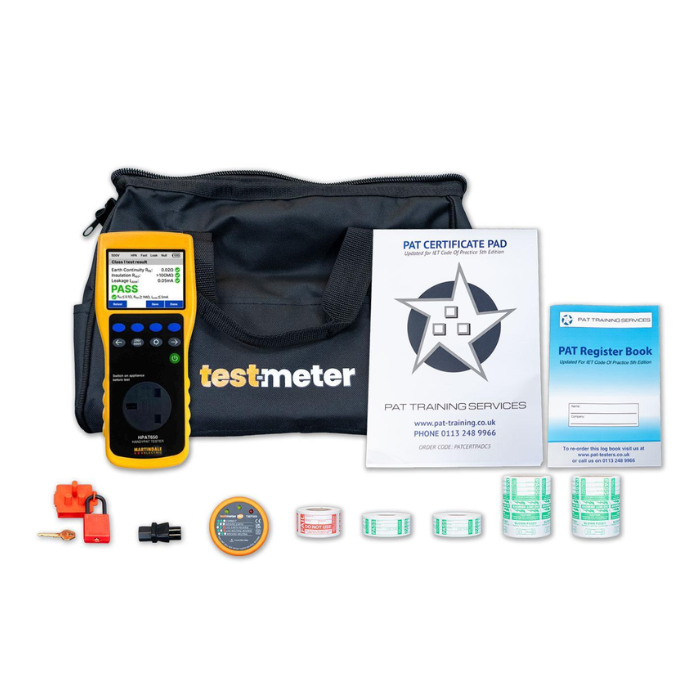

• Martindale HPAT650 PAT Tester
• Test-Meter Kit Bag
• PAT Register Book
• PAT Certificate Pad
• Test Meter PRO TMP989 230V 13A Socket Tester
• IEC Cloverleaf Adaptor
• 2 x 500 Pass labels
• 2x 250 Pass Wrap labels
• 200 Fail labels
• PL13 230V 13A Plug Lockout & Padlock
