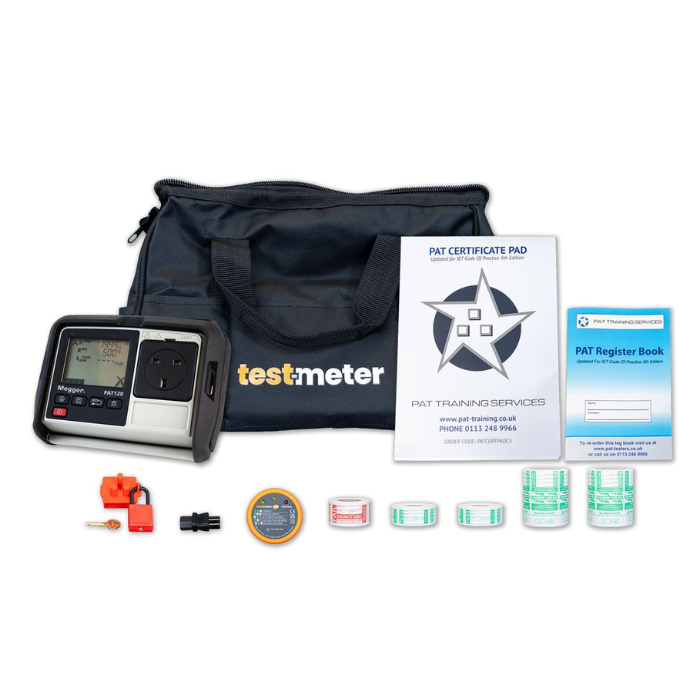

Megger PAT120 Landlords PAT Testing Kit

The Megger PAT120 Landlords PAT Testing Kit is a practical solution for carrying out routine portable appliance testing in rented accommodation. The kit is built around the Megger PAT120 and can test Class I and Class II appliances, extension leads and power leads, with automatic test sequences helping to speed up inspections and clear PASS/FAIL indications making results easy to understand.

Earth continuity, insulation resistance at 250 V and 500 V, and substitute leakage testing cover the key checks required for routine PAT testing, while the 250 V insulation test is useful for surge-protected extension leads. Battery-powered operation allows testing without a mains supply, while the rubber-armoured housing and toughened Gorilla glass help protect the tester when it is transported between properties. The kit includes accessories to support testing, safety and record keeping.

PAT Testing Kit Comparison Guide

• Simple pass fail indication & measurement
• Rugged and hard wearing design
• Battery powered and portable
• Automatic test sequences for Class I, Class II and Extension/Power leads
• Includes 250V Insulation testing for surge protected extension leads.
• Protective outer casing with front cover and toughened glass

Environmental Conditions

• Operating ambient: 20°C
• Humidity: Nominal humidity

Continuity Test

• Test voltage: Compliance Voltage: +4V dc, –0 % /+10 % (open circuit)
• Test current: Bi-directional +200mA, -0% + 50mA (into 2Ω load)
• Continuity accuracy: Resistance: ± 5% ± 3 digits (0 to 19.99 Ω)
• Resistance resolution: 10 mΩ
• Display range: 0.01 to 19.99Ω
• Continuity test nulling: up to 9.99 Ω
• Test time: User selectable from 2 sec to 20 sec or selected during test to 180sec

Insulation Test

• Insulation test: 250V dc –0 % /+25 % open circuit, 500V dc –0 % /+25 % open circuit, ≥ 500V 0% dc across 0.5 MΩ load
• Short circuit/charge current: < 2mA dc
• Insulation accuracy: ±3% ±10 digits (0 to 19.99 MΩ)
• Resolution: 0.01 MΩ
• Display range: 0.10 MΩ to 99.99 MΩ
• Test duration: User selectable from 2 sec to 20 sec or selected during test to 180sec

Substitute Leakage Test

• Leakage current: Accuracy ± 5% ± 3 digits
• Test frequency: Nominal mains frequency 50Hz
• Test voltage: < 50V ac
• Resolution: 0.01mA
• Display range: 0.10 to 19.99mA
• Test duration: User selectable from 2 sec to 5 seconds
• Reading corrected to 230V ac.

Safety

• Instrument designed to IEC 61010-1: 2012
• Test leads designed to IEC 61010-031: 2005
• 300 volts to Earth Category II
• Mains fuse protection to 250 volts rms ac

EMC

• Design to meet IEC 61326-1: 2006 and IEC 61326-2-2: 2005.

Environmental

• Operating temperature range: 0°C to +40°C
• Storage temperature range: -20°C to +60°C
• Humidity: 90%RH @ +10°C +30°C, 75%RH @ +30°C to +40°C
• Maximum altitude: 2,000m to full safety spec.
• IP rating: IP40 (with front cover closed)

General

• Battery: Supply voltage, 12 Vdc (Alkaline AA LR6), 9.6 Vdc (NiMH AA LR6)
• Weight (PAT120 Only): 1150g
• Weight (Shipping): 2370g
• Dimensions: 203 x 148 x 78mm
• Megger Part Number: 1003-062

• Megger PAT120 Tester
• Test-Meter Kit Bag
• PAT Register Book
• PAT Certificate Pad
• Test Meter PRO TMP989 230V 13A Socket Tester
• IEC Cloverleaf Adaptor
• 2 x 500 Pass labels
• 2x 250 Pass Wrap labels
• 200 Fail labels
• PL13 230V 13A Plug Lockout & Padlock
