Megger PAT120 Small Business PAT Testing Kit
Currently unavailable for purchase

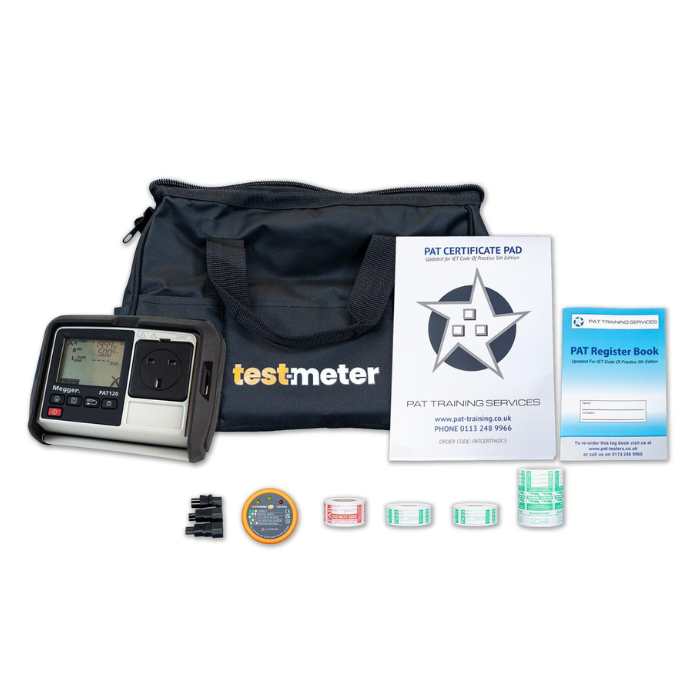

The Megger PAT120 Small Business PAT Testing Kit is a practical solution for small businesses carrying out routine portable appliance testing. The tester tests Class I and Class II appliances, extension leads and power leads, with earth continuity, insulation resistance at 250 V and 500 V, and substitute leakage testing covering the essential checks needed for regular workplace inspections.
Automatic test sequences help speed up routine testing, while clear PASS/FAIL indications make results easy to interpret. The 250 V insulation test is particularly useful for surge-protected extension leads, while battery-powered operation allows testing without access to a mains supply. The tester is also protected by toughened Gorilla glass and shock-resistant rubber armour for durability during regular use. The kit includes accessories to support both testing and record keeping.
PAT Testing Kit Comparison Guide
|
|
Small Business PAT Testing Kit |
Landlords PAT Testing Kit |
Maintenance PAT Testing Kit |
Industrial PAT Testing Kit |
|
Test Meter Kit Bag |
✔ |
✔ |
✔ |
x 2 |
|
PAT Register Book |
✔ |
✔ |
✔ |
✔ |
|
PAT Certificate Pad |
✔ |
✔ |
✔ |
✔ |
|
Test Meter PRO TMP989 230V 13A Socket Tester |
✔ |
✔ |
||
|
IEC Cloverleaf Adaptor |
✔ |
|||
|
IEC Adaptor Kit |
✔ |
✔ |
✔ |
|
|
500 Pass labels |
x 2 |
x 2 |
x 2 |
x 2 |
|
250 Pass Wrap labels |
✔ |
x2 |
x 2 |
x 2 |
|
200 Fail labels |
✔ |
✔ |
✔ |
✔ |
|
250 Tuff Tag Cable Wrap Labels |
✔ |
✔ |
||
|
16A 110V Appliance Adaptor and Extension Lead Adaptor |
✔ |
✔ |
||
|
PL13 230V 13A Plug Lockout & Padlock |
✔ |
✔ |
||
|
16A 230V Appliance Adaptor and Extension Lead Adaptor |
✔ |
✔ |
||
|
32A 110V Appliance Adaptor and IEC Extension Lead Adaptor |
✔ |
|||
|
32A 230V Appliance Adaptor and Extension Lead Adaptor |
✔ |
|||
|
16A & 32A 4 and 5 Pin Appliance Adaptors and IEC Extension Lead Adaptors |
✔ |
- Simple pass fail indication & measurement
- Rugged and hard wearing design
- Battery powered and portable
- Automatic test sequences for Class I, Class II and Extension/Power leads
- Includes 250V Insulation testing for surge protected extension leads.
- Protective outer casing with front cover and toughened glass
Environmental Conditions
- Operating ambient: 20°C
- Humidity: Nominal humidity
Continuity Test
- Test voltage: Compliance Voltage: +4V dc, –0 % /+10 % (open circuit)
- Test current: Bi-directional +200mA, -0% + 50mA (into 2Ω load)
- Continuity accuracy: Resistance: ± 5% ± 3 digits (0 to 19.99 Ω)
- Resistance resolution: 10 mΩ
- Display range: 0.01 to 19.99Ω
- Continuity test nulling: up to 9.99 Ω
- Test time: User selectable from 2 sec to 20 sec or selected during test to 180sec
Insulation Test
- Insulation test: 250V dc –0 % /+25 % open circuit, 500V dc –0 % /+25 % open circuit, ≥ 500V 0% dc across 0.5 MΩ load
- Short circuit/charge current: < 2mA dc
- Insulation accuracy: ±3% ±10 digits (0 to 19.99 MΩ)
- Resolution: 0.01 MΩ
- Display range: 0.10 MΩ to 99.99 MΩ
- Test duration: User selectable from 2 sec to 20 sec or selected during test to 180sec
Substitute Leakage Test
- Leakage current: Accuracy ± 5% ± 3 digits
- Test frequency: Nominal mains frequency 50Hz
- Test voltage: < 50V ac
- Resolution: 0.01mA
- Display range: 0.10 to 19.99mA
- Test duration: User selectable from 2 sec to 5 seconds
- Reading corrected to 230V ac.
Safety
- Instrument designed to IEC 61010-1: 2012
- Test leads designed to IEC 61010-031: 2005
- 300 volts to Earth Category II
- Mains fuse protection to 250 volts rms ac
EMC
- Design to meet IEC 61326-1: 2006 and IEC 61326-2-2: 2005.
Environmental
- Operating temperature range: 0°C to +40°C
- Storage temperature range: -20°C to +60°C
- Humidity: 90%RH @ +10°C +30°C, 75%RH @ +30°C to +40°C
- Maximum altitude: 2,000m to full safety spec.
- IP rating: IP40 (with front cover closed)
General
- Battery: Supply voltage, 12 Vdc (Alkaline AA LR6), 9.6 Vdc (NiMH AA LR6)
- Weight (PAT120 Only): 1150g
- Weight (Shipping): 2370g
- Dimensions: 203 x 148 x 78mm
- Megger Part Number: 1003-062
- Megger PAT120 Tester
- Test-Meter Kit Bag
- PAT Register Book
- PAT Certificate Pad
- Test Meter PRO TMP989 230V 13A Socket Tester
- IEC Adaptor Kit
- 2x 500 Pass labels
- 250 Pass Wrap labels
- 200 Fail labels
