Megger PAT150 Small Business PAT Testing Kit
Currently unavailable for purchase
The Megger PAT150 Small Business PAT Testing Kit is a practical solution for businesses carrying out routine portable appliance testing in line with the IET Code of Practice. The PAT150 can test Class I, Class II and Class III (SELV) appliances, as well as extension leads, with earth continuity, insulation resistance and substitute leakage testing covering the core checks required for PAT testing.
Mains-powered earth leakage, touch current and portable RCD testing provide additional options for assessing a wider range of electrical equipment. Adjustable pass limits and test durations allow the tester to be configured for different appliance types and testing requirements, while lead resistance nulling helps improve measurement accuracy. Battery-powered operation supports testing where mains power is unavailable, and the rugged rubber over-moulding and toughened Gorilla glass provide protection during regular field use. The kit includes accessories to support efficient testing and record keeping.
PAT Testing Kit Comparison Guide
|
|
Small Business PAT Testing Kit |
Landlords PAT Testing Kit |
Maintenance PAT Testing Kit |
Industrial PAT Testing Kit |
|
Test Meter Kit Bag |
✔ |
✔ |
✔ |
x 2 |
|
PAT Register Book |
✔ |
✔ |
✔ |
✔ |
|
PAT Certificate Pad |
✔ |
✔ |
✔ |
✔ |
|
Test Meter PRO TMP989 230V 13A Socket Tester |
✔ |
✔ |
||
|
IEC Cloverleaf Adaptor |
✔ |
|||
|
IEC Adaptor Kit |
✔ |
✔ |
✔ |
|
|
500 Pass labels |
x 2 |
x 2 |
x 2 |
x 2 |
|
250 Pass Wrap labels |
✔ |
x2 |
x 2 |
x 2 |
|
200 Fail labels |
✔ |
✔ |
✔ |
✔ |
|
250 Tuff Tag Cable Wrap Labels |
✔ |
✔ |
||
|
16A 110V Appliance Adaptor and Extension Lead Adaptor |
✔ |
✔ |
||
|
PL13 230V 13A Plug Lockout & Padlock |
✔ |
✔ |
||
|
16A 230V Appliance Adaptor and Extension Lead Adaptor |
✔ |
✔ |
||
|
32A 110V Appliance Adaptor and IEC Extension Lead Adaptor |
✔ |
|||
|
32A 230V Appliance Adaptor and Extension Lead Adaptor |
✔ |
|||
|
16A & 32A 4 and 5 Pin Appliance Adaptors and IEC Extension Lead Adaptors |
✔ |
- Complies fully with the latest version of the IET Code of Practice
- Simple pass fail indication & measurement with adjustable PASS limits
- Rugged and hard wearing design
- Rechargeable version available (Megger PAT150R)
- Battery powered, portable design
- Includes 250V Insulation testing for surge protected extension leads.
- Automatic test sequences for Class I, Class II, Extension/Power leads
- 10mA and 30mA Portable RCD lead testing options
- Substitute and Mains powered leakage testing
Environmental Conditions
- Operating ambient: 20°C
- Humidity: Nominal humidity
Continuity Test
- Test voltage: Compliance Voltage: +4V dc, –0 % /+10 % (open circuit)
- Test current: Bi-directional +200mA, -0% + 50mA (into 2Ω load)
- Continuity accuracy: Resistance: ± 5% ± 3 digits (0 to 19.99 Ω)
- Resistance resolution: 10 mΩ
- Display range: 0.01 to 19.99Ω
- Continuity test nulling: up to 9.99 Ω
- Test time: User selectable from 2 sec to 20 sec or selected during test to 180sec
Insulation Test
- Insulation test: 250V dc –0 % /+25 % open circuit, 500V dc –0 % /+25 % open circuit, ≥ 500V 0% dc across 0.5 MΩ load
- Short circuit/charge current: < 2mA dc
- Insulation accuracy: ±3% ±10 digits (0 to 19.99 MΩ)
- Resolution: 0.01 MΩ
- Display range: 0.10 MΩ to 99.99 MΩ
- Test duration: User selectable from 2 sec to 20 sec or selected during test to 180sec
Substitute Leakage Test
- Leakage current: Accuracy ± 5% ± 3 digits
- Test frequency: Nominal mains frequency 50Hz
- Test voltage: < 50V ac
- Resolution: 0.01mA
- Display range: 0.10 to 19.99mA
- Test duration: User selectable from 2 sec to 5 seconds
- Reading corrected to 230V ac.
Touch Current Test
- Test voltage: Nominal mains 230 V ac
- Test frequency: Nominal mains 50 Hz
- Test accuracy: ± 5% ± 3 digits
- Resolution: 0.01 mA
- Display range: 0.10 to 3.99 mA
- Test duration: User selectable from 2 sec to 5 sec
SELV Device Test
- Test voltage: 0 to 300 V ac
- Measurement accuracy: ± 3% ± 3 digits
- Resolution: 0.1 V ac
- Display range: 0.1 to 300 V ac
Extension Lead Test
Test includes Insulation and Bond tests.
- Test voltage: 5V
- Polarity: Lead OK, Live/neutral shorted, Live/neutral reversed, Live/neutral open circuit
Portable RCD Test
- Test voltage: Nominal mains 230 V
- Test frequency: 50Hz
- Test current accuracy: +2% to +8% (1 x I, 5 x I)
- Trip time accuracy: ±1% ± 1ms
- Trip time resolution: 0.01ms
- Display range: 0 to 200ms (1 x I), 0 to 40ms (5 x I)
Mains Supply Test
- Frequency measurement range: 50 Hz
- Test voltage: 40 to 300V ac
- Accuracy: ± 3% ± 3 digits
- Resolution: 0.1Vac
- Display range: 40 to 300V ac
Circuit Test
Carried out automatically, not available to user.
- Test voltage: 5V
- Test frequency: Nominal Mains 50 Hz
- Test current: < 100mA short circuit
Safety
- Instrument designed to IEC 61010-1: 2012
- Test leads designed to IEC 61010-031: 2005
- 300 volts to Earth Category II
- Mains fuse protection to 250 volts rms ac
EMC
- Design to meet IEC 61326-1: 2006 and IEC 61326-2-2: 2005.
Environmental
- Operating temperature range: 0°C to +40°C
- Storage temperature range: -20°C to +60°C
- Humidity: 90%RH @ +10°C +30°C, 75%RH @ +30°C to +40°C
- Maximum altitude: 2,000m to full safety spec.
- IP rating: IP40 (with front cover closed)
General
- Battery: Supply voltage, 12 Vdc (Alkaline AA LR6), 9.6 Vdc (NiMH AA LR6)
- Weight (PAT150 Only): 1300g
- Weight (Shipping): 2795g / 2975g for PAT150R
- Dimensions: 203 x 148 x 78mm
- Megger Part Number: 1003-064 / 1003-428 (rechargable model)

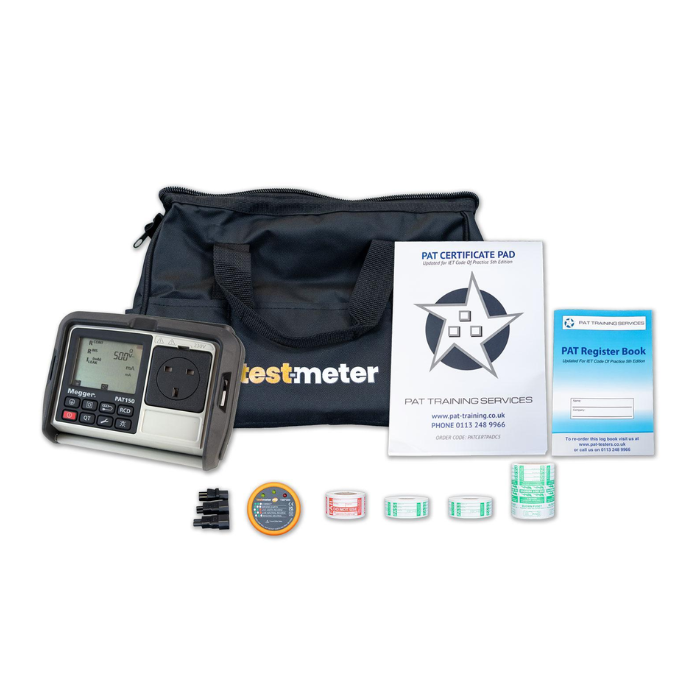

- Megger PAT150 tester
- Test-Meter Kit Bag
- PAT Register Book
- PAT Certificate Pad
- Test Meter PRO TMP989 230V 13A Socket Tester
- IEC Adaptor Kit
- 2x 500 Pass labels
- 250 Pass Wrap labels
- 200 Fail labels
