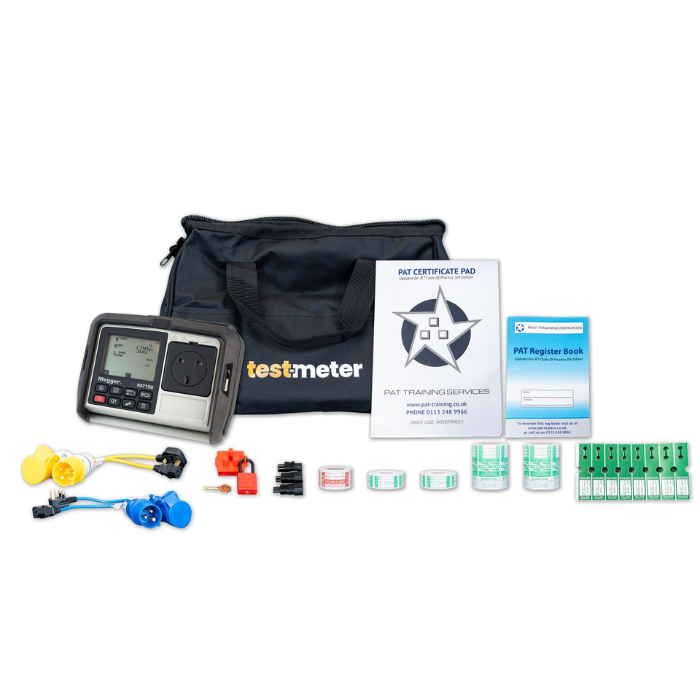

Megger PAT150R Maintenance PAT Testing Kit

The Megger PAT150R Maintenance PAT Testing Kit is a practical solution for maintenance teams that need to test a wide range of electrical equipment across workplaces, workshops, warehouses and other facilities. The PAT150R performs earth bond continuity, insulation resistance, polarity and substitute leakage testing, with automatic test sequences for Class I and Class II appliances, IEC equipment and extension leads helping to speed up routine inspections.

Portable RCD testing and earth/touch leakage current measurements provide additional testing options where required, while the backlit display and clear PASS/FAIL indications make results straightforward to interpret. Rechargeable batteries and an integrated charger allow the tester to be moved between work areas without relying on mains power. As the PAT150R does not have onboard memory, the supplied documentation can be used for manual record keeping. The kit includes a range of adaptors and accessories to support different maintenance applications.

PAT Testing Kit Comparison Guide

• Complete PAT testing kit tailored for maintenance departments and facilities teams
• Automatic Class I, Class II, IEC lead and extension lead testing
• Performs essential PAT tests plus RCD and leakage current measurements
• Includes industrial testing accessories for wider appliance compatibility
• Supplied with 110V and 230V appliance and extension lead adaptors
• IEC Adaptor Kit supports testing of IT and office equipment
• Rechargeable PAT tester with integrated battery charger
• Includes Tuff Tag Cable Wrap Labels for durable cable identification
• Plug lockout and padlock improve safety during maintenance and fault investigation
• Comprehensive documentation and labelling accessories for efficient record keeping
• Portable kit bag keeps equipment organised and ready for site work

Environmental Conditions

• Operating ambient: 20°C
• Humidity: Nominal humidity

Continuity Test

• Test voltage: Compliance Voltage: +4V dc, –0 % /+10 % (open circuit)
• Test current: Bi-directional +200mA, -0% + 50mA (into 2Ω load)
• Continuity accuracy: Resistance: ± 5% ± 3 digits (0 to 19.99 Ω)
• Resistance resolution: 10 mΩ
• Display range: 0.01 to 19.99Ω
• Continuity test nulling: up to 9.99 Ω
• Test time: User selectable from 2 sec to 20 sec or selected during test to 180sec

Insulation Test

• Insulation test: 250V dc –0 % /+25 % open circuit, 500V dc –0 % /+25 % open circuit, ≥ 500V 0% dc across 0.5 MΩ load
• Short circuit/charge current: < 2mA dc
• Insulation accuracy: ±3% ±10 digits (0 to 19.99 MΩ)
• Resolution: 0.01 MΩ
• Display range: 0.10 MΩ to 99.99 MΩ
• Test duration: User selectable from 2 sec to 20 sec or selected during test to 180sec

Substitute Leakage Test

• Leakage current: Accuracy ± 5% ± 3 digits
• Test frequency: Nominal mains frequency 50Hz
• Test voltage: < 50V ac
• Resolution: 0.01mA
• Display range: 0.10 to 19.99mA
• Test duration: User selectable from 2 sec to 5 seconds
• Reading corrected to 230V ac.

Touch Current Test

• Test voltage: Nominal mains 230 V ac
• Test frequency: Nominal mains 50 Hz
• Test accuracy: ± 5% ± 3 digits
• Resolution: 0.01 mA
• Display range: 0.10 to 3.99 mA
• Test duration: User selectable from 2 sec to 5 sec

SELV Device Test

• Test voltage: 0 to 300 V ac
• Measurement accuracy: ± 3% ± 3 digits
• Resolution: 0.1 V ac
• Display range: 0.1 to 300 V ac

Extension Lead Test

Test includes Insulation and Bond tests.

• Test voltage: 5V
• Polarity: Lead OK, Live/neutral shorted, Live/neutral reversed, Live/neutral open circuit

Portable RCD Test

• Test voltage: Nominal mains 230 V
• Test frequency: 50Hz
• Test current accuracy: +2% to +8% (1 x I, 5 x I)
• Trip time accuracy: ±1% ± 1ms
• Trip time resolution: 0.01ms
• Display range: 0 to 200ms (1 x I), 0 to 40ms (5 x I)

Mains Supply Test

• Frequency measurement range: 50 Hz
• Test voltage: 40 to 300V ac
• Accuracy: ± 3% ± 3 digits
• Resolution: 0.1Vac
• Display range: 40 to 300V ac

Circuit Test

Carried out automatically, not available to user.

• Test voltage: 5V
• Test frequency: Nominal Mains 50 Hz
• Test current: < 100mA short circuit

Safety

• Instrument designed to IEC 61010-1: 2012
• Test leads designed to IEC 61010-031: 2005
• 300 volts to Earth Category II
• Mains fuse protection to 250 volts rms ac

EMC

• Design to meet IEC 61326-1: 2006 and IEC 61326-2-2: 2005.

Environmental

• Operating temperature range: 0°C to +40°C
• Storage temperature range: -20°C to +60°C
• Humidity: 90%RH @ +10°C +30°C, 75%RH @ +30°C to +40°C
• Maximum altitude: 2,000m to full safety spec.
• IP rating: IP40 (with front cover closed)

General

• Battery: Supply voltage, 12 Vdc (Alkaline AA LR6), 9.6 Vdc (NiMH AA LR6)
• Weight (PAT150 Only): 1300g
• Weight (Shipping): 2795g / 2975g for PAT150R
• Dimensions: 203 x 148 x 78mm
• Megger Part Number: 1003-064 / 1003-428 (rechargable model)

• Megger PAT150R Tester
• Test-Meter Kit Bag
• PAT Register Book
• PAT Certificate Pad
• IEC Adaptor Kit
• 2x 500 Pass labels
• 2x 250 Pass Wrap labels
• 200 Fail labels
• 250 Tuff Tag Cable Wrap Labels
• 16A 110V Appliance Adaptor and Extension Lead Adaptor
• PL13 230V 13A Plug Lockout & Padlock
• 16A 230V Appliance Adaptor and Extension Lead Adaptor
