Megger PAT150R Small Business PAT Testing Kit
Currently unavailable for purchase
The Megger PAT150R Small Business PAT Testing Kit is a practical solution for businesses carrying out routine portable appliance testing in-house. The PAT150R performs essential tests including earth bond continuity, insulation resistance, polarity and substitute leakage, with automatic test sequences for Class I and Class II appliances, IEC equipment and extension leads helping to speed up routine inspections.
Portable RCD testing and earth/touch leakage current measurements provide additional testing options where required, while clear PASS/FAIL indications and a backlit display make results straightforward to interpret. Its rechargeable battery system allows the tester to be used without mains power, and the integrated charger makes it convenient to recharge between testing sessions. As a manual PAT tester without onboard memory, it is suited to businesses that prefer straightforward operation and manual record keeping. The kit includes accessories to support testing, socket checks and documentation.
PAT Testing Kit Comparison Guide
|
|
Small Business PAT Testing Kit |
Landlords PAT Testing Kit |
Maintenance PAT Testing Kit |
Industrial PAT Testing Kit |
|
Test Meter Kit Bag |
✔ |
✔ |
✔ |
x 2 |
|
PAT Register Book |
✔ |
✔ |
✔ |
✔ |
|
PAT Certificate Pad |
✔ |
✔ |
✔ |
✔ |
|
Test Meter PRO TMP989 230V 13A Socket Tester |
✔ |
✔ |
||
|
IEC Cloverleaf Adaptor |
✔ |
|||
|
IEC Adaptor Kit |
✔ |
✔ |
✔ |
|
|
500 Pass labels |
x 2 |
x 2 |
x 2 |
x 2 |
|
250 Pass Wrap labels |
✔ |
x2 |
x 2 |
x 2 |
|
200 Fail labels |
✔ |
✔ |
✔ |
✔ |
|
250 Tuff Tag Cable Wrap Labels |
✔ |
✔ |
||
|
16A 110V Appliance Adaptor and Extension Lead Adaptor |
✔ |
✔ |
||
|
PL13 230V 13A Plug Lockout & Padlock |
✔ |
✔ |
||
|
16A 230V Appliance Adaptor and Extension Lead Adaptor |
✔ |
✔ |
||
|
32A 110V Appliance Adaptor and IEC Extension Lead Adaptor |
✔ |
|||
|
32A 230V Appliance Adaptor and Extension Lead Adaptor |
✔ |
|||
|
16A & 32A 4 and 5 Pin Appliance Adaptors and IEC Extension Lead Adaptors |
✔ |
- Complete PAT testing kit designed specifically for small businesses
- Automatic Class I, Class II and extension lead test sequences for faster testing
- Performs advanced tests including portable RCD testing and leakage current measurement
- Integrated rechargeable battery system with built-in charger
- Clear PASS/FAIL indications and backlit display for easy result interpretation
- Includes PAT register book, certificate pad and appliance labels for full documentation
- IEC adaptor kit supports testing of IT and office equipment
- Supplied in a portable Test-Meter kit bag for easy transport and storage
Environmental Conditions
- Operating ambient: 20°C
- Humidity: Nominal humidity
Continuity Test
- Test voltage: Compliance Voltage: +4V dc, –0 % /+10 % (open circuit)
- Test current: Bi-directional +200mA, -0% + 50mA (into 2Ω load)
- Continuity accuracy: Resistance: ± 5% ± 3 digits (0 to 19.99 Ω)
- Resistance resolution: 10 mΩ
- Display range: 0.01 to 19.99Ω
- Continuity test nulling: up to 9.99 Ω
- Test time: User selectable from 2 sec to 20 sec or selected during test to 180sec
Insulation Test
- Insulation test: 250V dc –0 % /+25 % open circuit, 500V dc –0 % /+25 % open circuit, ≥ 500V 0% dc across 0.5 MΩ load
- Short circuit/charge current: < 2mA dc
- Insulation accuracy: ±3% ±10 digits (0 to 19.99 MΩ)
- Resolution: 0.01 MΩ
- Display range: 0.10 MΩ to 99.99 MΩ
- Test duration: User selectable from 2 sec to 20 sec or selected during test to 180sec
Substitute Leakage Test
- Leakage current: Accuracy ± 5% ± 3 digits
- Test frequency: Nominal mains frequency 50Hz
- Test voltage: < 50V ac
- Resolution: 0.01mA
- Display range: 0.10 to 19.99mA
- Test duration: User selectable from 2 sec to 5 seconds
- Reading corrected to 230V ac.
Touch Current Test
- Test voltage: Nominal mains 230 V ac
- Test frequency: Nominal mains 50 Hz
- Test accuracy: ± 5% ± 3 digits
- Resolution: 0.01 mA
- Display range: 0.10 to 3.99 mA
- Test duration: User selectable from 2 sec to 5 sec
SELV Device Test
- Test voltage: 0 to 300 V ac
- Measurement accuracy: ± 3% ± 3 digits
- Resolution: 0.1 V ac
- Display range: 0.1 to 300 V ac
Extension Lead Test
Test includes Insulation and Bond tests.
- Test voltage: 5V
- Polarity: Lead OK, Live/neutral shorted, Live/neutral reversed, Live/neutral open circuit
Portable RCD Test
- Test voltage: Nominal mains 230 V
- Test frequency: 50Hz
- Test current accuracy: +2% to +8% (1 x I, 5 x I)
- Trip time accuracy: ±1% ± 1ms
- Trip time resolution: 0.01ms
- Display range: 0 to 200ms (1 x I), 0 to 40ms (5 x I)
Mains Supply Test
- Frequency measurement range: 50 Hz
- Test voltage: 40 to 300V ac
- Accuracy: ± 3% ± 3 digits
- Resolution: 0.1Vac
- Display range: 40 to 300V ac
Circuit Test
Carried out automatically, not available to user.
- Test voltage: 5V
- Test frequency: Nominal Mains 50 Hz
- Test current: < 100mA short circuit
Safety
- Instrument designed to IEC 61010-1: 2012
- Test leads designed to IEC 61010-031: 2005
- 300 volts to Earth Category II
- Mains fuse protection to 250 volts rms ac
EMC
- Design to meet IEC 61326-1: 2006 and IEC 61326-2-2: 2005.
Environmental
- Operating temperature range: 0°C to +40°C
- Storage temperature range: -20°C to +60°C
- Humidity: 90%RH @ +10°C +30°C, 75%RH @ +30°C to +40°C
- Maximum altitude: 2,000m to full safety spec.
- IP rating: IP40 (with front cover closed)
General
- Battery: Supply voltage, 12 Vdc (Alkaline AA LR6), 9.6 Vdc (NiMH AA LR6)
- Weight (PAT150 Only): 1300g
- Weight (Shipping): 2795g / 2975g for PAT150R
- Dimensions: 203 x 148 x 78mm
- Megger Part Number: 1003-064 / 1003-428 (rechargable model)

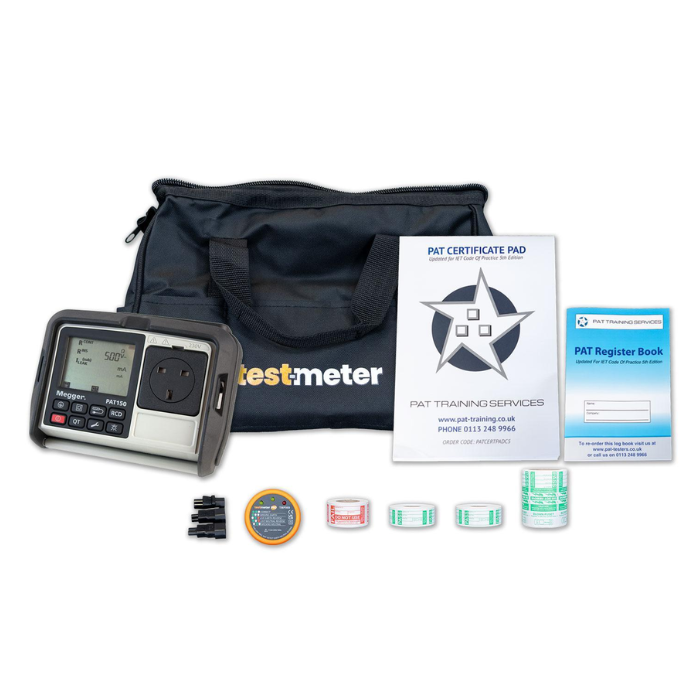

- Megger PAT150R Tester
- Test-Meter Kit Bag
- PAT Register Book
- PAT Certificate Pad
- Test Meter PRO TMP989 230V 13A Socket Tester
- IEC Adaptor Kit
- 2x 500 Pass labels
- 250 Pass Wrap labels
- 200 Fail labels
