Megger PAT410 Kit A

  • Internal memory with space for 10,000 result sets
  • QWERTY keyboard and function buttons allow speedy, straightforward operation
  • An ideal tester for heavy workloads in residential and commercial settings

£989.00 EXC. VAT

IN STOCK

Description

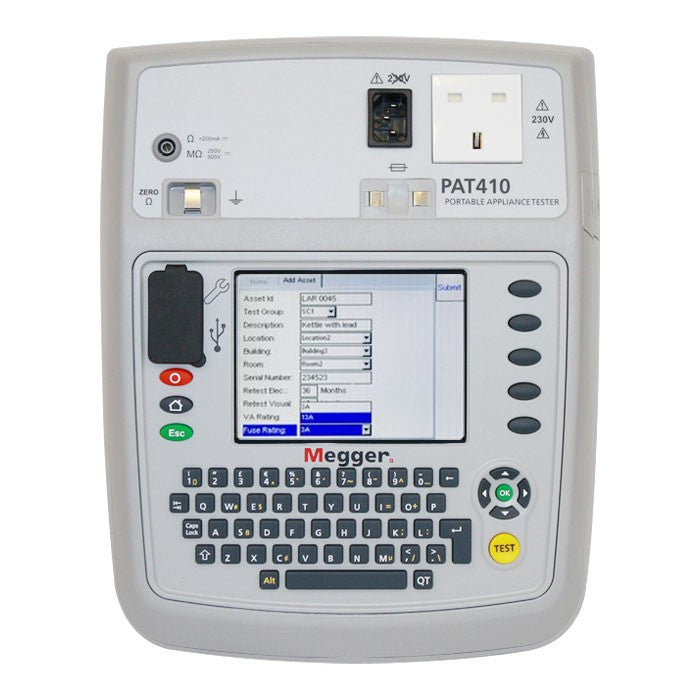

The Megger PAT410 Portable Appliance Tester is optimised to provide high speed PAT testing with an onboard memory for storing up to 10,000 results and download functionality.

Perfect for use in both domestic and commercial environments, the Megger PAT 410 allows users to define their own auto test sequences for rapid appliance testing. Complete with a QWERTY keyboard and direct access buttons for straightforward operation and accurate data entry, the PAT410 will greatly improve the efficiency of any PAT testing operation.

Megger PAT410 PAT Testing Kit A Includes:

  • Megger PAT410 PAT Tester (complete with Earth Bond Test Lead, 230V Extension Lead Adaptor, IEC Clover Leaf Adaptor, PAT410 Instruction Manual, Calibration Certificate and Carry Case).
  • Megger Powersuite Pro Lite PAT Software
  • 110V Appliance Adaptor
  • 110V Extension Lead Adaptor
  • IEC Adaptor Kit
  • 1000 Pass Labels
  • 400 Fail Labels
  • 250 PassWrap Cable Labels

For more detailed information on the Megger PAT410 Portable Appliance Tester please click here.

  Kit A Kit B Kit C Kit D Kit E
Megger PAT410
Megger Powersuite Pro Lite PAT Software
Megger Powersuite Professional Contractor PAT Software
Megger PAT Label Printer
2 x Megger PAT Label Cartridges
Megger Barcode Scanner
Microwave Leakage Detector
150 Microwave Emission Labels
IEC Clover Leaf Adapter
IEC PAT Adaptor Kit
110V Appliance Adaptor
110V Extension Lead Adaptor
Pass Labels 1000 500 1000 1000 1000
Fail Labels 400 200 400 400 400
PassWrap Cable Labels 250   250 250 250
230V Extension Lead Adaptor
Calibration Certificate
PAT410 Carry Case

Specification

Continuity test (200mA)

  • Voltage: 4V DC
  • Resistance accuracy: ±5% ±3 digits (0 to 0.49 Ω), ±5% ±5 digits 0.5 to .99 Ω)
  • Resistance resolution: 10 mΩ (1 to 19.99 Ω)
  • Display range: 0 to 19.99 Ω

Insulation test (250/500V)

  • Resistance accuracy: ±2% ±5 digits (0 to 19.99 MΩ), ±5% ±10 digits (20 to 99.99 MΩ)
  • Resistance resolution: 0.01 MΩ
  • Display range: 0 to 99.99 MΩ

Substitute leakage test

  • Voltage: 40V AC nominal mains frequency
  • Current accuracy: ±5% ±5 digits
  • Current resolution: 0.01mA
  • Display range: 0 to 19.99mA

Differential leakage test

  • Voltage: Nominal mains supply
  • Current accuracy: ±5% ±5 digits
  • Current resolution: 0.01mA
  • Display range: 0 to 19.99mA

Touch current test

  • Voltage: Nominal mains supply
  • Current accuracy: ±5% ±5 digits
  • Current resolution: 0.01mA
  • Display range: 0 to 10mA

Operational test

  • Voltage: Nominal mains supply
  • VA accuracy: ±5% ±10 digits (0 - 99 VA), ±5% ±50 digits (100 VA - 999 VA), ±5% ±100 digits (1000 VA - 3700 VA)
  • Resolution: 1 VA (0 to 3700 VA)
  • Display range: 0 to 3999 VA

Extension lead test

  • Tests performed: Bond, insulation and polarity
  • Polarity test voltage: 12V
  • Polarity checks: Lead OK, Live neutral S/C, Live neutral reversed, Live/neutral O/C

Portable RCD test

  • Voltage: Nominal mains supply
  • Current accuracy: -8% to -2% (1/2 x I), +2% to +8% (1 x I, 5 x I)
  • Trip time accuracy: ±1% ±5 digits
  • Trip time resolution: 0.1ms
  • Display range: 0 to 1999 ms (1/2 x I), 0 to 300 ms (1 x I), 0 to 40 ms (5 x I)

Fuse test

  • Voltage: 3.3V
  • Warning: Audible bleep if fuse is OK
  • Supply range: 230V at 50Hz
  • Compliance: IEC 61010-1, CAT II 300V, IEC 61326-1, 61326-2-2
  • Dimensions: 145 x 255 x 320mm
  • Weight: 2.7kg

Supplied Accessories

Megger PAT410 Kit A comes with:

  • Megger PAT410 PAT Tester (complete with Earth Bond Test Lead, 230V Extension Lead Adaptor, IEC Clover Leaf Adaptor, PAT410 Instruction Manual, Calibration Certificate and Carry Case).
  • Megger Powersuite Pro Lite PAT Software
  • 110V Appliance Adaptor
  • 110V Extension Lead Adaptor
  • IEC Adaptor Kit
  • 1000 Pass Labels
  • 400 Fail Labels
  • 250 PassWrap Cable Labels
