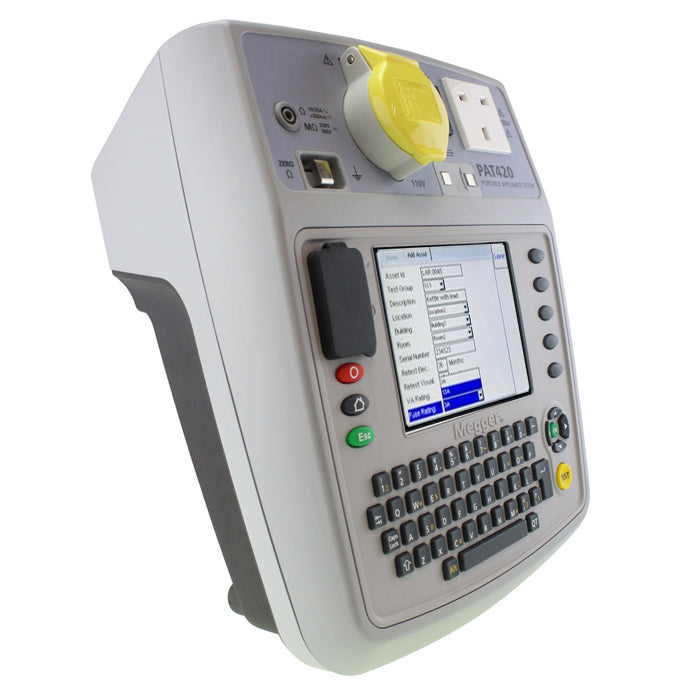

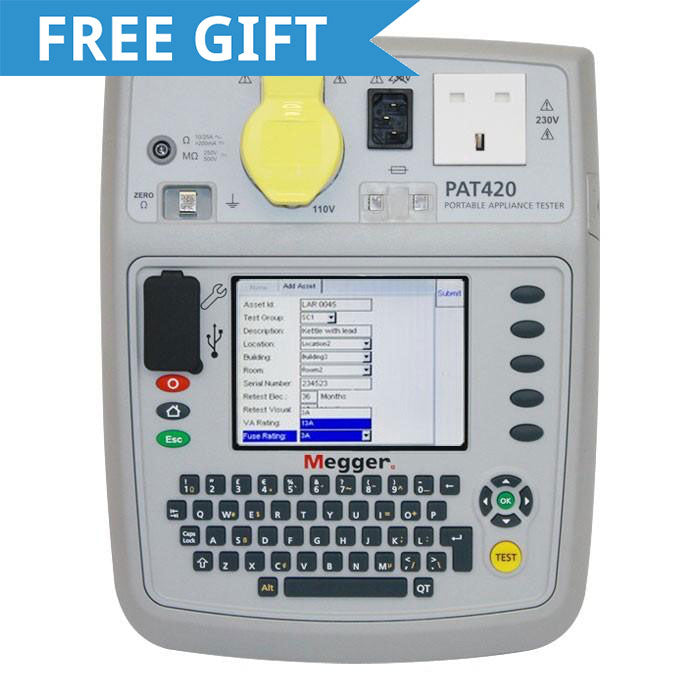

Megger PAT420 PAT Tester

  • Suitable for appliance testing at 230V and 110V
  • Enormous internal memory has space for up to 10,000 results
  • Suitable for multiple applications in domestic, commercial and industrial environments

£940.00 EXC. VAT

IN STOCK

Description

The Megger PAT420 is an advanced portable appliance tester offering 230V and 110V operation, a massive onboard memory and download functionality. The PAT420 fully complies with the IEE Code of Practice and is an ideal choice for full-time industrial or commercial PAT testers.

PAT testing can be performed in either manual or fully customisable automatic mode, with user defined Pass/Fail limits and test sequences. In addition the Megger PAT420 portable appliance tester is efficient at handling test results with an onboard memory that will hold up to 10,000 records; these can then be downloaded via USB to a PC for further trending and analysis.

The Megger 420 PAT Tester improves productivity without compromising on the quality or accuracy of testing and the addition of a QWERTY keyboard for fast data entry and 5 hot-keys that give direct access to frequently used functions make for an extremely intuitive appliance tester.

Equally at home in commercial, industrial and construction environments, the PAT420 is a popular choice with electrical contractors looking to perform high volume, regular and efficient electrical safety testing.

Key Features

  • Equipped with 110V socket for testing industrial appliances
  • Extended PAT testing abilities including 250V insulation and RCD testing
  • Huge 10,000 record memory with download functionality
  • Large full colour display with test data and outcome
  • Instant re-start retains test data when temporarily unplugged
  • Direct access keys and QWERTY keyboard for efficient operation
  PAT320 PAT350 PAT410 PAT420 PAT450
Earth Bond Test
IT Safe (200mA test current)
Insulation Test (250V, 500V)
Substitute Leakage Test
Differential Leakage Test
Touch Current Test
Portable RCD Test
Extension Lead Test
Fuse Test
Operational Test
Flash Test
230V and 110V Operation
Internal Memory (10,000 results)
Downloadable (USB)
QWERTY Keyboard

Specification

Earth Bond test (10A and 25A)

  • Open circuit voltage: 9V AC (Supply 230V)
  • Resistance accuracy: ±5% ±3 digits (0 to 0.49 Ω), ±5% ±5 digits 0.5 to .99 Ω)
  • Resistance resolution: 10 mΩ (0 to 1.99 Ω)
  • Display range: 0 to 1.99 Ω

Continuity test (200mA)

  • Voltage: 4V DC
  • Resistance accuracy: ±5% ±3 digits (0 to 0.49 Ω), ±5% ±5 digits 0.5 to .99 Ω)
  • Resistance resolution: 10 mΩ (1 to 19.99 Ω)
  • Display range: 0 to 19.99 Ω

Insulation test (250/500V)

  • Resistance accuracy: ±2% ±5 digits (0 to 19.99 MΩ), ±5% ±10 digits (20 to 99.99 MΩ)
  • Resistance resolution: 0.01 MΩ
  • Display range: 0 to 99.99 MΩ

Substitute leakage test

  • Voltage: 40V AC nominal mains frequency
  • Current accuracy: ±5% ±5 digits
  • Current resolution: 0.01mA
  • Display range: 0 to 19.99mA

Differential leakage test

  • Voltage: Nominal mains supply
  • Current accuracy: ±5% ±5 digits
  • Current resolution: 0.01mA
  • Display range: 0 to 19.99mA

Touch current test

  • Voltage: Nominal mains supply
  • Current accuracy: ±5% ±5 digits
  • Current resolution: 0.01mA
  • Display range: 0 to 10mA

Operational test

  • Voltage: Nominal mains supply
  • VA accuracy: ±5% ±10 digits (0 - 99 VA), ±5% ±50 digits (100 VA - 999 VA), ±5% ±100 digits (1000 VA - 3700 VA)
  • Resolution: 1 VA (0 to 3700 VA)
  • Display range: 0 to 3999 VA

Extension lead test

  • Tests performed: Bond, insulation and polarity
  • Polarity test voltage: 12V
  • Polarity checks: Lead OK, Live neutral S/C, Live neutral reversed, Live/neutral O/C

Portable RCD test

  • Voltage: Nominal mains supply
  • Current accuracy: -8% to -2% (1/2 x I), +2% to +8% (1 x I, 5 x I)
  • Trip time accuracy: ±1% ±5 digits
  • Trip time resolution: 0.1ms
  • Display range: 0 to 1999 ms (1/2 x I), 0 to 300 ms (1 x I), 0 to 40 ms (5 x I)

Fuse test

  • Voltage: 3.3V
  • Warning: Audible bleep if fuse is OK
  • Supply range: 230V at 50Hz, 110V at 50Hz
  • Compliance: IEC 61010-1, CAT II 300V, IEC 61326-1, 61326-2-2
  • Dimensions: 180 x 255 x 320mm
  • Weight: 4.4kg

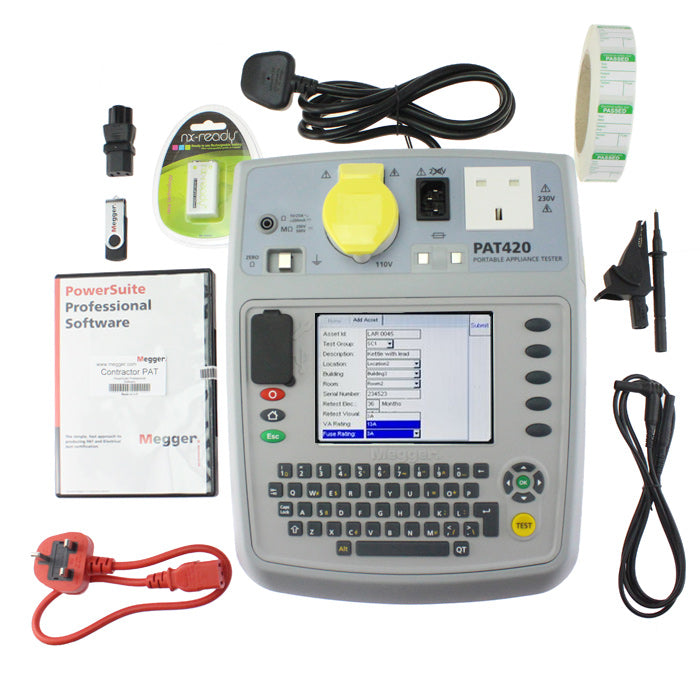

Supplied Accessories

The Megger PAT420 comes with:

  • Earth Bond Test Lead
  • Extension Lead Adaptor
  • Cloverleaf Adaptor
  • Calibration Certificate
  • Instruction Manual & CD
  • Carry Case

Kit Options

The Megger PAT420 PAT Tester is available in a range of kits:

  Kit A Kit B Kit C Business in a Box
Megger PAT420 Tester
Megger Powersuite Pro Lite PAT Software
Megger Powersuite Professional Contractor PAT Software
IEC Clover Leaf Adaptor
IEC PAT Adaptor Kit
Megger PAT Label Printer
Megger PAT Label Cartridges 2 2 2
110V Extension Lead Adaptor
Pass Labels 500 1000 1000 1000
Fail Labels 200 400 400 200
250 PassWrap Cable Labels
Megger Barcode Scanner
Microwave Leakage Detector
150 Microwave Emissions Labels
Megger Guide to PAT Testing
Guide to Marketing a PAT Testing Business
Earth Bond Test Lead
230V Extension Lead Adaptor
Calibration Certificate
PAT420 Carry Case
