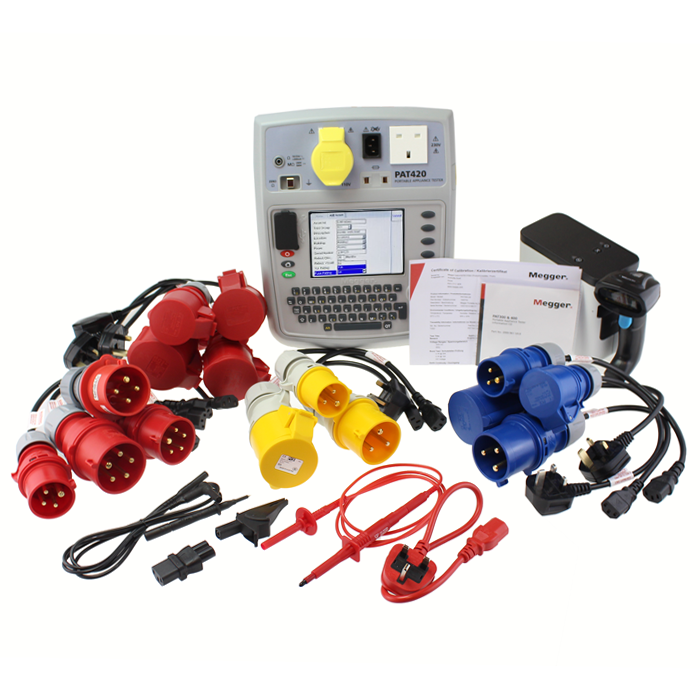

Megger PAT420 Industrial PAT Testing Kit

£1,159.00 EXC. VAT

IN STOCK

Description

The Megger PAT420 Industrial PAT Testing Kit is useful kit that contains the powerful Megger PAT420 PAT Tester, a comprehensive set of PAT adaptors, a PAT label printer and a barcode scanner.

Various functions make the Megger PAT420 suitable for large-scale PAT testing in domestic, commercial and industrial environments. It can perform earth bond testing, insulation resistance testing, load & run testing, differential/substitute/touch leakage measurement, PRCD trip time measurement, and polarity checking. It has a 110V/16A test socket built as standard.

The Megger PAT420’s large internal memory (10,000 readings) automatically records results and they can be saved in a logical database format. The user can add notes with the QWERTY keyboard and it has a strong construction capable of withstanding the challenges of day-to-day use. Automatic test sequences are available for Class I and Class II appliances as well as extension leads and there are individual buttons for triggering single tests.

Several adaptors are included in the Megger PAT420 Industrial PAT Kit. Both appliance and extension leads adaptors are included for 110V/32A equipment, 230V/16A equipment and 230V/32A equipment. Furthermore, there are four- and five-pin adaptors for 415V/16A and 415V/32A three-phase equipment as well as an adaptor for 110V/16A extension leads.

The Megger PAT420 Industrial PAT Kit comes with the Megger PAT400 Label Printer which works together with the PAT tester to print customised, barcoded PAT labels for appliances and leads. These can then be read at a later date by the supplied Megger Barcode Scanner which - when connected to the tester - recalls appliance information immediately to screen, aiding the creation of consistent results database.

Megger PAT420 Industrial PAT Testing Kit Includes:

  • Megger PAT420 PAT Tester
  • Megger PAT400 PAT Label Printer
  • Megger Barcode Scanner
  • 110V/16A extension lead adaptor
  • 110V/32A appliance adaptor
  • 110V/32A extension lead adaptor
  • 230V/16A appliance adaptor
  • 230V/16A extension lead adaptor
  • 230V/32A appliance adaptor
  • 230V/32A extension lead adaptor
  • 415V/16A 4-pin appliance adaptor
  • 415V/32A 4-pin appliance adaptor
  • 415V/16A 4-pin extension lead adaptor
  • 415V/32A 4-pin extension lead adaptor
  • 415V/16A 5-pin appliance adaptor
  • 415V/32A 5-pin appliance adaptor
  • 415V/16A 5-pin extension lead adaptor
  • 415V/32A 5-pin extension lead adaptor
  Kit A Kit B Kit C Business in a Box Industrial Kit
Megger PAT420 Tester
Megger Powersuite Pro Lite PAT Software
Megger Powersuite Professional Contractor PAT Software
IEC Clover Leaf Adaptor
IEC PAT Adaptor Kit
Megger PAT Label Printer
Megger PAT Label Cartridges 2 2 2   2
110V Extension Lead Adaptor
110V Adaptor Set
230V Adaptor Set
415V Three-Phase Adaptor Set
Pass Labels 500 1000 1000 1000
Fail Labels 200 400 400 200
250 PassWrap Cable Labels
Megger Barcode Scanner
Microwave Leakage Detector
150 Microwave Emissions Labels
Megger Guide to PAT Testing
Guide to Marketing a PAT Testing Business
Earth Bond Test Lead
230V Extension Lead Adaptor
Calibration Certificate
PAT420 Carry Case

Specification

Earth Bond test (10A and 25A)

  • Open circuit voltage: 9V AC (Supply 230V)
  • Resistance accuracy: ±5% ±3 digits (0 to 0.49 Ω), ±5% ±5 digits 0.5 to .99 Ω)
  • Resistance resolution: 10 mΩ (0 to 1.99 Ω)
  • Display range: 0 to 1.99 Ω

Continuity test (200mA)

  • Voltage: 4V DC
  • Resistance accuracy: ±5% ±3 digits (0 to 0.49 Ω), ±5% ±5 digits 0.5 to .99 Ω)
  • Resistance resolution: 10 mΩ (1 to 19.99 Ω)
  • Display range: 0 to 19.99 Ω

Insulation test (250/500V)

  • Resistance accuracy: ±2% ±5 digits (0 to 19.99 MΩ), ±5% ±10 digits (20 to 99.99 MΩ)
  • Resistance resolution: 0.01 MΩ
  • Display range: 0 to 99.99 MΩ

Substitute leakage test

  • Voltage: 40V AC nominal mains frequency
  • Current accuracy: ±5% ±5 digits
  • Current resolution: 0.01mA
  • Display range: 0 to 19.99mA

Differential leakage test

  • Voltage: Nominal mains supply
  • Current accuracy: ±5% ±5 digits
  • Current resolution: 0.01mA
  • Display range: 0 to 19.99mA

Touch current test

  • Voltage: Nominal mains supply
  • Current accuracy: ±5% ±5 digits
  • Current resolution: 0.01mA
  • Display range: 0 to 10mA

Operational test

  • Voltage: Nominal mains supply
  • VA accuracy: ±5% ±10 digits (0 - 99 VA), ±5% ±50 digits (100 VA - 999 VA), ±5% ±100 digits (1000 VA - 3700 VA)
  • Resolution: 1 VA (0 to 3700 VA)
  • Display range: 0 to 3999 VA

Extension lead test

  • Tests performed: Bond, insulation and polarity
  • Polarity test voltage: 12V
  • Polarity checks: Lead OK, Live neutral S/C, Live neutral reversed, Live/neutral O/C

Portable RCD test

  • Voltage: Nominal mains supply
  • Current accuracy: -8% to -2% (1/2 x I), +2% to +8% (1 x I, 5 x I)
  • Trip time accuracy: ±1% ±5 digits
  • Trip time resolution: 0.1ms
  • Display range: 0 to 1999 ms (1/2 x I), 0 to 300 ms (1 x I), 0 to 40 ms (5 x I)

Fuse test

  • Voltage: 3.3V
  • Warning: Audible bleep if fuse is OK
  • Supply range: 230V at 50Hz, 110V at 50Hz
  • Compliance: IEC 61010-1, CAT II 300V, IEC 61326-1, 61326-2-2
  • Dimensions: 180 x 255 x 320mm
  • Weight: 4.4kg
