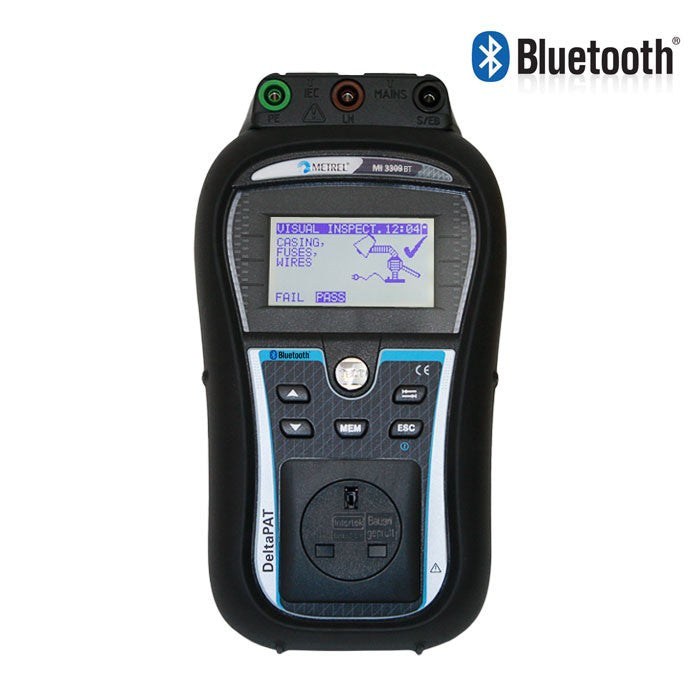

Metrel DeltaPAT BT PAT Tester

  • Metrel Android PAT App links up to user’s Android device
  • Remotely add appliance details to tester through Android keypad
  • PATLink Pro software downloads, reports and organises results

£689.00 EXC. VAT

IN STOCK

Description

The Metrel DeltaPAT Tester benefits from both battery powered and mains powered operation, allowing differential & touch leakage testing and has integrated P/RCD technology that prevents the mains RCD from tripping while measurements are being taken. In addition the DeltaPAT has inputs for PAT testing fixed appliances.

The tester is capable of standard PAT-testing functions such as earth bond testing at 200mA as well as insulation resistance testing at both 250V and 500V. Substitute and differential leakage testing can be used on Class 1 and Class 2 appliances whilst the polarity test is ideal for extension leads.

The Bluetooth-enabled DeltaPAT BT allows users to connect an android device to the tester and perform remote operation. Once the connected device has been used to set-up and commence the PAT test procedure, users are then able to simultaneously enter appliance data using the app.

Complete with a memory that stores up to 1500 test results with parameters and Metrel PATLink Pro software for downloading and importing PAT test data into reports, the Metrel DeltaPAT tester is ideal for testing large numbers of electrical appliances in a range of environments.

Key Features

  • Both battery- and mains-powered
  • Additional inputs for fixed appliance testing
  • Bluetooth connectivity to Metrel PATLink App
  • Unique PRCD testing function prevents mains RCD tripping
  • Integrated rechargeable battery unit
  DeltaPAT GammaPAT Lite GammaPAT Pro
Earth Bond Test (200mA)
Insulation Test (250V, 500V)
Insulation Test (50V, 500V)
Differential Leakage Test
Substitute Leakage Test
Polarity Test
Internal Memory 1500 results 1700 results 1700 results
Downloadable Optional
Bluetooth
Compatible with Metrel Android App
Comes with PATLinks Pro Software

Specification

Earth Continuity

  • Current: 200mA
  • Measuring Range: 0.00-1999 ohms

Insulation Resistance

  • Voltage: 250V or 500V DC
  • Measuring Range: 0.00-199.9 Mohms

Differential Leakage

  • Voltage: 230V AC
  • Measuring Range: 0.00-19.99mA

Touch Leakage

  • Voltage: 230V AC
  • Measuring Range: 0.00-7.0mA

Substitute Leakage

  • Voltage: 30V AC
  • Measuring Range: 0.00-20.0mA

P/RCD Testing

  • Currents: 10mA, 15mA, 30mA
  • Measuring Range: 0 ms - 300ms(½xI∆N) 0ms - 300ms(I∆N), 0ms - 40ms(5xI∆N)
  • Resolution: 0.1ms

Power Measurement

  • Voltage: 230V AC
  • Measuring Range: 0.00-4.00kVA

Voltage TRMS

  • Range: 80-300V
  • Overvoltage: CAT II/300V
  • Protection: Case IP40, Connectors IP20
  • Dimensions: 140 x 80 x 230mm
  • Weight: 1.2kg

Supplied Accessories

The Metrel DeltaPAT BT PAT Tester comes with:

  • Metrel MI3309 DeltaPAT Tester
  • IEC Test Lead
  • 3 x Test Leads
  • Crocodile Clips & Probes
  • USB & RS232 Download Leads
  • 6 x Rechargeable Batteries
  • DeltaPAT Instruction Manual
  • Calibration Certificate
  • Carry Case
  • Metrel aPAT App
  • Metrel PATLink Pro PAT Software
  • 2 x Pass Labels
  • Fail Labels
  • IEC Clover Leaf Adaptor
