Metrel GammaPAT Lite Kit A

  • A cost-effective PAT testing kit for beginners
  • Integrated PAT checkbox ensures accuracy across the board
  • Microwave leakage detector, labels, log book and certificate pad

£569.00 EXC. VAT

IN STOCK

Description

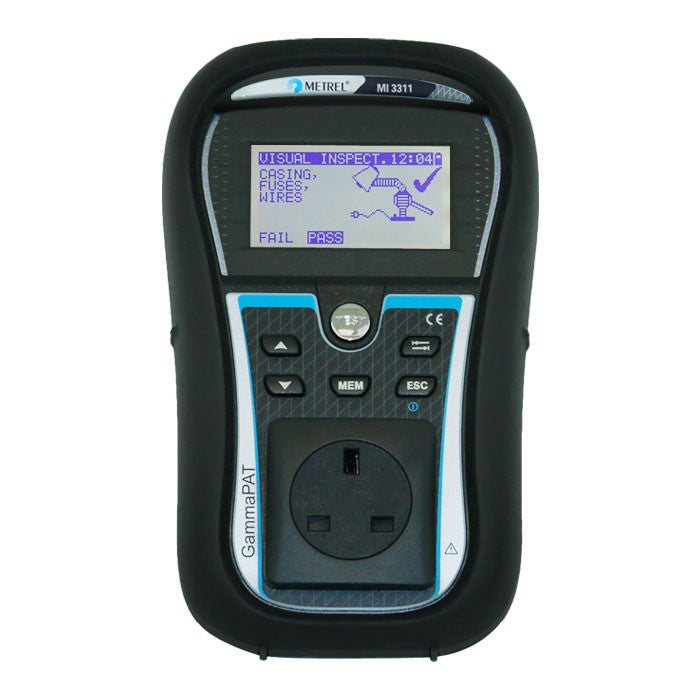

The Metrel GammaPAT Lite provides quick and accurate electrical testing of Class I and Class II appliances and IEC Leads. The GammaPAT portable appliance tester comes complete with a built in calibration checkbox allowing users to check the ongoing accuracy of the tester.

PAT testing can be performed in either simple or auto mode with test values and Pass/Fail indication clearly displayed upon completion of each test. In addition the Metrel GammaPAT tester has a built in charger ensuring that a full day of PAT testing can be performed.

The MI3311 GammaPAT Lite also has an onboard memory capable of storing up to 1700 test results complete with appliance ID/description. These can then be downloaded using additional PAT software found with the Metrel GammaPAT Pro Kits.

The Metrel GammaPAT Lite is the ideal choice for both novice and more advanced users with a moderate number of appliances to test.

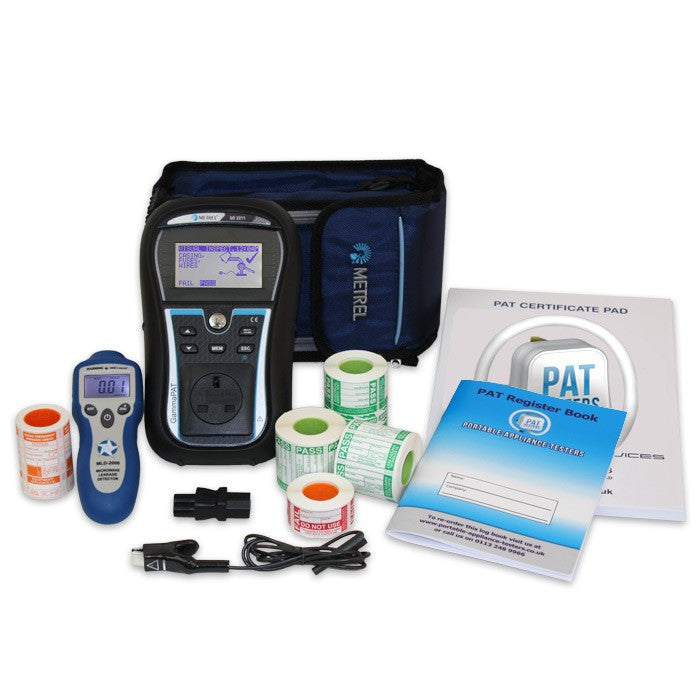

Metrel GammaPAT Lite Test Kit A Includes:

  • Metrel MI3311 GammaPAT Lite PAT Tester (complete with Earth Test Lead, 230V Extension Lead Adaptor, GammaPAT Instruction Manual, 6 x Rechargeable Batteries, Calibration Certificate and Carry Case).
  • Microwave Leakage Detector
  • 50 Microwave Emission Labels
  • PAT Certificate Pad
  • PAT Register Book w/ Frequency of Inspection
  • IEC Clover Leaf Adaptor
  • 1000 Pass Labels
  • 200 Fail Labels
  • 250 PassWrap Cable Labels

For more detailed information on the Metrel GammaPAT Lite Portable Appliance Tester please click here.

Kit A Kit B
Metrel MI3311 GammaPAT Tester
Metrel TEK 989 Socket Tester
Microwave Leakage Detector
50 Microwave Emmisions Labels
PAT Register Book w/ Frequency of Inspection
PAT Certificate Pad
IEC Clover Leaf Adaptor
IEC PAT Adaptor Kit
110V Appliance Adaptor
110V Extension Lead Adaptor
1000 Pass Labels
200 Fail Labels
250 PassWrap Cable Labels
Earth Test Lead
230V Extension Lead Adaptor
Calibration Certificate
GammaPAT Carry Case
6 x Rechargeable Batteries

Specification

  • Earth Bond Continuity: Test current of 200mA
  • Insulation Test: 50V or 500V DC Measuring range: 0.1 - 19.99 Mohms
  • Substitute Leakage Test: Carried out at 40V DC
  • Insulation-S Test: Insulation resistance of isolated accessible conductive parts.
  • Substitute Leakage-S: Substitute leakage current of isolated accessible conductive parts
  • Polarity Test: IEC and Extension Lead internal wiring check.
  • Weight & Dimensions: 1kg - 230x140x80

Supplied Accessories

  • Metrel MI3311 GammaPAT Lite PAT Tester (complete with Earth Test Lead, 230V Extension Lead Adaptor, GammaPAT Instruction Manual, 6 x Rechargeable Batteries, Calibration Certificate and Carry Case).
  • Microwave Leakage Detector
  • 50 Microwave Emission Labels
  • PAT Certificate Pad
  • PAT Register Book w/ Frequency of Inspection
  • IEC Clover Leaf Adaptor
  • 1000 Pass Labels
  • 200 Fail Labels
  • 250 PassWrap Cable Labels
