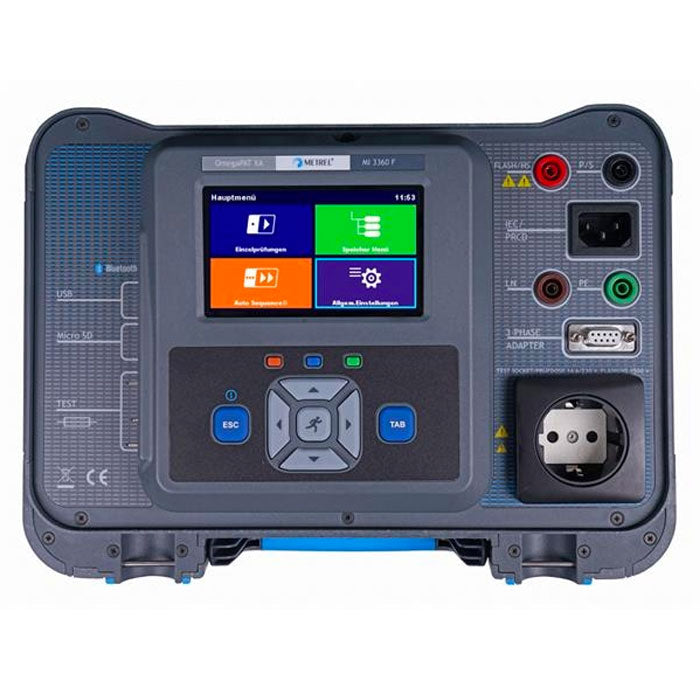

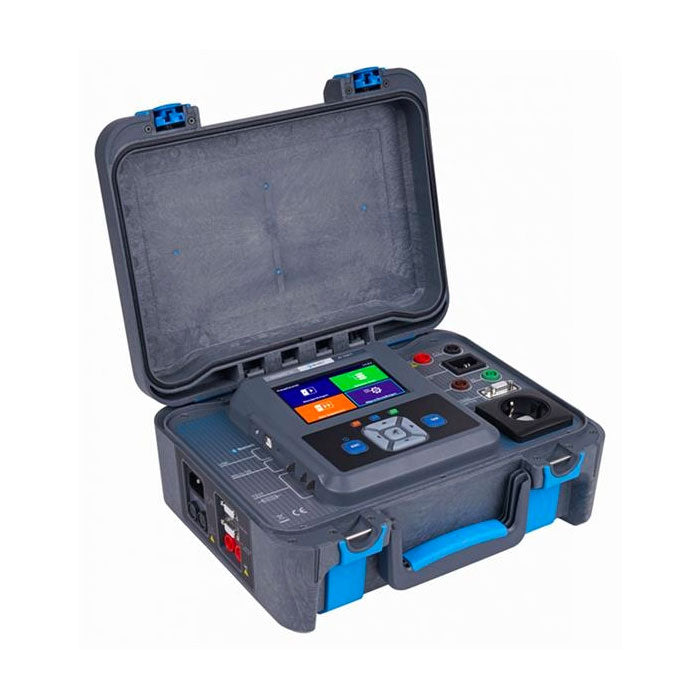

Metrel OmegaPAT XA PAT Tester

  • Excellent testing capabilities on regular and advanced appliances
  • Clearly structured internal memory with individual user accounts
  • Capable of three-phase, arc welding and medical appliance tests

£1,660.00 EXC. VAT

IN STOCK

Description

The Metrel MI3360 OmegaPAT XA PAT Tester offers lots of options for domestic and commercial PAT testing in addition to testing on three-phase appliances and even ARC welding equipment when used in conjunction with the correct adaptor. The instrument can test both 230V and 110V appliances (with optional adaptor) and the ‘F’ model can even perform high voltage flash tests. A simple one step test can determine an appliance’s consumption, leakage and power.

RCD testing on A, AC, B, B+, and F type is available on the Metrel MI3360 using test currents from 10mA, 15mA and 30mA. The tester can also verify advanced portable RCDs (3-pole, K/Di [varistor] and S-type) used in challenging conditions and environments requiring intervention.

When used together with an A1322 or A1422 three-phase adaptor, the Metrel MI3360 can carry out power, leakage, and polarity testing on three-phase appliances and RCDs, in part thanks to increased testing currents of up to 100mA or 300mA.

The Metrel A1422 opens up the additional possibility of testing on ARC welding equipment with testing functions that include primary welding leakage, welding leakage, welding insulation and no load voltage testing. All tests meet IEC/EN 60974-4 regulations.

The ‘M’ model is especially suited to medical appliance testing. The Metrel MI3360 M is compliant with IEC/EN 60974-4 and can carry out specific tests including electrical equipment leakage, applied part leakage, and touch leakage.

In addition to impressive individual testing functions, the Metrel MI3360 has multiple pre-set auto test sequences and the user can also create fully customised sequences and save them to the internal memory. There is also space for thousands of files in an easily organisable multi-layered database in addition to password-protected user accounts that ensure all testing is fully traceable.

In order to select you model, please use the drop down menu above. Each model is supplied with a full complement of accessories including test leads, cables, probes, crocodile clips, software and a manufacturer’s calibration certificate. The Metrel MI3360 is an incredibly fast, sophisticated tester which can be used for all manner of PAT testing applications.

Key Features

  • Dual voltage appliance testing
  • Earth bond testing (25A test current with ‘25A’, ‘M’ and ‘F’ models)
  • Insulation test
  • Leakage test
  • Functional test
  • Flash test (‘F’ model only)
  • P-RCD and three-phase RCD testing
  • Three-phase testing (with adaptor)
  • Arc Welding Unit testing (with A1422 adaptor)
  • Medical appliance testing (‘M’ model only)
  • Pre-programmed and custom auto test sequences
  • Fast testing procedure
  • Password-protected user accounts
  • Large, clearly structured memory
  Standard (S) High Current (25A) Medical (M) Flash (F)
Visual Inspections
Fuse Test
Continuity / Earth Bond Resistance 200mA
Continuity / Earth Bond Resistance 10A & 25A
Insulation Resistance (Riso, Riso-S)
Substitute Leakage Current
Differential Leakage Current
PE Leakage Current
Touch Leakage Current
Polarity / Active Polarity
Power (P, S, Q, PF, THDu, THDi, Cosø, I, U)
P-RCD, (2 pole, 3 pole, K/ Di (varistor), S (3-pole))
PRCD PE probe test, open conductor test, PE conductor test
RCD test, (type A, AC, B, B+, F)
Flash test (1500V, 3000V)
Insulation Resistance, IEC/EN 62353
Touch Leakage Current, IEC/EN 62353
Equipment Leakage (Direct, Differential, Alternative), IEC/EN 62353
Applied Part Leakage (Direct, Alternative), IEC/EN 62353
Insulation resistance, (optional A 1422) IEC/EN 60974-4
Welding circuit leakage, (optional A 1422) IEC/EN 60974-4
Primary leakage, (optional A 1422) IEC/EN 60974-4
No-load voltage, (optional A 1422) IEC/EN 60974-4

Specification

Continuity // Protective earth resistance

Continuity

  • Ranges: 0.00 Ω … 19.99 Ω / 20.0 Ω … 99.9 Ω / 100.0 Ω … 199.9 Ω / 200 Ω … 999 Ω
  • Resolution: 0.01 Ω / 0.1 Ω / 0.1 Ω / 1 Ω \
  • Accuracy: ±(2 % of reading + 2 D) / ± 3 % of reading / ± 5 % of reading / indicative
  • Operating range (acc. to EN 61557-4)............. 0.08 Ω … 199.9 Ω
  • Test currents..................................................... 0.2 A,10 A, 25 A
  • Current source (at nominal mains voltage, use of standard accessories)
  • .......................................................................... > 0.2 A at R < 2 Ω
  • .......................................................................... > 10 A at R < 0.1 Ω at 230 V
  • .......................................................................... > 25 A into short circuit at 230 V
  • Open circuit voltage.......................................... < 9 V a.c.

Test terminals:

Continuity

  • R (200 mA): P/S – PE, Socket PE; Socket PE – IEC PE
  • R (10 A, 25 A): P/S – Socket PE; Socket PE – IEC PE

Protective earth resistance

  • R (200 mA): P/AP – PE, Socket PE
  • R (10 A, 25 A): P/AP – Socket PE

Insulation Resistance (Riso, Riso-S)

  • Insulation resistance, Insulation resistance –S (250 V, 500 V)
  • Range: 0.00 MΩ … 19.99 MΩ / 20.0 MΩ … 99.9 MΩ / 100.0 MΩ … 199.9 MΩ
  • Resolution: 0.01 MΩ / 0.1 MΩ / 0.1 MΩ
  • Accuracy: ±(3 % of reading + 2 D) / ± 5 % of reading /± 10 % of reading

Output voltage (Um)

  • Range: 0 V … 600 V
  • Resolution: 1V
  • Accuracy: ±(3 % of reading + 2 D)
  • Operating range (acc. to EN 61557-2).........0.08 MΩ … 199.9 (999) MΩ
  • Nominal voltages Un ....................................250 V, 500 V (- 0 %, + 10 %)
  • Short circuit current ......................................max. 2.0 mA

Test terminals:

  • Riso LN, Socket LN – PE, Socket PE, P/S
  • Riso-S LN, Socket LN – P/S

Sub-Leakage Current, Substitute Leakage Current - S (Isub, Isub-S)

  • Range: 0.00 mA … 1.99 mA / 2.00 mA … 19.99 mA
  • Resolution: 0.01mA / 0.01mA
  • Accuracy: ±(3 % of reading + 3 D) / ±(5 % of reading)
  • Operating range (acc. to EN 61557-16)........... 0.02 mA … 19.99 mA
  • Open circuit voltage.......................................... 230 V a.c., 110 V a.c.
  • Current calculated to mains supply voltage (110 V or 230 V) is displayed.

Test terminals:

  • Isub LN, Socket LN – PE, Socket PE, P/S
  • Isub-S LN, Socket LN – P/S


Differential leakage current (Idiff)

Differential leakage current

  • Range: 0.000 mA … 1.999 mA / 2.00 mA … 19.99 mA
  • Resolution: 1 µA / 0.01 mA
  • Accuracy: ±(3 % of reading + 3 D) / ±(5 % of reading)

Power (active) (P)

  • Range: 0 W … 999 W / 1.00 kW … 3.70 kW
  • Resolution: 1W / 10W
  • Accuracy: ±(5 % of reading + 5 D) / ±5 % of reading
  • Operating range (acc. to EN 61557-16)........... 0.010 mA … 19.99 mA
  • Influence of load current................................... < 0.02 mA/A

Test terminals:

  • Idiff Socket L,N – Socket PE, P/S
  • P Socket L – Socket N

PE leakage current (Ipe)

PE leakage current

  • Range: 0.000 mA … 1.999 mA / 2.00 mA … 19.99 mA
  • Resolution: 1µA / 0.01mA
  • Accuracy: ±(3 % of reading + 3 D) / ±(5 % of reading)

Power (active) (P)

  • Range: 0 W … 999 W / 1.00 kW … 3.70 kW
  • Resolution: 1W / 10W
  • Accuracy: ±(5 % of reading + 5 D) / ±5 % of reading
  • Operating range (acc. to EN 61557-16)........... 0.010 mA … 19.99 mA

Test terminals:

  • Ipe Socket L,N – Socket PE
  • P Socket L – Socket N

Touch leakage current (Ipe)

Touch leakage current

  • Range: 0.000 mA … 1.999 mA / 2.00 mA … 19.99 mA
  • Resolution: 1 µA / 0.01mA
  • Accuracy: ±(3 % of reading + 3 D) / ±(5 % of reading)

Power (active) (P)

  • Range: 0 W … 999 W / 1.00 kW … 3.70 kW
  • Resolution: 1W / 10W
  • Accuracy: ±(5 % of reading + 5 D) / ±5 % of reading
  • Operating range (acc. to EN 61557-16)........... 0.010 mA … 19.99 mA

Test terminals:

  • Itou: Socket L,N – P/S
  • P: Socket L – Socket N

Power

Power (active) (P)

  • Range: 0 W … 999 W / 1.00 kW … 3.70 kW
  • Resolution: 1W / 10W
  • Accuracy: ±(5 % of reading + 5 D) / ±5 % of reading

Power (apparent) (S)

  • Range: 0 VA … 999 VA / 1.00 kVA … 3.70 kVA
  • Resolution: 1 VA / 10VA
  • Accuracy: ±(5 % of reading + 5 D) / ±5 % of reading

Power (reactive) (Q)

  • Range: ±(0 VAr … 999) VAr / ±(1.00 kVAr … 3.70) kVAr
  • Resolution: 1 VAr / 10 VAr
  • Accuracy: ±(5 % of reading + 5 D) / ±5 % of reading

Power factor (PF)

  • Range 0.00i … 1.00i / 0.00c … 1.00c
  • Resolution: 0.01
  • Accuracy: ±(5 % of reading + 5 D)

Total Harmonic Distortion (voltage) (THDU)

  • Range: 0.0 % … 99.9 %
  • Resolution: 0.1 %
  • Accuracy: ±(5 % of reading + 5 D)

Total Harmonic Distortion (current) (THDI)

  • Range: 0.00 A … 16.00 A
  • Resolution: 0.01 A
  • Accuracy: ±(3 % of reading + 5 D)

Cosinus Φ (Cos Φ)

  • Range: 0.00i … 1.00i / 0.00c … 1.00c
  • Resolution: 0.01
  • Accuracy: ±(5 % of reading + 5 D)

Current (I)

  • Range: 0.00 A … 16.00 A
  • Resolution: 0.01 A
  • Accuracy: ±(3 % of reading + 5 D)

Voltage (U)

  • Range: 0.0 V … 199.9 V / 200 V … 264 V
  • Resolution: 0.1V / 1V
  • Accuracy: ±(3 % of reading + 10 D) / ±3 % of reading

Test terminals:

  • P,S,Q,PF,THDU,THDI, Cos Φ, I, U: Socket L – Socket N

Leaks & Power

Power (active) (P)

  • Range: 0 W … 999 W / 1.00 kW … 3.70 kW
  • Resolution: 1W / 10W
  • Accuracy: ±(5 % of reading + 5 D) / ±5 % of reading

Touch leakage current: (Itou)

  • Range: 0.000 mA … 1.999 mA / 2.00 mA … 19.99 mA
  • Resolution: 1 µA / 0.01 mA
  • Accuracy: ±(3 % of reading + 3 D) / ±(5 % of reading)
  • Operating range (acc. to EN 61557-16)........... 0.010 mA … 19.99 mA

Differential leakage current (Idiff)

  • Range: 0.000 mA … 1.999 mA / 2.00 mA … 19.99 mA
  • Resolution: 1 µA / 0.01 mA
  • Accuracy: ±(3 % of reading + 3 D) / ±(5 % of reading)
  • Operating range (acc. to EN 61557-16)........... 0.010 mA … 19.99 mA
  • Influence of load current................................... < 0.02 mA/A

Power (apparent) (S)

  • Range: 0 VA … 999 VA / 1.00 kVA … 3.70 kVA
  • Resolution: 1 VA / 10VA
  • Accuracy: ±(5 % of reading + 5 D) / ±5 % of reading

Power (reactive) (Q)

  • Range: ±(0 VAr … 999) VAr / ±(1.00 kVAr … 3.70) kVAr
  • Resolution: 1 VAr / 10 VAr
  • Accuracy: ±(5 % of reading + 5 D) / ±5 % of reading

Power factor (PF)

  • Range 0.00i … 1.00i / 0.00c … 1.00c
  • Resolution: 0.01
  • Accuracy: ±(5 % of reading + 5 D)

Total Harmonic Distortion (voltage) (THDU)

  • Range: 0.0 % … 99.9 %
  • Resolution: 0.1 %
  • Accuracy: ±(5 % of reading + 5 D)

Total Harmonic Distortion (current) (THDI)

  • Range: 0.00 A … 16.00 A
  • Resolution: 0.01 A
  • Accuracy: ±(3 % of reading + 5 D)

Cosinus Φ (Cos Φ)

  • Range: 0.00i … 1.00i / 0.00c … 1.00c
  • Resolution: 0.01
  • Accuracy: ±(5 % of reading + 5 D)

Current (I)

  • Range: 0.00 A … 16.00 A
  • Resolution: 0.01 A
  • Accuracy: ±(3 % of reading + 5 D)

Voltage (U)

  • Range: 0.0 V … 199.9 V / 200 V … 264 V
  • Resolution: 0.1V / 1V
  • Accuracy: ±(3 % of reading + 10 D) / ±3 % of reading

Test terminals:

  • P,S,Q,PF,THDU,THDI, Cos Φ, I, U: Socket L – Socket N
  • Idiff: Socket L,N – Socket PE, P/S
  • Itou: Socket L,N – P/S

PRCD test

Trip-out time (tΔN)

  • Range: 0 ms … 300 ms (999 ms*) (½xI∆N) / 0 ms … 300 ms (I∆N) / 0 ms … 40 ms (5xI∆N)
  • Resolution: 1ms / 1ms / 1ms
  • Accuracy: ±3ms / ±3ms / ±3ms

*According to standard AS/NZS 3017

  • Trip out-current (IΔ)
  • Range: 0.2xI∆N … 2.2xI∆N
  • Resolution: 0.05xI∆N
  • Accuracy: ±0.1xI∆N
  • Test current type:.................sine-wave (AC), pulsed (A,F), smooth DC (B,B+)
  • Test currents (IΔN): .............10 mA, 15 mA, 30 mA;.................100 mA and 300 mA with A1322, A1422
  • Test current size (PRCD standard is AS/NZS 3017)............... ±5%
  • Test current size (general)………………-0/+10%

Test terminals:

  • tΔN, IΔ Socket – IEC

RCD Test

Trip-out time (tΔN)

  • Range: 0 ms … 300 ms (999 ms*) (½xI∆N) / 0 ms … 300 ms (I∆N) / 0 ms … 40 ms (5xI∆N)
  • Resolution: 1ms / 1ms / 1ms
  • Accuracy: ±3ms / ±3ms / ±3ms

*According to standard AS/NZS 3017

Trip out-current (IΔ)

  • Range: 0.2xI∆N … 2.2xI∆N
  • Resolution: 0.05xI∆N
  • Accuracy: ±0.1xI∆N

Contact voltage (Uc)

  • Range: 0.0 V … 19.9 V / 20.0 V … 99.9 V
  • Resolution: 0.1V / 0.1V
  • Accuracy: (-0 % / +15 %) of reading ± 10 D / 0.1 V (-0 % / +15 %) of reading
  • Test current type:.................sine-wave (AC), pulsed (A,F), smooth DC (B,B+)
  • Test currents (IΔN): .............10 mA, 15 mA, 30 mA
  • Test current size (RCD standard is AS/NZS AS/NZS)...............  5%
  • Test current size (EN 61008/EN 61009)………………-0/+10%

Test terminals:

  • tΔN, IΔ Mains Socket

PE conductor (PRCD)

PE conductor (Type = 2 pole, 3 pole, S(3 pole)) (R)

  • Range: 0.00 Ω … 19.99 Ω / 20.0 Ω … 99.9 Ω / 100.0 Ω … 199.9 Ω / 200 Ω … 999 Ω
  • Resolution: 0.01 Ω / 0.1 Ω / 0.1 Ω / 1 Ω
  • Accuracy: ±(2 % of reading + 2 D) / ± 3 % of reading / ± 5 % of reading / indicative
  • Operating range (acc. to EN 61557-4)............. 0.08 Ω … 199.9 Ω
  • Current source (at nominal mains voltage, use of standard accessories).......................................................................... ..> 0.2 A at R < 2 Ω
  • Open circuit voltage.......................................... ..< 9 V a.c.

Test terminals:

  • R Socket PE – IEC PE

PE conductor (Type = K/ Di (varistor))

Test principle: A voltage is applied between PE connections of the PRCD-K. There is a ‘PASS’ if PRCD trips.

  • Open circuit voltage..................... 24 V
  • Output resistance......................... 220 Ω ± 10 % (IΔN = 30 mA), 620 Ω ± 10 % ((IΔN = 10 mA)

Test terminals:

  • Result: Socket – IEC

Open conductor (PRCD)

Test principle: Mains voltage is applied to the mains test socket. Disconnection of the L, N and PE connections is performed inside the instrument. There is a ‘PASS’ if the PRCD trips.

Test terminals:

  • L open, N open, PE open Socket – IEC


PRCD PE probe test

Test principle: Mains voltage is applied to the mains test socket. A safe voltage sufficiently high to activate the protection circuit in the PRCD is applied to the P/S terminal.

  • Test voltage (active) ......................................... > 100 V a.c.
  • Maximal current ................................................ < 1 mA

Test terminals:

  • Result (manual): Socket, P/S
  • Result (auto): Socket – IEC, P/S

Polarity

  • Test voltage (normal).................................................................. < 50 V
  • Test voltage (active)…………………………………………......... mains voltage
  • Power consumption of tested device during the active test…….< 25 VA

Test terminals:

  • Result (normal, active) Socket – IEC


Clamp current (I, Idiff, Ipe)

True RMS current using 1000:1 current clamp

  • Range: 0.10 mA … 9.99 mA / 10.0 mA … 99.9 mA / 100 mA … 999 mA / 1.00 A … 9.99 A / 10.0 A … 24.9 A
  • Resolution: 0.01 mA / 0.1 mA / 1 mA / 0.01 A / 0.1 A
  • Accuracy: ±(5 % of reading + 10 digits) / ±(5 % of reading + 5 digits) / ±(5 % of reading + 5 digits) / ±(5 % of reading + 5 digits) / ±(5 % of reading + 5 digits)

Accuracy of current transformer is not considered.
Frequency range of current clamp is not considered.

Test terminals:

  • I, Idiff, Ipe: CLAMPS terminals

Flash test

Current a.c. (apparent) (I)

  • Range: 0.00 mA … 2.50 mA
  • Resolution: 0.01mA
  • Accuracy: ±(5 % of reading + 5 D)
  • Open circuit test voltage..................... 1500 V, 3000 V (-0/+5%) at supply voltage 115 V, 230 V
  • Short circuit current…………………….< 3.5 mA
  • Output resistance: .................. ........... 480 kΩ@1500 V, 960 kΩ@3000 V

Test terminals:

  • I (1500 V): Socket LN – Socket PE
  • I (3000 V): Socket LN – FLASH

Insulation resistance Riso (welding equipment)

Riso

  • Range: 0.00 MΩ … 19.99 MΩ / 20.0 MΩ … 99.9 MΩ / 100.0 MΩ … 199.9 MΩ
  • Resolution: 0.01 MΩ / 0.1 MΩ / 0.1 MΩ
  • Accuracy: ±(3 % of reading + 2 D) / ±5 % of reading / ±10 % of reading

Output voltage (Um)

  • Range: 0 V … 600 V
  • Resolution: 1 V
  • Accuracy: ±(3 % of reading + 2 D)
  • Operating range (acc. to EN 61557-2).........0.08 MΩ … 199.9 (999) MΩ
  • Nominal voltages Un ....................................500 V (- 0 %, + 10 %)
  • Short circuit current ......................................max. 2.0 mA

Test terminals:

  • Riso LN-W: A 1422: Socket L1 L2 L3 N (16A-5p, 32A-5p or 16A-3p) – W1 W2
  • Riso W-PE: A 1422: Socket PE (16A-5p, 32A-5p or 16A-3p) – W1 W2
  • Riso LN-PE: A 1422: Socket L1 L2 L3 N (16A-5p, 32A-5p or 16A-3p) – Socket PE (16A-5p, 32A-5p or 16A-3p)
  • Riso LN (Class II) - P: A 1422: Socket L1 L2 L3 N (16A-5p, 32A-5p or 16A-3p) – MI 3360: P/S


Insulation Resistance (medical equipment)

Riso

  • Range: 0.00 MΩ … 19.99 MΩ / 20.0 MΩ … 199.9 MΩ
  • Resolution: 0.01 MΩ / 0.1 MΩ
  • Accuracy: ±(3 % of reading + 2 D) / ±5 % of reading

Output voltage (Um)

  • Range: 0 V … 600 V
  • Resolution: 1 V
  • Accuracy: ±(3 % of reading + 2 D)
  • Operating range (acc. to EN 61557-2).........0.08 M … 199.9 (999) M
  • Nominal voltages Un ....................................500 V (- 0 %, + 10 %)
  • Short circuit current ......................................max. 2.0 mA

Test terminals:

  • Riso (LN-PE) LN, Socket LN – PE, Socket PE
  • Riso (LN-P/S) LN, Socket LN – P/S
  • Riso (LN-AP) LN, Socket LN – P/AP
  • Riso (PE-AP) PE, Socket PE – P/AP


Equipment leakage

Equipment leakage current (direct, differential, alternative) (Ieq)

  • Range: 0.000 mA … 1.999 mA / 2.00 mA … 19.99 mA
  • Resolution: 1 µA / 0.01 mA
  • Accuracy: ±(3 % of reading + 3 D) / ±(5 % of reading)

Ulpe (direct, differential, alternative)

  • Range: 0 V … 299 V
  • Resolution: 1 V
  • Accuracy: ±(2 % of reading + 2 D)

Power (direct, differential) (P)

  • Range: 0 W … 999 W / 1.00 kW … 3.70 kW
  • Resolution: 1W / 10W
  • Accuracy: ±(5 % of reading + 5 D) / ±5 % of reading
  • Operating range direct and differential method (acc. to EN 61557-16)…..0.010 mA … 19.99 mA
  • Operating range alternative method (acc. to EN 61557-16)……………….0.020 mA … 19.99 mA
  • Influence of load current (differential method) . …………….< 0.02 mA/A

Test terminals:

  • Ieq (alternative): LN, Socket LN – PE, Socket PE, P/S, P/AP
  • Ieq (direct, differential): Socket L,N – PE, Socket PE, P/S, P/AP
  • Ulpe: Socket L – Socket PE
  • P (direct, differential): Socket L – Socket N


Applied Part leakage

Applied Part leakage current (direct, alternative) (Iap)

  • Range: 0.000 mA … 1.999 mA / 2.00 mA … 19.99 mA
  • Resolution: 1 µA / 0.01 mA
  • Accuracy: ±(3 % of reading + 3 D) / ±(5 % of reading)

Uap (direct, alternative)

  • Range: 0 V … 299 V
  • Resolution: 1 V
  • Accuracy: ±(2 % of reading + 2 D)

Power (direct (P))

  • Range: 0 W … 999 W / 1.00 kW … 3.70 kW
  • Resolution: 1 W / 10 W
  • Accuracy: ±(5 % of reading + 5 D) / ±5 % of reading
  • Operating range direct method (acc. to EN 61557-16)…………0.010 mA … 19.99 mA
  • Operating range alternative method (acc. to EN 61557-16)……0.020 mA … 19.99 mA

Test terminals:

  • Iap (alternative): Socket LNPE, PE – P/AP
  • Iap (direct): Socket L,N,PE, PE – P/AP
  • Uap: Socket PE, PE – P/AP
  • P: Socket L – Socket N

Touch current (medical equipment)

Touch current (Itou)

  • Range: 0.000 mA … 1.999 mA / 2.00 mA … 19.99 mA
  • Resolution: 1 µA / 0.01 mA
  • Accuracy: ±(3 % of reading + 3 D) / ±(5 % of reading)

Ulpe (direct)

  • Range: 0 V … 299 V
  • Resolution: 1 V
  • Accuracy: ±(2 % of reading + 2 D)

Power (direct) (P)

  • Range: 0 W … 999 W / 1.00 kW … 3.70 kW
  • Resolution: 1 W / 10 W
  • Accuracy: ±(5 % of reading + 5 D) / ± 5 % of reading
  • Operating range (acc. to EN 61557-16)........... 0.010 mA … 19.99 mA

Test terminals

  • Itou: Socket L,N – P/S
  • Ulpe: Socket L – Socket PE
  • P: Socket L – Socket N

General data

Mains supply

  • Supply voltage, frequency .......................110 V / 230 V AC, 50 Hz / 60 Hz
  • Supply voltage tolerance .........................10 %
  • Max. power consumption.........................300 VA (without load on test socket)
  • Max. load………………………. ...............10 A continuous, 16 A short duration, 1.5 kW motor
  • Mains supply overvoltage category.........CAT II / 300V
  • Altitude.....................................................≤ 2000 m

Measuring categories

  • Instrument:...............................................Cat II / 300 V
  • Test socket:..............................................Cat II / 300 V
  • Plug test cable: ........................................Cat II / 300 V
  • Altitude.....................................................≤ 2000 m

Protection classifications

  • Power supply……………………… ..........Class I, mains supply, Class II, only battery supply
  • Pollution degree.......................................2
  • Degree of protection ................................IP 40
  • .................................................................IP 20 (mains test socket)
  • Case.........................................................Shock proof plastic / portable
  • Display .....................................................Colour TFT display, 4.3 inch, 480 x 272 pixels
  • Touch screen ...........................................Capacitive

Communication

  • Memory....................................................depends on microSD card size
  • RS232 interfaces .....................................2
  • USB 2.0....................................................Standard USB Type B
  • Bluetooth..................................................Class 2
  • Dimensions (w×h×d):...............................31 cm × 13 cm × 25 cm
  • Weight......................................................6.1 kg

Reference conditions

  • Reference temperature range: ................15 ˚C … 35 ˚C
  • Reference humidity range: ......................35 % … 65 % RH
  • Operation conditions
  • Working temperature range:....................0 ˚C … +40 ˚C
  • Maximum relative humidity:.....................85 % RH (0 ˚C … 40 ˚C), non-condensing
  • Storage conditions
  • Temperature range:.................................-10 ˚C … +60 ˚C
  • Maximum relative humidity:.....................90 % RH (-10 ˚C … +40 ˚C)
  • .................................................................80 % RH (40 ˚C … 60 ˚C)

Accuracies apply for 1 year in reference conditions. Temperature coefficient outside these limits is 0.2 % of measured value per C plus 1 digit, otherwise noted.

Fuses: 2 x T 16 A / 250 V, 32 mm  6.3 mm / 1500 A

Supplied Accessories

The Metrel MI3360 OmegaPAT XA comes with:
  • Metrel MI3360 OmegaPAT XA PAT Tester
  • Bag for accessories
  • Smartball pen with touch screen function
  • Flash test probe (MI 3360 F only)
  • Crocodile clip, red (MI 3360 F only)
  • IEC test cable, 2 m
  • Test lead, black
  • Test tip, black
  • Alligator clip, black
  • Mains cable
  • USB cable
  • Calibration Certificate
  • Short form instruction manual
  • CD with instruction manual (full version) and PC SW Metrel ES Manager

Videos

The Metrel MI3360 OmegaPAT XA PAT Tester offers lots of options for domestic and commercial PAT testing in addition to testing on three-phase appliances and even ARC welding equipment when used in conjunction with the correct adaptor. The instrument can test both 230V and 110V appliances (with optional adaptor) and the ‘F’ model can even perform high voltage flash tests. A simple one step test can determine an appliance’s consumption, leakage and power.

RCD testing on A, AC, B, B+, and F type is available on the Metrel MI3360 using test currents from 10mA, 15mA and 30mA. The tester can also verify advanced portable RCDs (3-pole, K/Di [varistor] and S-type) used in challenging conditions and environments requiring intervention.

When used together with an A1322 or A1422 three-phase adaptor, the Metrel MI3360 can carry out power, leakage, and polarity testing on three-phase appliances and RCDs, in part thanks to increased testing currents of up to 100mA or 300mA.

The Metrel A1422 opens up the additional possibility of testing on ARC welding equipment with testing functions that include primary welding leakage, welding leakage, welding insulation and no load voltage testing. All tests meet IEC/EN 60974-4 regulations.

The ‘M’ model is especially suited to medical appliance testing. The Metrel MI3360 M is compliant with IEC/EN 60974-4 and can carry out specific tests including electrical equipment leakage, applied part leakage, and touch leakage.

In addition to impressive individual testing functions, the Metrel MI3360 has multiple pre-set auto test sequences and the user can also create fully customised sequences and save them to the internal memory. There is also space for thousands of files in an easily organisable multi-layered database in addition to password-protected user accounts that ensure all testing is fully traceable.

In order to select you model, please use the drop down menu above. Each model is supplied with a full complement of accessories including test leads, cables, probes, crocodile clips, software and a manufacturer’s calibration certificate. The Metrel MI3360 is an incredibly fast, sophisticated tester which can be used for all manner of PAT testing applications.

Key Features

  • Dual voltage appliance testing
  • Earth bond testing (25A test current with ‘25A’, ‘M’ and ‘F’ models)
  • Insulation test
  • Leakage test
  • Functional test
  • Flash test (‘F’ model only)
  • P-RCD and three-phase RCD testing
  • Three-phase testing (with adaptor)
  • Arc Welding Unit testing (with A1422 adaptor)
  • Medical appliance testing (‘M’ model only)
  • Pre-programmed and custom auto test sequences
  • Fast testing procedure
  • Password-protected user accounts
  • Large, clearly structured memory
  Standard (S) High Current (25A) Medical (M) Flash (F)
Visual Inspections
Fuse Test
Continuity / Earth Bond Resistance 200mA
Continuity / Earth Bond Resistance 10A & 25A
Insulation Resistance (Riso, Riso-S)
Substitute Leakage Current
Differential Leakage Current
PE Leakage Current
Touch Leakage Current
Polarity / Active Polarity
Power (P, S, Q, PF, THDu, THDi, Cosø, I, U)
P-RCD, (2 pole, 3 pole, K/ Di (varistor), S (3-pole))
PRCD PE probe test, open conductor test, PE conductor test
RCD test, (type A, AC, B, B+, F)
Flash test (1500V, 3000V)
Insulation Resistance, IEC/EN 62353
Touch Leakage Current, IEC/EN 62353
Equipment Leakage (Direct, Differential, Alternative), IEC/EN 62353
Applied Part Leakage (Direct, Alternative), IEC/EN 62353
Insulation resistance, (optional A 1422) IEC/EN 60974-4
Welding circuit leakage, (optional A 1422) IEC/EN 60974-4
Primary leakage, (optional A 1422) IEC/EN 60974-4
No-load voltage, (optional A 1422) IEC/EN 60974-4

Continuity // Protective earth resistance

Continuity

  • Ranges: 0.00 Ω … 19.99 Ω / 20.0 Ω … 99.9 Ω / 100.0 Ω … 199.9 Ω / 200 Ω … 999 Ω
  • Resolution: 0.01 Ω / 0.1 Ω / 0.1 Ω / 1 Ω \
  • Accuracy: ±(2 % of reading + 2 D) / ± 3 % of reading / ± 5 % of reading / indicative
  • Operating range (acc. to EN 61557-4)............. 0.08 Ω … 199.9 Ω
  • Test currents..................................................... 0.2 A,10 A, 25 A
  • Current source (at nominal mains voltage, use of standard accessories)
  • .......................................................................... > 0.2 A at R < 2 Ω
  • .......................................................................... > 10 A at R < 0.1 Ω at 230 V
  • .......................................................................... > 25 A into short circuit at 230 V
  • Open circuit voltage.......................................... < 9 V a.c.

Test terminals:

Continuity

  • R (200 mA): P/S – PE, Socket PE; Socket PE – IEC PE
  • R (10 A, 25 A): P/S – Socket PE; Socket PE – IEC PE

Protective earth resistance

  • R (200 mA): P/AP – PE, Socket PE
  • R (10 A, 25 A): P/AP – Socket PE

Insulation Resistance (Riso, Riso-S)

  • Insulation resistance, Insulation resistance –S (250 V, 500 V)
  • Range: 0.00 MΩ … 19.99 MΩ / 20.0 MΩ … 99.9 MΩ / 100.0 MΩ … 199.9 MΩ
  • Resolution: 0.01 MΩ / 0.1 MΩ / 0.1 MΩ
  • Accuracy: ±(3 % of reading + 2 D) / ± 5 % of reading /± 10 % of reading

Output voltage (Um)

  • Range: 0 V … 600 V
  • Resolution: 1V
  • Accuracy: ±(3 % of reading + 2 D)
  • Operating range (acc. to EN 61557-2).........0.08 MΩ … 199.9 (999) MΩ
  • Nominal voltages Un ....................................250 V, 500 V (- 0 %, + 10 %)
  • Short circuit current ......................................max. 2.0 mA

Test terminals:

  • Riso LN, Socket LN – PE, Socket PE, P/S
  • Riso-S LN, Socket LN – P/S

Sub-Leakage Current, Substitute Leakage Current - S (Isub, Isub-S)

  • Range: 0.00 mA … 1.99 mA / 2.00 mA … 19.99 mA
  • Resolution: 0.01mA / 0.01mA
  • Accuracy: ±(3 % of reading + 3 D) / ±(5 % of reading)
  • Operating range (acc. to EN 61557-16)........... 0.02 mA … 19.99 mA
  • Open circuit voltage.......................................... 230 V a.c., 110 V a.c.
  • Current calculated to mains supply voltage (110 V or 230 V) is displayed.

Test terminals:

  • Isub LN, Socket LN – PE, Socket PE, P/S
  • Isub-S LN, Socket LN – P/S


Differential leakage current (Idiff)

Differential leakage current

  • Range: 0.000 mA … 1.999 mA / 2.00 mA … 19.99 mA
  • Resolution: 1 µA / 0.01 mA
  • Accuracy: ±(3 % of reading + 3 D) / ±(5 % of reading)

Power (active) (P)

  • Range: 0 W … 999 W / 1.00 kW … 3.70 kW
  • Resolution: 1W / 10W
  • Accuracy: ±(5 % of reading + 5 D) / ±5 % of reading
  • Operating range (acc. to EN 61557-16)........... 0.010 mA … 19.99 mA
  • Influence of load current................................... < 0.02 mA/A

Test terminals:

  • Idiff Socket L,N – Socket PE, P/S
  • P Socket L – Socket N

PE leakage current (Ipe)

PE leakage current

  • Range: 0.000 mA … 1.999 mA / 2.00 mA … 19.99 mA
  • Resolution: 1µA / 0.01mA
  • Accuracy: ±(3 % of reading + 3 D) / ±(5 % of reading)

Power (active) (P)

  • Range: 0 W … 999 W / 1.00 kW … 3.70 kW
  • Resolution: 1W / 10W
  • Accuracy: ±(5 % of reading + 5 D) / ±5 % of reading
  • Operating range (acc. to EN 61557-16)........... 0.010 mA … 19.99 mA

Test terminals:

  • Ipe Socket L,N – Socket PE
  • P Socket L – Socket N

Touch leakage current (Ipe)

Touch leakage current

  • Range: 0.000 mA … 1.999 mA / 2.00 mA … 19.99 mA
  • Resolution: 1 µA / 0.01mA
  • Accuracy: ±(3 % of reading + 3 D) / ±(5 % of reading)

Power (active) (P)

  • Range: 0 W … 999 W / 1.00 kW … 3.70 kW
  • Resolution: 1W / 10W
  • Accuracy: ±(5 % of reading + 5 D) / ±5 % of reading
  • Operating range (acc. to EN 61557-16)........... 0.010 mA … 19.99 mA

Test terminals:

  • Itou: Socket L,N – P/S
  • P: Socket L – Socket N

Power

Power (active) (P)

  • Range: 0 W … 999 W / 1.00 kW … 3.70 kW
  • Resolution: 1W / 10W
  • Accuracy: ±(5 % of reading + 5 D) / ±5 % of reading

Power (apparent) (S)

  • Range: 0 VA … 999 VA / 1.00 kVA … 3.70 kVA
  • Resolution: 1 VA / 10VA
  • Accuracy: ±(5 % of reading + 5 D) / ±5 % of reading

Power (reactive) (Q)

  • Range: ±(0 VAr … 999) VAr / ±(1.00 kVAr … 3.70) kVAr
  • Resolution: 1 VAr / 10 VAr
  • Accuracy: ±(5 % of reading + 5 D) / ±5 % of reading

Power factor (PF)

  • Range 0.00i … 1.00i / 0.00c … 1.00c
  • Resolution: 0.01
  • Accuracy: ±(5 % of reading + 5 D)

Total Harmonic Distortion (voltage) (THDU)

  • Range: 0.0 % … 99.9 %
  • Resolution: 0.1 %
  • Accuracy: ±(5 % of reading + 5 D)

Total Harmonic Distortion (current) (THDI)

  • Range: 0.00 A … 16.00 A
  • Resolution: 0.01 A
  • Accuracy: ±(3 % of reading + 5 D)

Cosinus Φ (Cos Φ)

  • Range: 0.00i … 1.00i / 0.00c … 1.00c
  • Resolution: 0.01
  • Accuracy: ±(5 % of reading + 5 D)

Current (I)

  • Range: 0.00 A … 16.00 A
  • Resolution: 0.01 A
  • Accuracy: ±(3 % of reading + 5 D)

Voltage (U)

  • Range: 0.0 V … 199.9 V / 200 V … 264 V
  • Resolution: 0.1V / 1V
  • Accuracy: ±(3 % of reading + 10 D) / ±3 % of reading

Test terminals:

  • P,S,Q,PF,THDU,THDI, Cos Φ, I, U: Socket L – Socket N

Leaks & Power

Power (active) (P)

  • Range: 0 W … 999 W / 1.00 kW … 3.70 kW
  • Resolution: 1W / 10W
  • Accuracy: ±(5 % of reading + 5 D) / ±5 % of reading

Touch leakage current: (Itou)

  • Range: 0.000 mA … 1.999 mA / 2.00 mA … 19.99 mA
  • Resolution: 1 µA / 0.01 mA
  • Accuracy: ±(3 % of reading + 3 D) / ±(5 % of reading)
  • Operating range (acc. to EN 61557-16)........... 0.010 mA … 19.99 mA

Differential leakage current (Idiff)

  • Range: 0.000 mA … 1.999 mA / 2.00 mA … 19.99 mA
  • Resolution: 1 µA / 0.01 mA
  • Accuracy: ±(3 % of reading + 3 D) / ±(5 % of reading)
  • Operating range (acc. to EN 61557-16)........... 0.010 mA … 19.99 mA
  • Influence of load current................................... < 0.02 mA/A

Power (apparent) (S)

  • Range: 0 VA … 999 VA / 1.00 kVA … 3.70 kVA
  • Resolution: 1 VA / 10VA
  • Accuracy: ±(5 % of reading + 5 D) / ±5 % of reading

Power (reactive) (Q)

  • Range: ±(0 VAr … 999) VAr / ±(1.00 kVAr … 3.70) kVAr
  • Resolution: 1 VAr / 10 VAr
  • Accuracy: ±(5 % of reading + 5 D) / ±5 % of reading

Power factor (PF)

  • Range 0.00i … 1.00i / 0.00c … 1.00c
  • Resolution: 0.01
  • Accuracy: ±(5 % of reading + 5 D)

Total Harmonic Distortion (voltage) (THDU)

  • Range: 0.0 % … 99.9 %
  • Resolution: 0.1 %
  • Accuracy: ±(5 % of reading + 5 D)

Total Harmonic Distortion (current) (THDI)

  • Range: 0.00 A … 16.00 A
  • Resolution: 0.01 A
  • Accuracy: ±(3 % of reading + 5 D)

Cosinus Φ (Cos Φ)

  • Range: 0.00i … 1.00i / 0.00c … 1.00c
  • Resolution: 0.01
  • Accuracy: ±(5 % of reading + 5 D)

Current (I)

  • Range: 0.00 A … 16.00 A
  • Resolution: 0.01 A
  • Accuracy: ±(3 % of reading + 5 D)

Voltage (U)

  • Range: 0.0 V … 199.9 V / 200 V … 264 V
  • Resolution: 0.1V / 1V
  • Accuracy: ±(3 % of reading + 10 D) / ±3 % of reading

Test terminals:

  • P,S,Q,PF,THDU,THDI, Cos Φ, I, U: Socket L – Socket N
  • Idiff: Socket L,N – Socket PE, P/S
  • Itou: Socket L,N – P/S

PRCD test

Trip-out time (tΔN)

  • Range: 0 ms … 300 ms (999 ms*) (½xI∆N) / 0 ms … 300 ms (I∆N) / 0 ms … 40 ms (5xI∆N)
  • Resolution: 1ms / 1ms / 1ms
  • Accuracy: ±3ms / ±3ms / ±3ms

*According to standard AS/NZS 3017

  • Trip out-current (IΔ)
  • Range: 0.2xI∆N … 2.2xI∆N
  • Resolution: 0.05xI∆N
  • Accuracy: ±0.1xI∆N
  • Test current type:.................sine-wave (AC), pulsed (A,F), smooth DC (B,B+)
  • Test currents (IΔN): .............10 mA, 15 mA, 30 mA;.................100 mA and 300 mA with A1322, A1422
  • Test current size (PRCD standard is AS/NZS 3017)............... ±5%
  • Test current size (general)………………-0/+10%

Test terminals:

  • tΔN, IΔ Socket – IEC

RCD Test

Trip-out time (tΔN)

  • Range: 0 ms … 300 ms (999 ms*) (½xI∆N) / 0 ms … 300 ms (I∆N) / 0 ms … 40 ms (5xI∆N)
  • Resolution: 1ms / 1ms / 1ms
  • Accuracy: ±3ms / ±3ms / ±3ms

*According to standard AS/NZS 3017

Trip out-current (IΔ)

  • Range: 0.2xI∆N … 2.2xI∆N
  • Resolution: 0.05xI∆N
  • Accuracy: ±0.1xI∆N

Contact voltage (Uc)

  • Range: 0.0 V … 19.9 V / 20.0 V … 99.9 V
  • Resolution: 0.1V / 0.1V
  • Accuracy: (-0 % / +15 %) of reading ± 10 D / 0.1 V (-0 % / +15 %) of reading
  • Test current type:.................sine-wave (AC), pulsed (A,F), smooth DC (B,B+)
  • Test currents (IΔN): .............10 mA, 15 mA, 30 mA
  • Test current size (RCD standard is AS/NZS AS/NZS)...............  5%
  • Test current size (EN 61008/EN 61009)………………-0/+10%

Test terminals:

  • tΔN, IΔ Mains Socket

PE conductor (PRCD)

PE conductor (Type = 2 pole, 3 pole, S(3 pole)) (R)

  • Range: 0.00 Ω … 19.99 Ω / 20.0 Ω … 99.9 Ω / 100.0 Ω … 199.9 Ω / 200 Ω … 999 Ω
  • Resolution: 0.01 Ω / 0.1 Ω / 0.1 Ω / 1 Ω
  • Accuracy: ±(2 % of reading + 2 D) / ± 3 % of reading / ± 5 % of reading / indicative
  • Operating range (acc. to EN 61557-4)............. 0.08 Ω … 199.9 Ω
  • Current source (at nominal mains voltage, use of standard accessories).......................................................................... ..> 0.2 A at R < 2 Ω
  • Open circuit voltage.......................................... ..< 9 V a.c.

Test terminals:

  • R Socket PE – IEC PE

PE conductor (Type = K/ Di (varistor))

Test principle: A voltage is applied between PE connections of the PRCD-K. There is a ‘PASS’ if PRCD trips.

  • Open circuit voltage..................... 24 V
  • Output resistance......................... 220 Ω ± 10 % (IΔN = 30 mA), 620 Ω ± 10 % ((IΔN = 10 mA)

Test terminals:

  • Result: Socket – IEC

Open conductor (PRCD)

Test principle: Mains voltage is applied to the mains test socket. Disconnection of the L, N and PE connections is performed inside the instrument. There is a ‘PASS’ if the PRCD trips.

Test terminals:

  • L open, N open, PE open Socket – IEC


PRCD PE probe test

Test principle: Mains voltage is applied to the mains test socket. A safe voltage sufficiently high to activate the protection circuit in the PRCD is applied to the P/S terminal.

  • Test voltage (active) ......................................... > 100 V a.c.
  • Maximal current ................................................ < 1 mA

Test terminals:

  • Result (manual): Socket, P/S
  • Result (auto): Socket – IEC, P/S

Polarity

  • Test voltage (normal).................................................................. < 50 V
  • Test voltage (active)…………………………………………......... mains voltage
  • Power consumption of tested device during the active test…….< 25 VA

Test terminals:

  • Result (normal, active) Socket – IEC


Clamp current (I, Idiff, Ipe)

True RMS current using 1000:1 current clamp

  • Range: 0.10 mA … 9.99 mA / 10.0 mA … 99.9 mA / 100 mA … 999 mA / 1.00 A … 9.99 A / 10.0 A … 24.9 A
  • Resolution: 0.01 mA / 0.1 mA / 1 mA / 0.01 A / 0.1 A
  • Accuracy: ±(5 % of reading + 10 digits) / ±(5 % of reading + 5 digits) / ±(5 % of reading + 5 digits) / ±(5 % of reading + 5 digits) / ±(5 % of reading + 5 digits)

Accuracy of current transformer is not considered.
Frequency range of current clamp is not considered.

Test terminals:

  • I, Idiff, Ipe: CLAMPS terminals

Flash test

Current a.c. (apparent) (I)

  • Range: 0.00 mA … 2.50 mA
  • Resolution: 0.01mA
  • Accuracy: ±(5 % of reading + 5 D)
  • Open circuit test voltage..................... 1500 V, 3000 V (-0/+5%) at supply voltage 115 V, 230 V
  • Short circuit current…………………….< 3.5 mA
  • Output resistance: .................. ........... 480 kΩ@1500 V, 960 kΩ@3000 V

Test terminals:

  • I (1500 V): Socket LN – Socket PE
  • I (3000 V): Socket LN – FLASH

Insulation resistance Riso (welding equipment)

Riso

  • Range: 0.00 MΩ … 19.99 MΩ / 20.0 MΩ … 99.9 MΩ / 100.0 MΩ … 199.9 MΩ
  • Resolution: 0.01 MΩ / 0.1 MΩ / 0.1 MΩ
  • Accuracy: ±(3 % of reading + 2 D) / ±5 % of reading / ±10 % of reading

Output voltage (Um)

  • Range: 0 V … 600 V
  • Resolution: 1 V
  • Accuracy: ±(3 % of reading + 2 D)
  • Operating range (acc. to EN 61557-2).........0.08 MΩ … 199.9 (999) MΩ
  • Nominal voltages Un ....................................500 V (- 0 %, + 10 %)
  • Short circuit current ......................................max. 2.0 mA

Test terminals:

  • Riso LN-W: A 1422: Socket L1 L2 L3 N (16A-5p, 32A-5p or 16A-3p) – W1 W2
  • Riso W-PE: A 1422: Socket PE (16A-5p, 32A-5p or 16A-3p) – W1 W2
  • Riso LN-PE: A 1422: Socket L1 L2 L3 N (16A-5p, 32A-5p or 16A-3p) – Socket PE (16A-5p, 32A-5p or 16A-3p)
  • Riso LN (Class II) - P: A 1422: Socket L1 L2 L3 N (16A-5p, 32A-5p or 16A-3p) – MI 3360: P/S


Insulation Resistance (medical equipment)

Riso

  • Range: 0.00 MΩ … 19.99 MΩ / 20.0 MΩ … 199.9 MΩ
  • Resolution: 0.01 MΩ / 0.1 MΩ
  • Accuracy: ±(3 % of reading + 2 D) / ±5 % of reading

Output voltage (Um)

  • Range: 0 V … 600 V
  • Resolution: 1 V
  • Accuracy: ±(3 % of reading + 2 D)
  • Operating range (acc. to EN 61557-2).........0.08 M … 199.9 (999) M
  • Nominal voltages Un ....................................500 V (- 0 %, + 10 %)
  • Short circuit current ......................................max. 2.0 mA

Test terminals:

  • Riso (LN-PE) LN, Socket LN – PE, Socket PE
  • Riso (LN-P/S) LN, Socket LN – P/S
  • Riso (LN-AP) LN, Socket LN – P/AP
  • Riso (PE-AP) PE, Socket PE – P/AP


Equipment leakage

Equipment leakage current (direct, differential, alternative) (Ieq)

  • Range: 0.000 mA … 1.999 mA / 2.00 mA … 19.99 mA
  • Resolution: 1 µA / 0.01 mA
  • Accuracy: ±(3 % of reading + 3 D) / ±(5 % of reading)

Ulpe (direct, differential, alternative)

  • Range: 0 V … 299 V
  • Resolution: 1 V
  • Accuracy: ±(2 % of reading + 2 D)

Power (direct, differential) (P)

  • Range: 0 W … 999 W / 1.00 kW … 3.70 kW
  • Resolution: 1W / 10W
  • Accuracy: ±(5 % of reading + 5 D) / ±5 % of reading
  • Operating range direct and differential method (acc. to EN 61557-16)…..0.010 mA … 19.99 mA
  • Operating range alternative method (acc. to EN 61557-16)……………….0.020 mA … 19.99 mA
  • Influence of load current (differential method) . …………….< 0.02 mA/A

Test terminals:

  • Ieq (alternative): LN, Socket LN – PE, Socket PE, P/S, P/AP
  • Ieq (direct, differential): Socket L,N – PE, Socket PE, P/S, P/AP
  • Ulpe: Socket L – Socket PE
  • P (direct, differential): Socket L – Socket N


Applied Part leakage

Applied Part leakage current (direct, alternative) (Iap)

  • Range: 0.000 mA … 1.999 mA / 2.00 mA … 19.99 mA
  • Resolution: 1 µA / 0.01 mA
  • Accuracy: ±(3 % of reading + 3 D) / ±(5 % of reading)

Uap (direct, alternative)

  • Range: 0 V … 299 V
  • Resolution: 1 V
  • Accuracy: ±(2 % of reading + 2 D)

Power (direct (P))

  • Range: 0 W … 999 W / 1.00 kW … 3.70 kW
  • Resolution: 1 W / 10 W
  • Accuracy: ±(5 % of reading + 5 D) / ±5 % of reading
  • Operating range direct method (acc. to EN 61557-16)…………0.010 mA … 19.99 mA
  • Operating range alternative method (acc. to EN 61557-16)……0.020 mA … 19.99 mA

Test terminals:

  • Iap (alternative): Socket LNPE, PE – P/AP
  • Iap (direct): Socket L,N,PE, PE – P/AP
  • Uap: Socket PE, PE – P/AP
  • P: Socket L – Socket N

Touch current (medical equipment)

Touch current (Itou)

  • Range: 0.000 mA … 1.999 mA / 2.00 mA … 19.99 mA
  • Resolution: 1 µA / 0.01 mA
  • Accuracy: ±(3 % of reading + 3 D) / ±(5 % of reading)

Ulpe (direct)

  • Range: 0 V … 299 V
  • Resolution: 1 V
  • Accuracy: ±(2 % of reading + 2 D)

Power (direct) (P)

  • Range: 0 W … 999 W / 1.00 kW … 3.70 kW
  • Resolution: 1 W / 10 W
  • Accuracy: ±(5 % of reading + 5 D) / ± 5 % of reading
  • Operating range (acc. to EN 61557-16)........... 0.010 mA … 19.99 mA

Test terminals

  • Itou: Socket L,N – P/S
  • Ulpe: Socket L – Socket PE
  • P: Socket L – Socket N

General data

Mains supply

  • Supply voltage, frequency .......................110 V / 230 V AC, 50 Hz / 60 Hz
  • Supply voltage tolerance .........................10 %
  • Max. power consumption.........................300 VA (without load on test socket)
  • Max. load………………………. ...............10 A continuous, 16 A short duration, 1.5 kW motor
  • Mains supply overvoltage category.........CAT II / 300V
  • Altitude.....................................................≤ 2000 m

Measuring categories

  • Instrument:...............................................Cat II / 300 V
  • Test socket:..............................................Cat II / 300 V
  • Plug test cable: ........................................Cat II / 300 V
  • Altitude.....................................................≤ 2000 m

Protection classifications

  • Power supply……………………… ..........Class I, mains supply, Class II, only battery supply
  • Pollution degree.......................................2
  • Degree of protection ................................IP 40
  • .................................................................IP 20 (mains test socket)
  • Case.........................................................Shock proof plastic / portable
  • Display .....................................................Colour TFT display, 4.3 inch, 480 x 272 pixels
  • Touch screen ...........................................Capacitive

Communication

  • Memory....................................................depends on microSD card size
  • RS232 interfaces .....................................2
  • USB 2.0....................................................Standard USB Type B
  • Bluetooth..................................................Class 2
  • Dimensions (w×h×d):...............................31 cm × 13 cm × 25 cm
  • Weight......................................................6.1 kg

Reference conditions

  • Reference temperature range: ................15 ˚C … 35 ˚C
  • Reference humidity range: ......................35 % … 65 % RH
  • Operation conditions
  • Working temperature range:....................0 ˚C … +40 ˚C
  • Maximum relative humidity:.....................85 % RH (0 ˚C … 40 ˚C), non-condensing
  • Storage conditions
  • Temperature range:.................................-10 ˚C … +60 ˚C
  • Maximum relative humidity:.....................90 % RH (-10 ˚C … +40 ˚C)
  • .................................................................80 % RH (40 ˚C … 60 ˚C)

Accuracies apply for 1 year in reference conditions. Temperature coefficient outside these limits is 0.2 % of measured value per C plus 1 digit, otherwise noted.

Fuses: 2 x T 16 A / 250 V, 32 mm  6.3 mm / 1500 A

The Metrel MI3360 OmegaPAT XA comes with:
  • Metrel MI3360 OmegaPAT XA PAT Tester
  • Bag for accessories
  • Smartball pen with touch screen function
  • Flash test probe (MI 3360 F only)
  • Crocodile clip, red (MI 3360 F only)
  • IEC test cable, 2 m
  • Test lead, black
  • Test tip, black
  • Alligator clip, black
  • Mains cable
  • USB cable
  • Calibration Certificate
  • Short form instruction manual
  • CD with instruction manual (full version) and PC SW Metrel ES Manager
