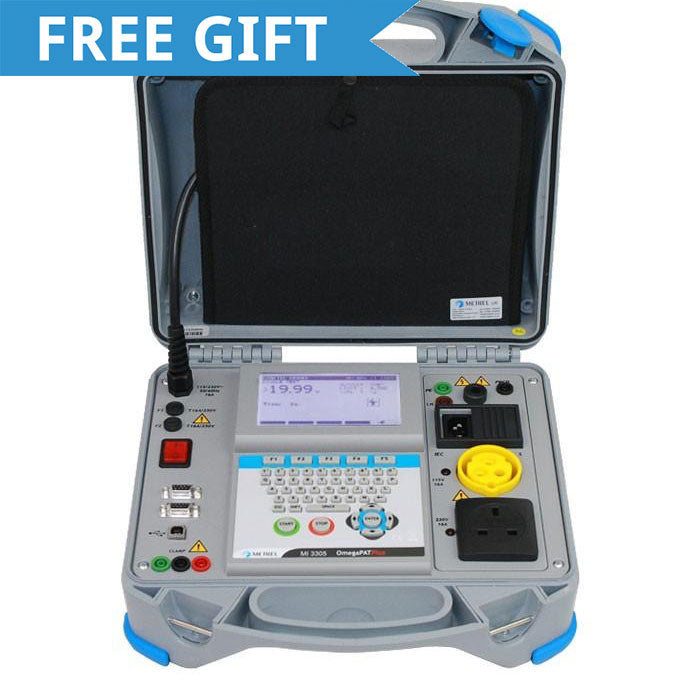

Metrel OmegaPAT Plus PAT Tester

  • Internal memory for storing downloadable results on the tester
  • A sturdy PAT tester with tough briefcase style housing.
  • Multiple tests including 110V appliance testing, portable RCD testing and flash testing

£1,165.00 EXC. VAT

IN STOCK

Description

The Metrel OmegaPAT Plus is a comprehensive, dual voltage appliance tester complete with onboard memory storage and download functions. The OmegaPAT Plus tester performs the standard Class I, Class II and IEC/Extension Lead tests as well as 110V, portable RCD and flash testing.

The MI3305 OmegaPAT has over 100 pre-programmed auto test sequences suitable for the majority of appliances, with space for an extra 50 user defined sequences to be saved. This makes portable appliance testing much quicker and easier, allowing more assets to be tested in a shorter space of time. Connect a barcode scanner and label printer to the OmegaPAT Plus to further improve efficiency of your PAT testing business.

Using the supplied PATLink PRO software, results can be downloaded from the Metrel MI3305 OmegaPAT Plus to a PC for storage and the creation of professional PAT certification for clients. The OmegaPAT Plus is a fully compliant PAT tester with extensive features and functionality that make it perfect for electricians and contractors testing electrical safety on a wide range of appliances in workshops, repair shops and hire shops as well as in commercial environments.

Key Features

  • Test both 110V and 230V appliances, portable RCDs and perform a flash test
  • Store test results and download to a PC via USB or RS232
  • Use supplied Metrel PATLink Pro software to create PAT certificates
  • Over 100 auto test sequences with space for additional personalised ones
  • QWERTY keyboard and large display with help screens for simpler operation
  • Measure True RMS and Load Current using optional clamp current adaptor

Specification

Earth Bond Continuity

  • Currents: 100mA DC, 4A, 10A or 25A AC
  • Measuring Range: 0.00-19.9 ohms

Insulation Test

  • Voltage: 250V or 500V DC
  • Measuring Range: 0.000 - 199.9 Mohms

Substitute Leakage

  • Voltage: 40V
  • Measuring range: 0.00- 1.99 mA

Touch Leakage

  • Measuring range: 0.00- 19.99 mA

Differential Leakage

  • Measuring range: 0.00- 19.99 mA

Flash Test

  • Voltage: 1500 Volts AC for Class 1 Appliances - 3000 Volts AC for Class II Appliances

Load Test

  • Measuring range: 0 - 4 kVA

Polarity

  • Output Voltage: 40V
  • Faults: open, short, crossed, multiple fault

Portable RCD

  • Trip-out time readout: 0 ms - 1999 ms (½x) ±3 ms
  • Test currents: 10 mA, 15 mA, 30 mA  0 ms - 300 ms ±3 ms
  • Test current multipliers ½,1, 2 and 5x   0 ms - 150 ms ±3 ms
  • Test modes: single, autotest 0 ms - 40 ms (5x) ±3 ms

Trip out times

  • ½x > 300ms
  • 1x < 300ms
  • 5x <40ms

General

  • Dimensions: 335 x 160 x 335mm
  • Weight: 8.4kg

Supplied Accessories

The Metrel OmegaPAT Plus comes with:

  • Metrel PATLink Pro software
  • USB Download lead
  • RS232 Download lead
  • Earth bond test lead
  • Portable RCD test probe
  • Flash test probe
  • Manufacturers Calibration Certificate
  • Instruction Manual
  • 36 Month Warranty

Kit Options

The Metrel OmegaPAT Plus is available in a range of kits:

Kit A Kit B
Metrel OmegaPAT Plus
Metrel PATLink Pro Software
Metrel PATLink Pro PLUS Software
Metrel Barcode Scanner
1000 Barcode Appliance ID Labels
Metrel PAT Testing DVD
Microwave Leakage Detector
150 Microwave Emission Labels
IEC Adaptor Kit
230V Extension Lead Adaptor
110V Extension Lead Adaptor
1000 Pass Labels
200 Fail Labels
250 Tuff Tag Labels
