Metrel OmegaPAT Plus Kit A

  • Tests at 230V and 110V as well as portable RCD and flash tests
  • Barcode scanner and ID labels included for appliance ID
  • IEC adaptors allow testing of extension leads

£1,229.00 EXC. VAT

IN STOCK

Description

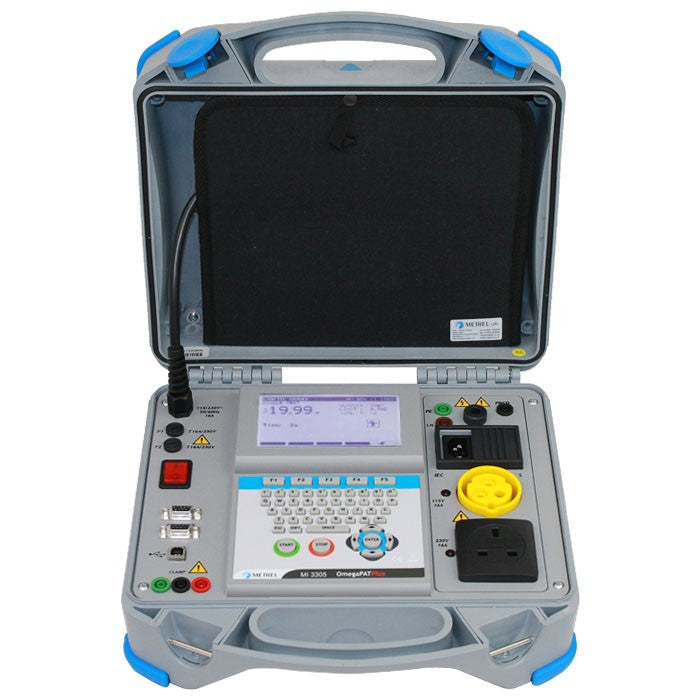

The Metrel OmegaPAT Plus PAT Tester offers extended portable appliance testing including IT equipment, IEC Leads, portable RCD and flash testing. The dual voltage OmegaPAT is capable of quickly testing both 230V and 110V electrical equipment and has an onboard memory for storing the results.

With over 100 pre-programmed auto test sequences, the Metrel MI3305 OmegaPAT Plus tester is suitable for safety testing almost any appliance and has space for 50 additional, user customised sequences that enable PAT testing to be built around your own individual needs.

The OmegaPAT Tester allows stored results to be downloaded to a PC, where database management, results analysis and test reports can all be professionally performed.

Complete with a user friendly interface and full QWERTY keyboard, the Omega PAT is a great choice for testing appliances in workshops, repair & hire shops as well as in commercial and other industrial environments.

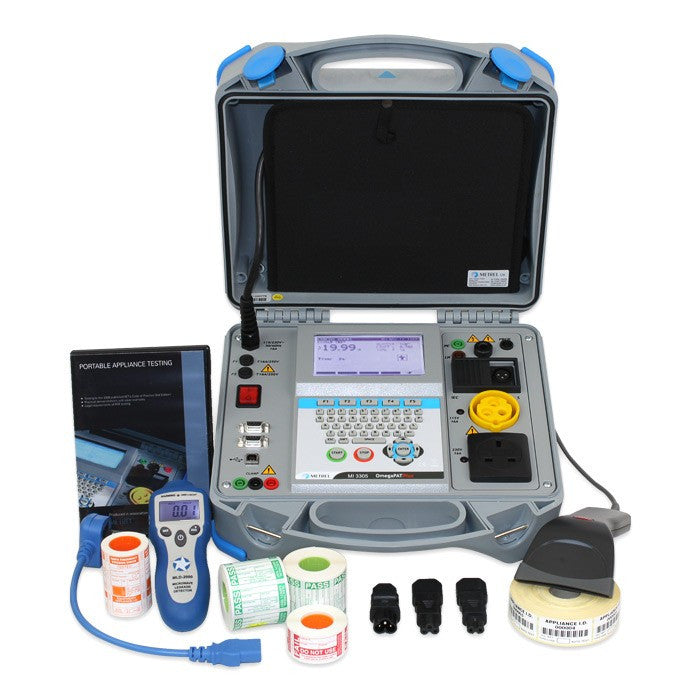

Metrel OmegaPAT Plus PAT Kit A Includes:

  • Metrel MI3309 OmegaPAT Plus Tester (complete with Earth Bond Test Lead & Crocodile Clip, Portable RCD Test Probe, Flash Test Probe, USB & RS232 Download Leads, OmegaPAT Instruction Manual and Calibration Certificate).
  • Metrel PATLink Pro Software
  • Metrel Barcode Scanner
  • 1000 Barcode Appliance ID Labels
  • Metrel PAT Testing DVD
  • Microwave Leakage Detector
  • 150 Microwave Emission Labels
  • IEC Adaptor Kit
  • 230V Extension Lead Adaptor
  • 1000 Pass Labels
  • 200 Fail Labels

For more detailed information on the Metrel OmegaPAT Plus Portable Appliance Tester please click here.

Kit A Kit B
Metrel OmegaPAT Plus
Metrel PATLink Pro Software
Metrel PATLink Pro PLUS Software
Metrel Barcode Scanner
1000 Barcode Appliance ID Labels
Metrel PAT Testing DVD
Microwave Leakage Detector
150 Microwave Emission Labels
IEC Adaptor Kit
230V Extension Lead Adaptor
110V Extension Lead Adaptor
1000 Pass Labels
200 Fail Labels
250 Tuff Tag Labels

Specification

Earth Bond Continuity

  • Currents: 100mA DC, 4A, 10A or 25A AC
  • Measuring Range: 0.00-19.9 ohms

Insulation Test

  • Voltage: 250V or 500V DC
  • Measuring Range: 0.000 - 199.9 Mohms

Substitute Leakage

  • Voltage: 40V
  • Measuring range: 0.00- 1.99 mA

Touch Leakage

  • Measuring range: 0.00- 19.99 mA

Differential Leakage

  • Measuring range: 0.00- 19.99 mA

Flash Test

  • Voltage: 1500 Volts AC for Class 1 Appliances - 3000 Volts AC for Class II Appliances

Load Test

  • Measuring range: 0 - 4 kVA

Polarity

  • Output Voltage: 40V
  • Faults: open, short, crossed, multiple fault

Portable RCD

  • Trip-out time readout: 0 ms - 1999 ms (½x) ±3 ms
  • Test currents: 10 mA, 15 mA, 30 mA  0 ms - 300 ms ±3 ms
  • Test current multipliers ½,1, 2 and 5x   0 ms - 150 ms ±3 ms
  • Test modes: single, autotest 0 ms - 40 ms (5x) ±3 ms

Trip out times

  • ½x > 300ms
  • 1x < 300ms
  • 5x <40ms

General

  • Dimensions: 335 x 160 x 335mm
  • Weight: 8.4kg

Supplied Accessories

Metrel OmegaPAT Kit A comes with:
  • Metrel MI3309 OmegaPAT Plus Tester (complete with Earth Bond Test Lead & Crocodile Clip, Portable RCD Test Probe, Flash Test Probe, USB & RS232 Download Leads, OmegaPAT Instruction Manual and Calibration Certificate).
  • Metrel PATLink Pro Software
  • Metrel Barcode Scanner
  • 1000 Barcode Appliance ID Labels
  • Metrel PAT Testing DVD
  • Microwave Leakage Detector
  • 150 Microwave Emission Labels
  • IEC Adaptor Kit
  • 230V Extension Lead Adaptor
  • 1000 Pass Labels
  • 200 Fail Labels

The Metrel OmegaPAT Plus PAT Tester offers extended portable appliance testing including IT equipment, IEC Leads, portable RCD and flash testing. The dual voltage OmegaPAT is capable of quickly testing both 230V and 110V electrical equipment and has an onboard memory for storing the results.

With over 100 pre-programmed auto test sequences, the Metrel MI3305 OmegaPAT Plus tester is suitable for safety testing almost any appliance and has space for 50 additional, user customised sequences that enable PAT testing to be built around your own individual needs.

The OmegaPAT Tester allows stored results to be downloaded to a PC, where database management, results analysis and test reports can all be professionally performed.

Complete with a user friendly interface and full QWERTY keyboard, the Omega PAT is a great choice for testing appliances in workshops, repair & hire shops as well as in commercial and other industrial environments.

Metrel OmegaPAT Plus PAT Kit A Includes:

  • Metrel MI3309 OmegaPAT Plus Tester (complete with Earth Bond Test Lead & Crocodile Clip, Portable RCD Test Probe, Flash Test Probe, USB & RS232 Download Leads, OmegaPAT Instruction Manual and Calibration Certificate).
  • Metrel PATLink Pro Software
  • Metrel Barcode Scanner
  • 1000 Barcode Appliance ID Labels
  • Metrel PAT Testing DVD
  • Microwave Leakage Detector
  • 150 Microwave Emission Labels
  • IEC Adaptor Kit
  • 230V Extension Lead Adaptor
  • 1000 Pass Labels
  • 200 Fail Labels

For more detailed information on the Metrel OmegaPAT Plus Portable Appliance Tester please click here.

Kit A Kit B
Metrel OmegaPAT Plus
Metrel PATLink Pro Software
Metrel PATLink Pro PLUS Software
Metrel Barcode Scanner
1000 Barcode Appliance ID Labels
Metrel PAT Testing DVD
Microwave Leakage Detector
150 Microwave Emission Labels
IEC Adaptor Kit
230V Extension Lead Adaptor
110V Extension Lead Adaptor
1000 Pass Labels
200 Fail Labels
250 Tuff Tag Labels

Earth Bond Continuity

  • Currents: 100mA DC, 4A, 10A or 25A AC
  • Measuring Range: 0.00-19.9 ohms

Insulation Test

  • Voltage: 250V or 500V DC
  • Measuring Range: 0.000 - 199.9 Mohms

Substitute Leakage

  • Voltage: 40V
  • Measuring range: 0.00- 1.99 mA

Touch Leakage

  • Measuring range: 0.00- 19.99 mA

Differential Leakage

  • Measuring range: 0.00- 19.99 mA

Flash Test

  • Voltage: 1500 Volts AC for Class 1 Appliances - 3000 Volts AC for Class II Appliances

Load Test

  • Measuring range: 0 - 4 kVA

Polarity

  • Output Voltage: 40V
  • Faults: open, short, crossed, multiple fault

Portable RCD

  • Trip-out time readout: 0 ms - 1999 ms (½x) ±3 ms
  • Test currents: 10 mA, 15 mA, 30 mA  0 ms - 300 ms ±3 ms
  • Test current multipliers ½,1, 2 and 5x   0 ms - 150 ms ±3 ms
  • Test modes: single, autotest 0 ms - 40 ms (5x) ±3 ms

Trip out times

  • ½x > 300ms
  • 1x < 300ms
  • 5x <40ms

General

  • Dimensions: 335 x 160 x 335mm
  • Weight: 8.4kg
Metrel OmegaPAT Kit A comes with:
  • Metrel MI3309 OmegaPAT Plus Tester (complete with Earth Bond Test Lead & Crocodile Clip, Portable RCD Test Probe, Flash Test Probe, USB & RS232 Download Leads, OmegaPAT Instruction Manual and Calibration Certificate).
  • Metrel PATLink Pro Software
  • Metrel Barcode Scanner
  • 1000 Barcode Appliance ID Labels
  • Metrel PAT Testing DVD
  • Microwave Leakage Detector
  • 150 Microwave Emission Labels
  • IEC Adaptor Kit
  • 230V Extension Lead Adaptor
  • 1000 Pass Labels
  • 200 Fail Labels
