Neutrik PowerCON True 1 PAT Testing Adaptor Set

  • Connect to one another via IP65-rated locking mechanism
  • Suitable for testing Neutrik PowerCON True1 power and extension leads
  • Easy to connect and disconnect to one another and to leads under test

£24.95 EXC. VAT

IN STOCK

Description

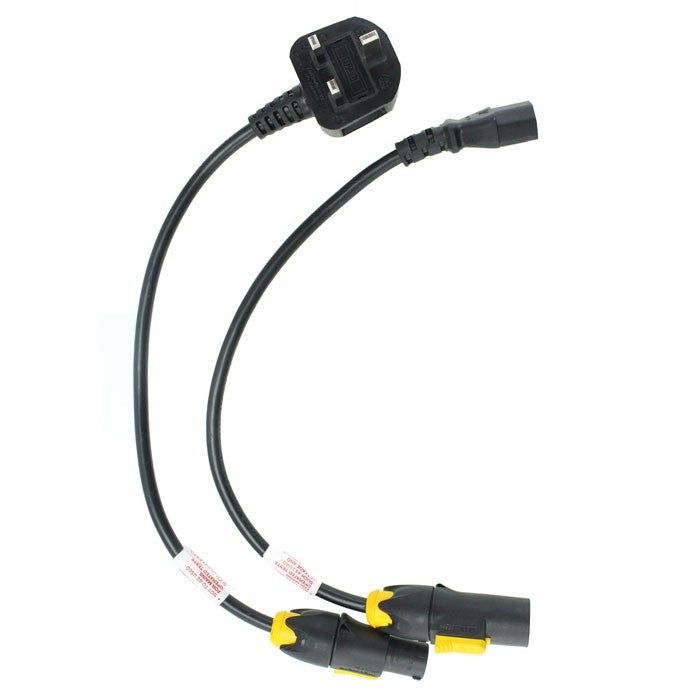

The Neutrik powerCON True1 PAT Testing Adaptor Set contains two adaptors which have lockable, waterproof (IP65) connections that can be used to test Neutrik PowerCON True1 Leads and cables which are typically used for powering appliances outdoors. Earth bond testing and insulation resistance testing are possible with these adaptors but they should never be plugged into the mains as they are unsuitable for powered tests. Firstly, there is a male connector to mains plug adaptor and secondly there is a female connector to IEC plug adaptor.

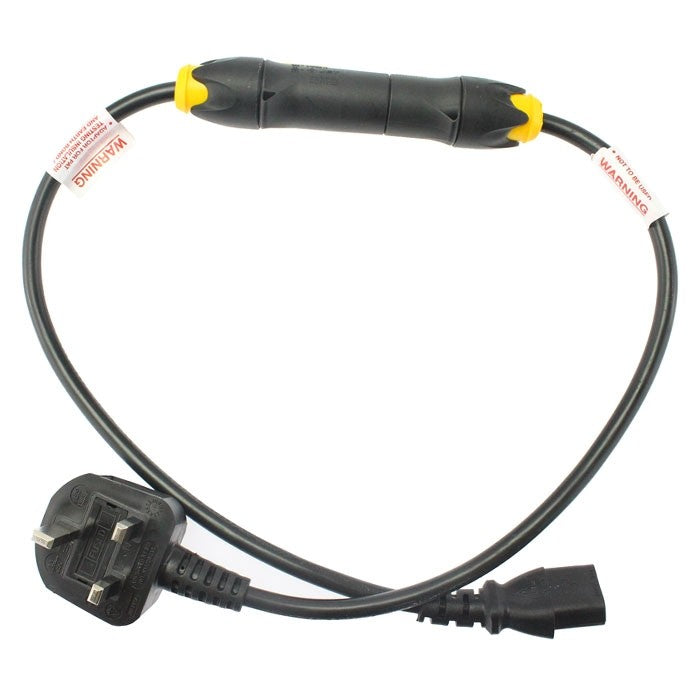

Together, the two adaptors can be used to convert a 16A mains plug to an IEC plug via their interlocking, waterproof connections which makes them ideal for use when workers are exposed to the elements. They are compliant with IEC 60320 and VDE 0625 standard and have power breaking capacity so can be disconnected or connected whilst the power is on.

Neutrik part number: NAC3FX-W / NAC3MX-W

Key Features
  • Female connection adaptor to IEC plug
  • Male connection adaptor to 16A mains plug
  • Lockable, weatherproof connection
  • 250V AC / 16A max. rated

Specification

Electrical

  • Contact resistance: ≤ 3 mΩ
  • Dielectric strength: 4 kVdc / 2.8 kVac
  • Insulation resistance: > 0,1 GΩ (after damp heat test IEC 68-2-30)
  • Number of electronical contacts: 2 + PE
  • Rated current per contact: 16 A rms (USA: 20 A)
  • Rated voltage: 250 V ac

Mechanical

  • Cable O.D.: 6 - 12 mm
  • Lifetime: > 5000 mating cycles
  • Wiresize: 1.0 - 2.5 mm²
  • Wiresize: 12 AWG

Material

  • Contact plating: 2 µm Ag
  • Contacts:Bronze (CuSn0.2)
  • Insert: Polyamide (PA 6.6 30 % GR)
  • Locking element: ZuAl4Cu1
  • Shell: Polyamide (PA 6.6 30 % GR)
  • Strain relief: Polyacetal (POM)

Environmental

  • Flammability: UL 94 V-0
  • Protection class: IP 65 (mated)
  • Temperature range: -30 °C to +80 °C

Supplied Accessories

The Neutrik PowerCON True1 PAT Testing Adaptor Set comes with:

  • Neutrik NAC3FX-W Female IEC Adaptor
  • Neutrik NAC3MX-W Male Mains Adaptor

The Neutrik powerCON True1 PAT Testing Adaptor Set contains two adaptors which have lockable, waterproof (IP65) connections that can be used to test Neutrik PowerCON True1 Leads and cables which are typically used for powering appliances outdoors. Earth bond testing and insulation resistance testing are possible with these adaptors but they should never be plugged into the mains as they are unsuitable for powered tests. Firstly, there is a male connector to mains plug adaptor and secondly there is a female connector to IEC plug adaptor.

Together, the two adaptors can be used to convert a 16A mains plug to an IEC plug via their interlocking, waterproof connections which makes them ideal for use when workers are exposed to the elements. They are compliant with IEC 60320 and VDE 0625 standard and have power breaking capacity so can be disconnected or connected whilst the power is on.

Neutrik part number: NAC3FX-W / NAC3MX-W
