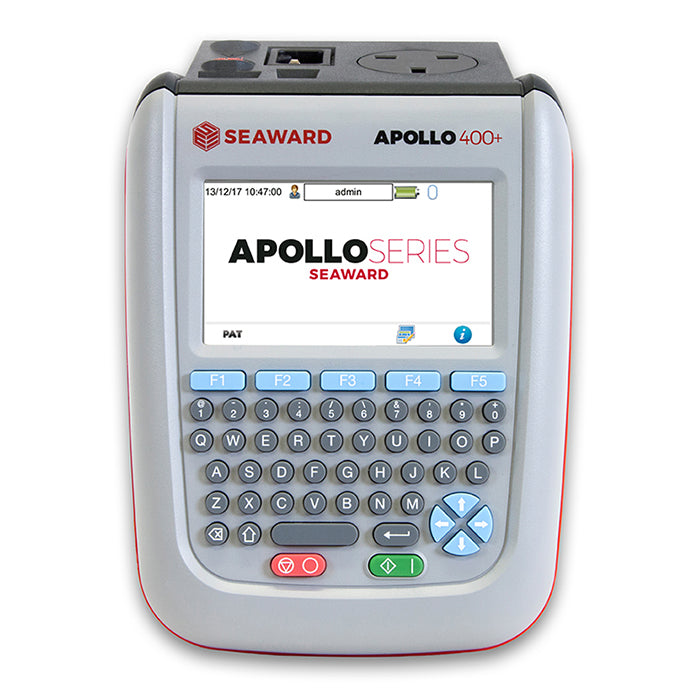

Seaward Apollo 400 Pro Printer Kit

  • Print personalised labels using Test N Tag Pro printer
  • Carry case holds tester with all accessories including labels
  • Barcode scanner works with printed labels to identify appliance

£1,091.00 EXC. VAT

IN STOCK

Description

Ideal for those seeking a flexible, fast PAT instrument, the Apollo 400 provides straight-forward PAT testing, plus storage for up to 2000 appliance records and 25 built-in auto sequence tests.

This kit centres on the Seaward Pro Printer; a portable, durable printer which can be used to print asset numbers, usernames, test status, barcodes, test dates and next date due data onto labels. This official Seaward printer has one of the lowest running costs available at less than 10p per label. The labels included are made of a high quality synthetic material suitable for demanding environments.

The Seaward Barcode scanner included is the most effective way of scanning PAT Labels which have barcodes printed on them. Light and portable, the scanner is powered by 2 AAA batteries and has the major benefit of being Bluetooth compatible for fully wireless operation.

Seaward Apollo 400 PAT Tester Main Features:

  • Downloadable PAT tester with built-in QWERTY keyboard
  • Battery-powered, portable tester (weighing just 1.5kg)
  • Store and download up to 2000 apppliance records
  • Features 25 pre-defined auto sequence tests
  • Connects via Bluetooth to Seaward PAT printers and scanners
  • Carry out tests to ensure full compliance with the 4th Edition IET Code of Practice
  • Suitable for point to point testing for fixed appliances
  • Compatible with Seaward PATGuard 3 software
  • The basic model within Seaward's Apollo range (includes Apollo 400/500/600)
  • Supplied with UKAS calibration certificate and a 2 year warranty

Seaward Apollo 400 Pro Printer Kit Includes:

  • Seaward Apollo 400 PAT Tester + included accessories
  • Seaward Test n’ Tag PRO Printer
  • Bluetooth Barcode Scanner
  • Seaward Apollo Carry Case 71G109
  • 110V Appliance Adaptor
  • 110V Extension Lead Adaptor

For more information on the Seaward Apollo 400 PAT Tester, please click here.

We Have A Choice Of Five Seaward Apollo 400 Kits

  PATGuard Elite Kit Pro Printer Kit Pro Printer + PATGuard Elite Kit Elite Printer Kit Elite Printer + PATGuard Elite Kit
Seaward Apollo 400 + Included Accessories
Seaward PATGuard Elite 3 1-Year (Upgradable)   1-Year (Upgradable)   1-Year (Upgradable)
Seaward PAT Training Course DVD
Seaward Test n' Tag PRO Printer
Seaward Test n Tag ELITE 2 Printer
Bluetooth Barcode Scanner
Seaward Apollo Carry Case 71G109
110V Appliance Adaptor
110V Extension Lead Adaptor
IEC Adaptor Kit
1000 Pass Labels, 200 Fail Labels
& 250 Pass Wrap Labels


Specification

Earth Continuity

  • Test Current: +/- 200mA DC
  • Display Range: 0.01 – 19.99Ω
  • Pass Value: User Defined

Insulation Resistance

  • Test Voltage: 500V / 250VDC @ 1mA nominal
  • Display Range: 0.01MΩ - 19.99MΩ
  • Pass Value: User Defined

IEC Lead Test

  • Test voltage: 5VAC nominal
  • Test: Live / Neutral Checks for o/c, s/c and crossed

Protective Conductor Current/Load

  • Test Voltage: Supply voltage, maximum load current 16A
  • Display Ranges: 0.01mA to 19.99mA
  • Pass Value: User Defined

Touch Current

  • Test Voltage: Supply Voltage, maximum load current 16A
  • Display Range: 0.00 – 3.50mA
  • Pass Value: User defined

Load Power/Current

  • Test Voltage: Supply Voltage, maximum load current 16A
  • Test Duration: Programmable up to a maximum of 255s depending on load. i.e. max duration is reduced for high loads.
  • Display Range: 0.00kVA – 4.00kVA, 0.00A – 16.00A

Alternative Leakage Current

  • Test Voltages: >25VAC <50VAC
  • Display Range: 0.00mA to 19.99mA
  • Pass Value: User Defined

RCD Test

  • Test Voltage: 230V +10%, -15%
  • Test Current: 30mA / 150mA rms sinusoidal
  • Display Range: 0ms - 2000ms (30mA), 0-40ms (150mA)
  • Test method: Internal isolation to avoid tripping distribution board RCD

Power Socket Test

  • Voltage Range: 207V – 253VAC
  • Indicates configuration of voltage potential:- Line potential phase to earth, Line potential phase to neutral, Line potential neutral to earth

General

  • Memory size: 2000 records
  • Weight: 1.5kg
  • Dimensions: 230mm x 150mm x 100mm
  • Power Source: Mains or rechargeable battery pack

Supplied Accessories

The Seaward Pro Printer Kit comes with:

  • Seaward Apollo 400 PAT Tester + included accessories
  • Seaward Test n’ Tag PRO Printer
  • Bluetooth Barcode Scanner
  • Seaward Apollo Carry Case 71G109
  • 110V Appliance Adaptor
  • 110V Extension Lead Adaptor
