Seaward Apollo 500+ Pro Printer Kit

  • Full QWERTY keyboard facilitates easy data entry
  • Internal memory for up to 10,000 results and records
  • Personalised label printing with Test N Tag Pro Printer

£1,484.00 EXC. VAT

IN STOCK

Description

The Seaward Apollo 500+ PAT Tester now has all-new firmware with an improved user interface and a database search function. Furthermore, the tester can now work with a Seaward Test n Tag Elite 2 Printer and Seaward scanner to print and read QR-coded PAT labels. As well as providing more information, QR codes can be scanned by a customer using a smartphone in order to find out full PAT test results and information. A new external battery pack now allows the user to switch the rechargeable battery in the field, thus preventing downtime.

The Apollo 500+ is the latest high specification downloading PAT tester from Seaward. The model is lightweight yet powerful capable of efficiently testing 230V appliances, IT equipment, 110V and even 3 phase equipment. The tester now includes a firmware update with QR code capability and an external battery pack.

The tester boast a built in Risk Assessment Tool designed to allow a user to record potential hazards in a given environment and plan for corrective actions. Further piece of mind comes from the testers complete compliance with the current IEE Code of Practice test recommendations.

The Seaward Barcode scanner included is the most effective way of scanning PAT Labels which have barcodes printed on them. The scanner is extremely light, powered by 2 AAA batteries and has the major benefit of being Bluetooth compatible for fully wireless operation.

This kits primary benefit comes from the Seaward Pro Printer a portable, durable printer which can be used to Print asset numbers, usernames, test status, barcodes, test dates and next date due data. This official Seaward printer has one of the lowest running costs available at less than 10p per label. The labels included are made of a high quality synthetic material suitable for demanding environments.

Seaward part number: 380A9896

Seaward Apollo 500+ PAT Tester Main Features:

  • Ergonomically designed PAT Tester – Designed to fit comfortably in users hands
  • Plug and Play Technology – Designed to speed up testing with an intuitive navigation
  • Advanced fixed appliance testing - Point to point testing on fixed appliances
  • High Definition screen – Large colour screen
  • Full QWERTY Keypad – Speeds up data input
  • Built in Risk Assessment Tool – PAT Tester with Risk Assessment form built in
  • IET compliant PAT Tester – Tester carries out all the tests recommended by the IET
  • Large internal memory – Apollo 500 stores up to 10000 PAT results and records
  • Two ways to download/upload – Transfer data via USB cable or wirelessly via Bluetooth
  • Programmable user tests for non electrical tests and inspections
  • Extensive range of test procedures – quickly and effectively access basic and advanced test

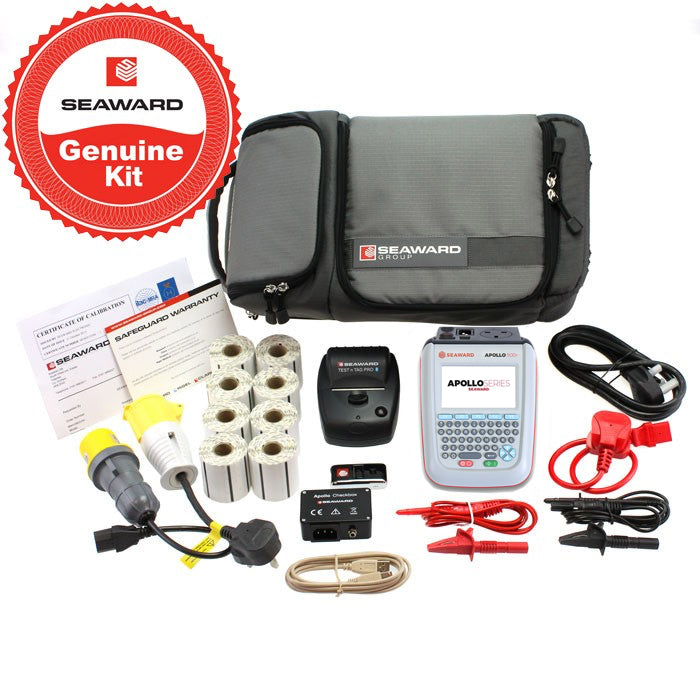

Seaward Apollo 500+ Pro Printer + PATGuard Elite Kit Includes:

  • Seaward Apollo 500+ PAT Tester
  • Seaward Test n’ Tag PRO Printer
  • Seaward Bluetooth Barcode Scanner
  • Seaward Apollo Carry Case 71G109
  • 110V Appliance Adaptor
  • 110V Extension Lead Adaptor
  • Free: 10 x printer label rolls

For more information on the Seaward Apollo 500+ PAT Tester please click here.

 Seaward Barcode Scanner

We Have A Choice Of Five Seaward Apollo 500+ Kits:

  PATGuard Elite Kit Pro Printer Kit (380A9896) Pro Printer + PATGuard Elite Kit (380A9897) Elite Printer Kit (380A9899) Elite Printer + PATGuard Elite Kit (380A9900)
Seaward Apollo 500+ Included Accessories
Seaward PATGuard Elite 3 1-Year (Upgradable)   1-Year (Upgradable)   1-Year (Upgradable)
Seaward Test n' Tag PRO Printer
Seaward Test n Tag ELITE 2 Printer
Seaward Bluetooth Barcode Scanner
Seaward Bluetooth QR and Barcode Scanner
Seaward Apollo Carry Case 71G109
110V Appliance Adaptor
110V Extension Lead Adaptor
IEC Adaptor Kit
1000 Pass Labels, 200 Fail Labels
& 250 Pass Wrap Labels


Specification

Earth Continuity

  • Test Current: +/- 200mA DC
  • Display Range: 0.01 – 19.99Ω
  • Pass Value: User Defined

Insulation Resistance

  • Test Voltage: 500V / 250V DC @ 1mA nominal
  • Display Range: 0.01MΩ - 19.99MΩ
  • Pass Value: User Defined

IEC Lead Test

  • Test voltage: 5V ac nominal
  • Test: Live / Neutral Checks for o/c, s/c and crossed

Protective Conductor Current/Load

  • Test Voltage: Supply voltage, maximum load current 16A
  • Display Ranges: 0.01mA to 19.99mA
  • Pass Value: User Defined

Touch Current

  • Test Voltage: Supply Voltage, maximum load current 16A
  • Display Range: 0.00 – 3.50mA
  • Pass Value: User defined

Load Power/Current

  • Test Voltage: Supply Voltage, maximum load current 16A
  • Test Duration: Programmable up to a maximum of 255s depending on load. i.e. max duration is reduced for high loads.
  • Display Range: 0.00kVA – 4.00kVA 0.00A – 16.00A

Alternative Leakage Current

  • Test Voltages: >25Vac <50Vac
  • Display Range: 0.00mA to 19.99mA
  • Pass Value: User Defined

RCD Test

  • Test Voltage: 230V +10%,-15%
  • Test Current: 30mA / 150mA rms sinusoidal
  • Display Range: 0ms - 2000ms (30mA), 0-40ms (150mA)
  • Test method: Internal isolation to avoid tripping distribution board RCD

Power Socket Test

  • Voltage Range: 207V – 253V AC Indicates configuration of voltage potential:- Line potential phase to earth, Line potential phase to neutral, Line potential neutral to earth

General

  • Memory size 10,000 records
  • Weight 1.5kg
  • Dimensions 230mm x 150mm x 100mm
  • Power Source Mains or Rechargeable battery pack

Supplied Accessories

The Seaward Apollo 500+ Pro Printer Kit comes with:

  • Seaward Apollo 500+ PAT Tester
  • Seaward Test n’ Tag PRO Printer
  • Seaward Bluetooth Barcode Scanner
  • Seaward Apollo Carry Case 71G109
  • 110V Appliance Adaptor
  • 110V Extension Lead Adaptor
  • Free: 10 x printer label rolls
