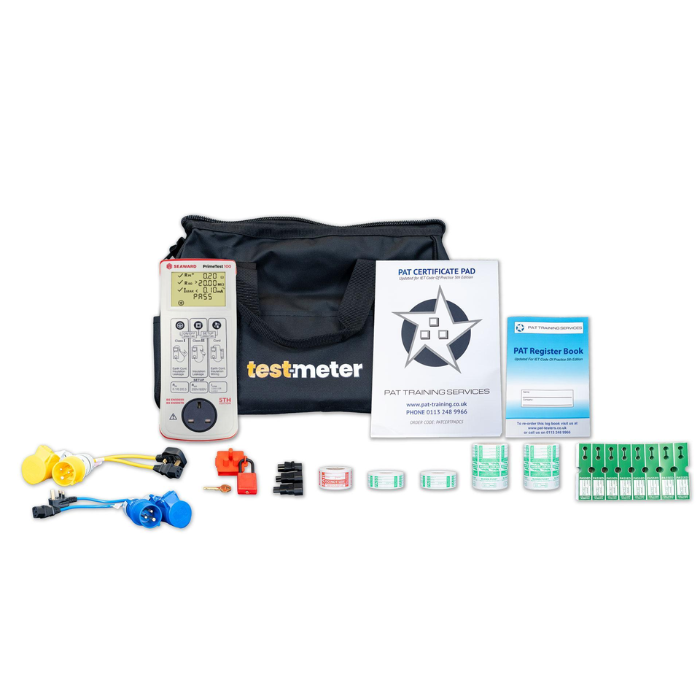

Seaward PrimeTest 100 Maintenance PAT Testing Kit
Currently unavailable for purchase
The Seaward PrimeTest 100 Maintenance PAT Testing Kit is a practical choice for engineers, facilities teams and competent users carrying out routine in-house PAT testing. The battery-powered PrimeTest 100 provides straightforward testing for Class I and Class II appliances and IEC leads, with clear PASS/FAIL results, 250V or 500V insulation testing, adjustable earth continuity limits, Class II FE testing and long lead testing.
It can also check socket wiring and mains voltage, helping identify supply issues before testing begins. Updated for the IET 5th Edition Code of Practice and compliant with BS EN 50699, it is well suited to regular maintenance work where portability and simple operation are important. The PrimeTest 100 can be used with the free Seaward PATMobile App for digital record keeping, barcode scanning, photo tagging, label printing and report generation.
PAT Testing Kit Comparison Guide
|
|
Small Business PAT Testing Kit |
Landlords PAT Testing Kit |
Maintenance PAT Testing Kit |
Industrial PAT Testing Kit |
|
Test Meter Kit Bag |
✔ |
✔ |
✔ |
x 2 |
|
PAT Register Book |
✔ |
✔ |
✔ |
✔ |
|
PAT Certificate Pad |
✔ |
✔ |
✔ |
✔ |
|
Test Meter PRO TMP989 230V 13A Socket Tester |
✔ |
✔ |
||
|
IEC Cloverleaf Adaptor |
✔ |
|||
|
IEC Adaptor Kit |
✔ |
✔ |
✔ |
|
|
500 Pass labels |
x 2 |
x 2 |
x 2 |
x 2 |
|
250 Pass Wrap labels |
✔ |
x2 |
x 2 |
x 2 |
|
200 Fail labels |
✔ |
✔ |
✔ |
✔ |
|
250 Tuff Tag Cable Wrap Labels |
✔ |
✔ |
||
|
16A 110V Appliance Adaptor and Extension Lead Adaptor |
✔ |
✔ |
||
|
PL13 230V 13A Plug Lockout & Padlock |
✔ |
✔ |
||
|
16A 230V Appliance Adaptor and Extension Lead Adaptor |
✔ |
✔ |
||
|
32A 110V Appliance Adaptor and IEC Extension Lead Adaptor |
✔ |
|||
|
32A 230V Appliance Adaptor and Extension Lead Adaptor |
✔ |
|||
|
16A & 32A 4 and 5 Pin Appliance Adaptors and IEC Extension Lead Adaptors |
✔ |
- Battery-powered handheld PAT tester for portable, efficient appliance testing
- Simple push-button test sequences for Class I appliances, Class II appliances and IEC leads
- Clear LCD display with measured values and PASS/FAIL indication
- Selectable 250V and 500V insulation resistance testing for different appliance requirements
- User-selectable earth continuity limits and Seaward ZAP technology for reliable continuity measurements
- Long lead testing and Class II FE testing for broader PAT testing coverage
- Mains socket wiring and voltage check when connected to a power outlet
- Compatible with the Seaward PATMobile App for digital record keeping, barcode scanning, photo tagging, label printing and reporting
- Includes IEC, 110V and 230V adaptor options for testing common office, site and industrial equipment
Earth Continuity
- Test Current: +/- 200mA DC
- Display Range: 0.00 – 19.99Ω
- Pass Value: 0.1/0.2/0.3 Ω
Insulation Resistance
- Test Voltages: 250/500V DC
- Display Range: 0.20 – 19.99MΩ
- Pass Value: 1/2MΩ
IEC Lead Test
- Tests Performed:
- Earth continuity
- Insulation resistance
- Live, neutral continuity and polarity
Equivalent Leakage
- Test Voltage: 40V, 50Hz, AC nominal
- Display Range: 0.1mA to 5.00mA
- Pass Value: 5.00mA
Power Socket test
- Input Voltage Range: 230V +10%, -15% AC
- Indicators:
- Phase to earth voltage
- Phase to neutral voltage
- Neutral to earth
General Specifications
- Dimensions: 265 x 105 x 52mm (h x w x d)
- Weight: 800g
- Power Source: 6 x AA Batteries
- Seaward PrimeTest 100 PAT Tester
- Test-Meter Kit Bag
- PAT Register Book
- PAT Certificate Pad
- IEC Adaptor Kit
- 2x 500 Pass labels
- 2x 250 Pass Wrap labels
- 200 Fail labels
- 250 Tuff Tag Cable Wrap Labels
- 16A 110V Appliance Adaptor and Extension Lead Adaptor
- PL13 230V 13A Plug Lockout & Padlock
- 16A 230V Appliance Adaptor and Extension Lead Adaptor
