Seaward PrimeTest 100 Small Business PAT Testing Kit
Currently unavailable for purchase
The Seaward PrimeTest 100 Small Business PAT Testing Kit is a practical solution for businesses carrying out straightforward, low-volume portable appliance testing. Updated for the IET 5th Edition Code of Practice and compliant with BS EN 50699, the compact, battery-powered PrimeTest 100 provides pre-programmed test sequences for Class I and Class II appliances and mains cords.
A large LCD display shows PASS/FAIL indications and measured values clearly, while selectable 250 V or 500 V insulation testing, user-selectable earth continuity limits, Class II FE testing and long lead testing provide flexibility for different equipment. The built-in socket check can also verify mains voltage and wiring when connected to a power outlet. Results can be recorded manually or entered digitally using the free Seaward PATMobile App, which supports features including barcode scanning, photo tagging, label printing and reporting. The kit includes accessories to support testing, documentation and equipment identification.
PAT Testing Kit Comparison Guide
|
|
Small Business PAT Testing Kit |
Landlords PAT Testing Kit |
Maintenance PAT Testing Kit |
Industrial PAT Testing Kit |
|
Test Meter Kit Bag |
✔ |
✔ |
✔ |
x 2 |
|
PAT Register Book |
✔ |
✔ |
✔ |
✔ |
|
PAT Certificate Pad |
✔ |
✔ |
✔ |
✔ |
|
Test Meter PRO TMP989 230V 13A Socket Tester |
✔ |
✔ |
||
|
IEC Cloverleaf Adaptor |
✔ |
|||
|
IEC Adaptor Kit |
✔ |
✔ |
✔ |
|
|
500 Pass labels |
x 2 |
x 2 |
x 2 |
x 2 |
|
250 Pass Wrap labels |
✔ |
x2 |
x 2 |
x 2 |
|
200 Fail labels |
✔ |
✔ |
✔ |
✔ |
|
250 Tuff Tag Cable Wrap Labels |
✔ |
✔ |
||
|
16A 110V Appliance Adaptor and Extension Lead Adaptor |
✔ |
✔ |
||
|
PL13 230V 13A Plug Lockout & Padlock |
✔ |
✔ |
||
|
16A 230V Appliance Adaptor and Extension Lead Adaptor |
✔ |
✔ |
||
|
32A 110V Appliance Adaptor and IEC Extension Lead Adaptor |
✔ |
|||
|
32A 230V Appliance Adaptor and Extension Lead Adaptor |
✔ |
|||
|
16A & 32A 4 and 5 Pin Appliance Adaptors and IEC Extension Lead Adaptors |
✔ |
- IET 5th Edition Code of Practice and BS EN 50699 compliant
- Compact, handheld and battery-powered for portable PAT testing
- Simple push-button test sequences for Class I, Class II and mains cord testing
- Clear PASS/FAIL indication with measured test result values
- Selectable 250V/500V insulation resistance testing for greater flexibility
- User-selectable earth continuity limits to suit different testing requirements
- Long lead test function for extension leads and longer mains leads
- Class II FE test capability for applicable equipment
- Built-in socket check for mains voltage and wiring verification
- Seaward ZAP technology for reliable earth continuity measurements
- Compatible with the free Seaward PATMobile App for digital record keeping
Earth Continuity
- Test Current: +/- 200mA DC
- Display Range: 0.00 – 19.99Ω
- Pass Value: 0.1/0.2/0.3 Ω
Insulation Resistance
- Test Voltages: 250/500V DC
- Display Range: 0.20 – 19.99MΩ
- Pass Value: 1/2MΩ
IEC Lead Test
- Tests Performed:
- Earth continuity
- Insulation resistance
- Live, neutral continuity and polarity
Equivalent Leakage
- Test Voltage: 40V, 50Hz, AC nominal
- Display Range: 0.1mA to 5.00mA
- Pass Value: 5.00mA
Power Socket test
- Input Voltage Range: 230V +10%, -15% AC
- Indicators:
- Phase to earth voltage
- Phase to neutral voltage
- Neutral to earth
General Specifications
- Dimensions: 265 x 105 x 52mm (h x w x d)
- Weight: 800g
- Power Source: 6 x AA Batteries

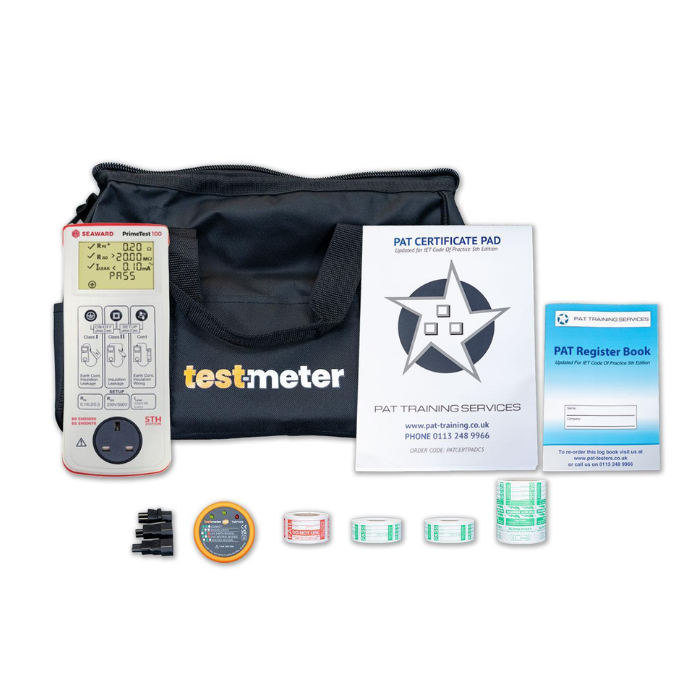

- Seaward PrimeTest 100 PAT Tester
- Test-Meter Kit Bag
- PAT Register Book
- PAT Certificate Pad
- Test Meter PRO TMP989 230V 13A Socket Tester
- IEC Adaptor Kit
- 2x 500 Pass labels
- 250 Pass Wrap labels
- 200 Fail labels
