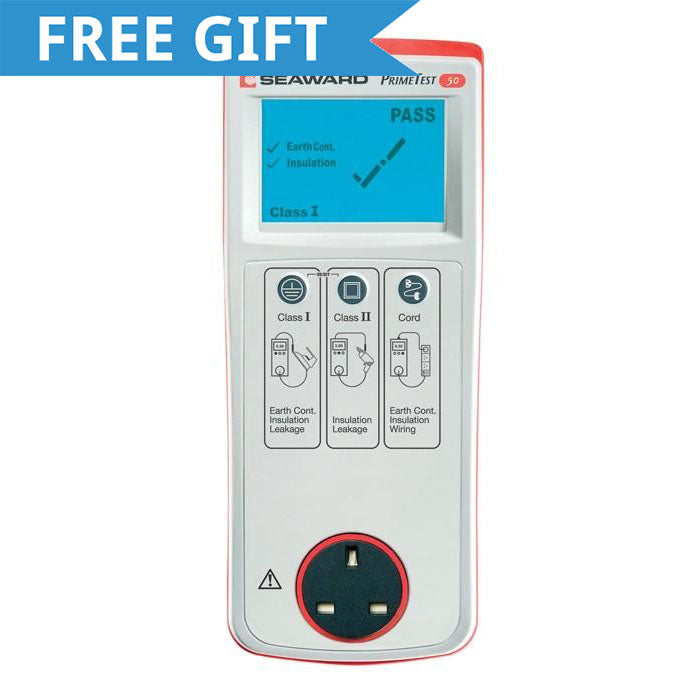

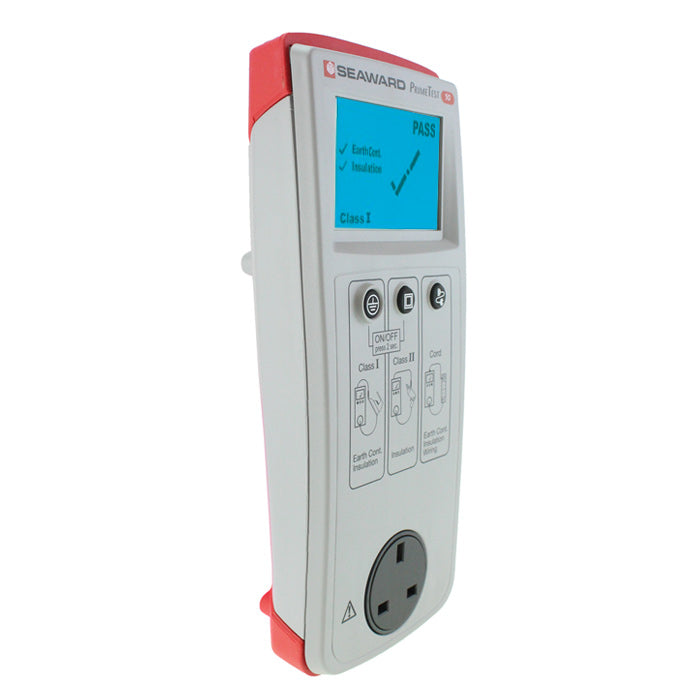

Seaward Primetest 50 PAC Checker
- A lightweight, compact PAT tester
- The ideal budget choice for novice users
- Simple operation works complemented by onscreen Pass/Fail indication
The Seaward Primetest 50 Portable Appliance Checker is a handheld, battery powered PAT tester that offers incredibly straightforward operation. Earthed appliances (Class I), double insulated appliances (Class II) and IEC leads can all be tested at the press of a button, allowing fast and efficient PAC checking.
The Seaward Primetest 50 has pre-set pass and fail limits, so upon completion of the test it will clearly display whether the asset has passed or failed the electrical safety test.
Ideal for beginners and those new to PAT testing, the Primetest 50 is the perfect portable appliance checker for testing the electrical safety of UK office equipment including computers, printers, fax machines and computer IEC leads.
The Primetest 50 is also compatible with Seaward’s PATmobile app, available to download now. Allowing you to log results, tag photos, export your data or print labels* from your smart phone, this app offers you the ability to store digital information for your manual PAT tester. (*Label printing feature currently available for Android devices only.)
The Seaward Primetest 50 is the perfect instrument for anyone looking for a quick and simple unit to get them started with electrical safety testing of Class I, Class II and IEC leads.
Key Features
- Simple Pass/Fail Indication
- Handheld and battery powered
- PAT tests at the push of a button
- Suitable for Class 1, Class 2 and IEC leads
| Primetest 50 | Primetest 100 | Primetest 250 | Primetest 250 Plus | |
|---|---|---|---|---|
| Earth Continuity Test | ✔ | ✔ | ✔ | ✔ |
| Insulation Test (250V) | ✔ | ✔ | ||
| Insulation Test (500V) | ✔ | ✔ | ✔ | ✔ |
| Polarity Test | ✔ | ✔ | ✔ | ✔ |
| Leakage Current Test | ✔ | ✔ | ✔ | |
| Touch Current Test | ✔ | ✔ | ||
| Protective Conductor Current Test | ✔ | ✔ | ||
| RCD Trip Time Test | ✔ | ✔ | ||
| PASS/FAIL Indication | ✔ | ✔ | ✔ | ✔ |
| Numeric Reading Values | ✔ | ✔ | ✔ | |
| Extension Lead Test | ✔ | ✔ | ✔ | ✔ |
| Socket Test | ✔ | ✔ | ✔ | ✔ |
| Three-Phase Testing | ✔ | ✔ | ||
| Auto Test Sequences | ✔ | ✔ | ||
| Internal Memory (999 results) | ✔ | |||
| Compatible with Seaward TNT Pro Printer | ✔ |
Earth Continuity
- Test Current: +/- 200mA DC
- PASS/FAIL Threshold: 0.2ohms
Insulation Resistance
- Test Voltages: 500V DC
- PASS/FAIL Threshold: 2Mohms
IEC Lead Test (cord)
- Earth Continuity, Insulation Resistance. Live, Neutral Continuity and Polarity
Power Socket Test
- Input Voltage range 230V +10%, -15% AC
- Indicators: Phase to Earth Voltage, Phase to Neutral Voltage and Neutral to Earth
Dimensions
- 260 x 100mm x 55mm
Weight
- 800g

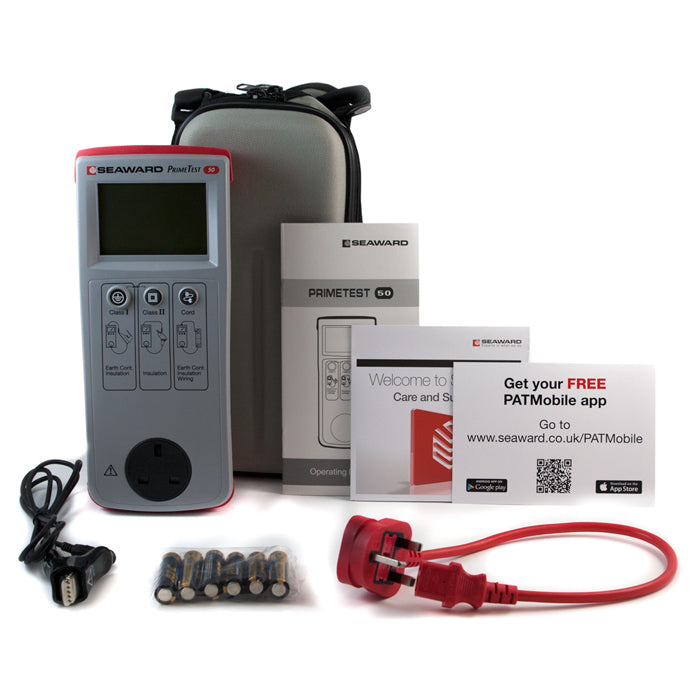

The Seaward Primetest 50 comes with:
- 230V Extension Lead Adaptor
- Test lead with crocodile clip
- Instruction Manual
- 12 Month Warranty
- 6 x AA Batteries
- Carry Case
The Seaward Primetest 50 PAC Checker is available in a range of kits:
- Seaward Primetest 50 Kit A
- Seaward Primetest 50 Kit B
- Seaward Primetest 50 Kit C
- Seaward Primetest 50 Kit D
- Seaward Primetest 50 PATMobile App and Printer Kit
| Kit A | Kit B | Kit C | Kit D | PATMobile App and Printer Kit | |
|---|---|---|---|---|---|
| Seaward Primetest 50 PAT Checker | ✔ | ✔ | ✔ | ✔ | ✔ |
| TEK989 Socket Tester | ✔ | ✔ | ✔ | ✔ | |
| Earth Test Lead & 230V Extension Lead | ✔ | ✔ | ✔ | ✔ | ✔ |
| Seaward PATBag Carry Case & 6 x AA Batteries | ✔ | ✔ | ✔ | ✔ | ✔ |
| PAT Certificate Pad | 1 | 1 | 2 | ||
| PAT Register Book w/ Frequency of Inspection | ✔ | ✔ | ✔ | ||
| IEC Clover Leaf Adaptor | ✔ | ✔ | ✔ | ||
| IEC PAT Adaptor Kit | ✔ | ✔ | |||
| 110V Appliance Adaptor & 110V Extension Lead Adaptor | ✔ | ✔ | ✔ | Appliance Adaptor Only | |
| Test N Tag Bluetooth Printer | ✔ | ||||
| Printer Label Rolls | ✔ | ✔ | ✔ | ✔ | |
| 250 Tuff Tag Pass Cable Wraps | ✔ | ✔ | ✔ | ||
| SimplyPATs Version 7 Manual PAT Software | ✔ | ||||
| Seaward PAT Training Online Course Voucher | ✔ | ✔ | ✔ |
