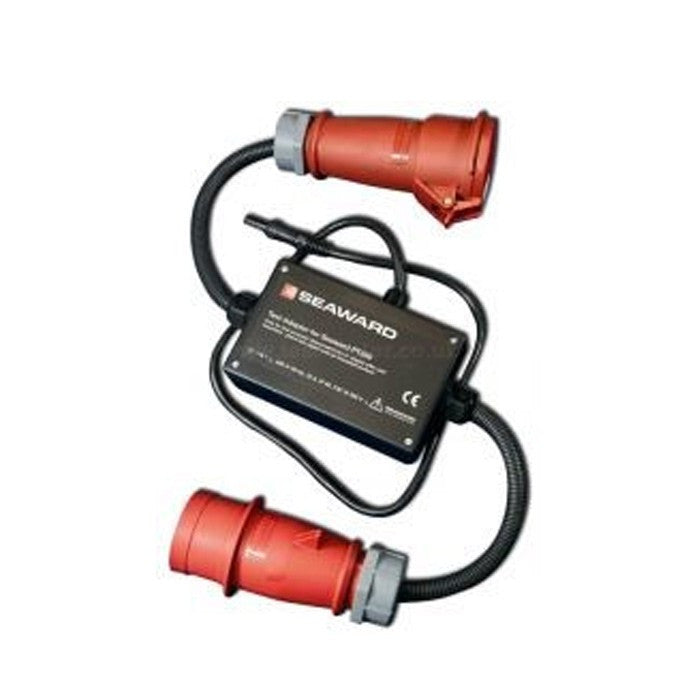

Seaward Three Phase Adaptor (16A)

  • Compatible with the Seaward Primetest 250
  • Requires no further additional power supply and batteries
  • Suitable for supply voltage of 415V and current of 16A

£169.00 EXC. VAT

IN STOCK

Description

The Seaward 3 Phase Adaptor is a unique PAT adaptor that allows earth continuity and protective conductor current tests to be performed on three phase equipment.

This 3 Phase PAT Testing Adaptor is only compatible with the Seaward Primetest 250 and is perfect for use on industrial equipment, tools and appliances found in factories, workshops and on construction sites.

No covers need be removed or wires disconnected from equipment when using this Seaward three phase PAT adaptor, simply connect the adaptor in-line with the appliance under test and then connect to the Primetest 250.

This 16A version of the Seaward TPA has 5 pin (STAR) plugs and sockets and is powered from the 3-phase supply and requires no additional power supply or batteries.

Specifications

  • Earth continuity: On 3-Phase machinery to the specification of the PrimeTest 250 PAT tester
  • Protective conductor current Range: 0.1mA to 9.99mA
  • Accuracy: ± 10% ± 2 digits
  • Supply Voltage: 415V ± 10% at 50Hz
  • Maximum load current: 16A for TPA 5/16
  • Environmental Rating: IP Rating IP40
  • Overvoltage Category: CAT III 300V
  • Part Number: 391A920
