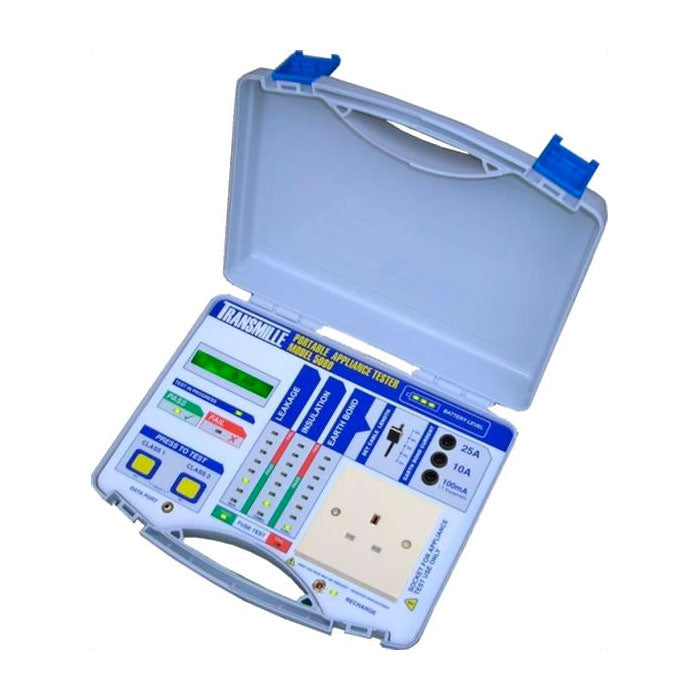

Transmille 5080 PAT Tester

  • Able to carry out 10A and 25A earth bond tests
  • Stores up to 1000 downloadable test results
  • Tough housing allows easy transportation between sites

Currently unavailable for purchase

Description

This product is now out of stock and unavailable for purchase. Please call us on 0113 248 9966 to discuss alternatives or visit our PAT testers page.

The Transmille 5080 is a battery powered portable appliance tester capable of efficiently testing Class I and Class II electrical equipment. The 5080 tester is one of the few battery powered PAT testers to provide 10A & 25A earth bond tests and to test appliances to 1.5x their fuse rating, as recommended by the IET. In addition the Transmille offers the ability to account for different lead lengths using a slider control.

Simply connect the appliance and the earth bond lead, press the desired test button and the sequence will start instantly. Pass/Fail indication is clearly shown via the LED bar display, while the test readings are available on the digital LCD screen.

The Transmille 5080 PAT Tester has an onboard memory for storing up to 1000 results together with a unique ID number and date; these records can then be downloaded to a PC (via an optional data cable) for further analysis and database management.

Key Features

  • Only battery powered PAT tester capable of 10A and 25A earth bond tests
  • Quick and simple to use
  • Memory storage and download functionality
  • Quick LED indication of Pass or Fail and digital display of test readings
  • Supplied with fast charger

Specification

  • Earth Bond Continuity @ 100mA, 10A, 25A
  • Insulation Testing @ 500V DC, Range 0.1-100 Mohms
  • Leakage Current @ 0.1mA to 15mA @ 240V / 50Hz
  • Fuse Test: Pass / Fail: Checks power switch on & fuse OK using 230V.
  • Lead Length Correction Slider control 1 to 5m
  • Battery life: Typical 500 tests before recharging (mains operation possible)
  • Recharge time: 6 Hours
  • Memory Capacity: 1000 Tests (unlimited with PC based storage)
  • Weight & Dimensions 1,9 kg, 280 x 230 x 80mm

Supplied Accessories

The Transmille 5080 comes with:

  • Earth Bond Test Lead
  • Power Charger
  • Instruction Manual
  • 12 Month Warranty

Kit Options

The Transmille 5080 PAT Tester is available in a range of kits:

Kit A Kit B
Transmille 5080 PAT Tester
Pro DRS PAT Software
Microwave Leakage Detector
150 Microwave Emission Labels
TEK989 Socket Checker
RS232 to USB Adaptor
1000 Pass Labels
200 Fail Labels
250 PassWrap Cable Labels
