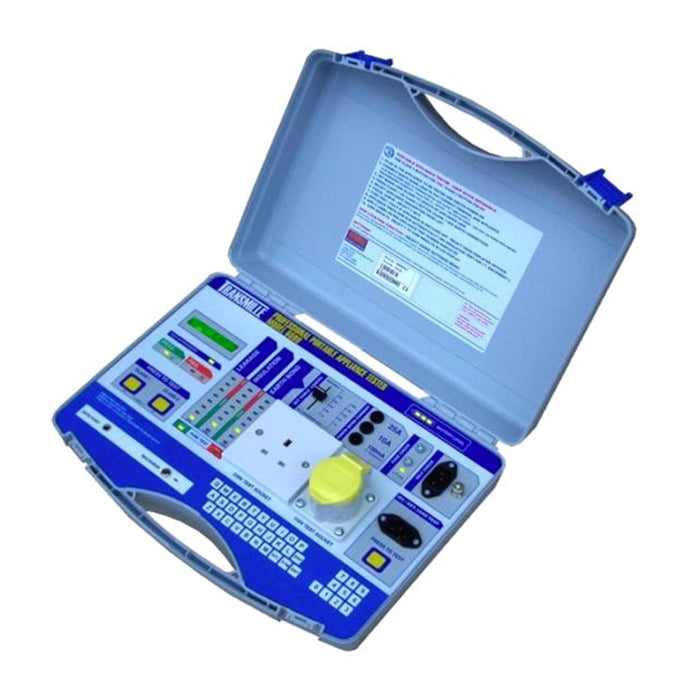

Transmille 6080 Plus PAT Tester

  • Allows testing of both 230V and 110V equipment
  • Fast and accurate appliance data entry on the QWERTY keyboard
  • Download and upload to an advanced memory storage

Currently unavailable for purchase

Description

This product is now out of stock and unavailable for purchase. Please call us on 0113 248 9966 to discuss alternatives or visit our PAT testers page.

The Transmille 6080 Plus is an advanced portable appliance tester has extended test features not usually associated with a battery powered PAT tester. These include testing appliances to 1.5x its fuse rating and a 10A & 25A earth bond test. In addition to this the 6080 plus offers dual voltage operation for extended testing on industrial and construction sites.

Pass/Fail indication is clearly shown via the LED bar display, while the test readings are available on the digital LCD screen. The Transmille 6080 Plus PAT machine also comes complete with a built in self check function, the 6080 appliance tester can verify that it is operating correctly and accurately without the need for a separate checkbox.

The advanced onboard memory of the Transmille 6080 Plus allows the storage of asset details including serial number, ID, location and re-test date; all inputted using the QWERTY keyboard. Stored results can be downloaded to a PC via an additional data cable. The 6080 Plus PAT Tester can also have records uploaded back onto it, thus removing the need to re-enter details of previously tested appliances.

Key Features

  • 230V and 110V operation
  • IEC/Extension Lead testing
  • Only battery powered PAT tester capable of 10A and 25A earth bond tests
  • Advanced memory storage with download & upload functionality
  • Self-check function to ensure ongoing accuracy
  • QWERTY keyboard for efficient data entry

Specification

  • Earth Bond Continuity @ 100mA, 10A, 25A, Range 0 to 10 Ohms
  • Insulation Testing @ 500V DC, Range 0.1-100 Mohms
  • Leakage Current @ 0.1mA to 15mA @ 240V / 50Hz
  • Fuse Test: Pass / Fail: Checks power switch on & fuse OK using 230V.
  • Polarity Test: Checking internal wiring on IEC/Extension Leads
  • Self Check: Earth Bond @ 0.4 Ohms
  • Self Check: Insulation Resistance @ 7MOhms
  • Self Check: Leakage Current @ 1mA
  • Lead Length Correction Slider control 1 to 5m
  • Battery life: Typical 500 tests before recharging (mains operation possible)
  • Recharge time: 6 Hours
  • Memory Capacity: 1000 Tests (unlimited with PC based storage)
  • Weight & Dimensions 3,9 kg, 390 x 280 x 110mm

Supplied Accessories

The Transmille 6080 Plus comes with:
  • Earth Bond Test Lead
  • Power Charger
  • Instruction Manual
  • 12 Month Warranty

This product is now out of stock and unavailable for purchase. Please call us on 0113 248 9966 to discuss alternatives or visit our PAT testers page.

The Transmille 6080 Plus is an advanced portable appliance tester has extended test features not usually associated with a battery powered PAT tester. These include testing appliances to 1.5x its fuse rating and a 10A & 25A earth bond test. In addition to this the 6080 plus offers dual voltage operation for extended testing on industrial and construction sites.

Pass/Fail indication is clearly shown via the LED bar display, while the test readings are available on the digital LCD screen. The Transmille 6080 Plus PAT machine also comes complete with a built in self check function, the 6080 appliance tester can verify that it is operating correctly and accurately without the need for a separate checkbox.

The advanced onboard memory of the Transmille 6080 Plus allows the storage of asset details including serial number, ID, location and re-test date; all inputted using the QWERTY keyboard. Stored results can be downloaded to a PC via an additional data cable. The 6080 Plus PAT Tester can also have records uploaded back onto it, thus removing the need to re-enter details of previously tested appliances.

Key Features

  • 230V and 110V operation
  • IEC/Extension Lead testing
  • Only battery powered PAT tester capable of 10A and 25A earth bond tests
  • Advanced memory storage with download & upload functionality
  • Self-check function to ensure ongoing accuracy
  • QWERTY keyboard for efficient data entry
  • Earth Bond Continuity @ 100mA, 10A, 25A, Range 0 to 10 Ohms
  • Insulation Testing @ 500V DC, Range 0.1-100 Mohms
  • Leakage Current @ 0.1mA to 15mA @ 240V / 50Hz
  • Fuse Test: Pass / Fail: Checks power switch on & fuse OK using 230V.
  • Polarity Test: Checking internal wiring on IEC/Extension Leads
  • Self Check: Earth Bond @ 0.4 Ohms
  • Self Check: Insulation Resistance @ 7MOhms
  • Self Check: Leakage Current @ 1mA
  • Lead Length Correction Slider control 1 to 5m
  • Battery life: Typical 500 tests before recharging (mains operation possible)
  • Recharge time: 6 Hours
  • Memory Capacity: 1000 Tests (unlimited with PC based storage)
  • Weight & Dimensions 3,9 kg, 390 x 280 x 110mm
The Transmille 6080 Plus comes with:
  • Earth Bond Test Lead
  • Power Charger
  • Instruction Manual
  • 12 Month Warranty
