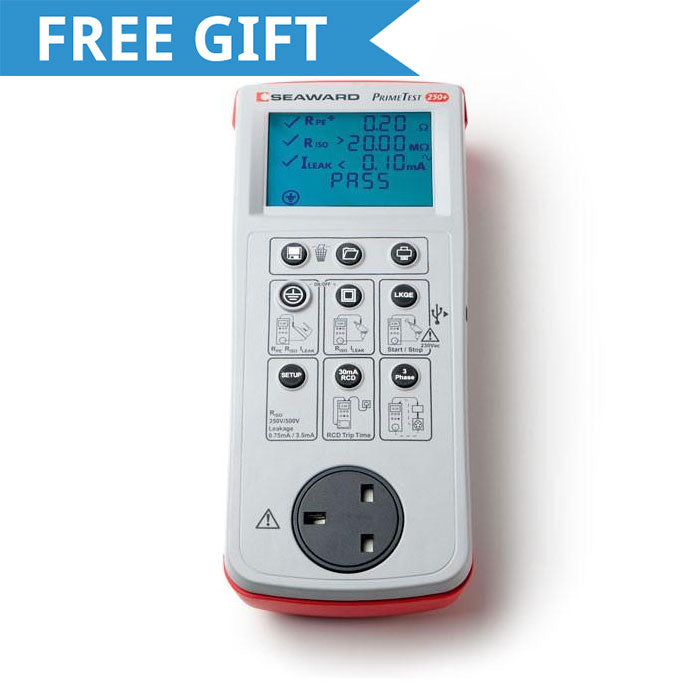

Seaward Primetest 250+ PAT Tester

  • Internal memory for up to 999 test records
  • Compact and lightweight yet powerful
  • Print hard copies with optional Seaward Test N Tag Pro Printer

£504.00 EXC. VAT

IN STOCK

Description

Limited Lifetime Warranty

The Primetest 250 Plus is a portable battery powered PAT Tester with a built in internal memory and downloading capability. The Seaward Primetest 250+ is one of the few PAT Testers available that fully satisfied the latest edition of the IET Code of Practice.

The 250+ is the successor to the popular Seaward Primetest 250 PAT Tester bringing several major improvements designed to speed up effective portable appliance testing. Much like the P250 the instrument is compact and battery powered but now has the ability to store and download 999 test records into the Seaward Datalogging software supplied or CSV format. The Primetest 250+ is also compatible with Seawards PAT Guard 3 Software perfect for creating professional PAT certificates and reports. Test results can be saved at the press of a button and are quickly downloaded to a PC using a standard USB. As another introduction Seaward has ensured all results are time and date stamped for traceability purposes.

Although the model is compact it is powerful carrying out Earth Continuity and Insulations tests along with mains powered tests such as Earth Leakage, Protective Conductive Current and RCD Trip Time testing using the supplied mains lead. These tests ensure that the Primetest 250+ complies fully the latest requirements set by the IET Code of Practice. As a unique feature this instrument will also test on 3-Phase appliances using optional TPA 3-Phase Adaptors one of the only instruments available which can perform in this way.

The Seaward Primetest 250 Plus has been designed to work with the latest Seaward Test N Tag Pro Printer. The Seaward Test N Tag Pro printer is the ideal accessory for speeding up time onsite allowing a user to easily print 52 x 25mm PAT Labels as soon as a test procedure has finished.

The Primetest 250 PLUS has a low set up time and is ready to use out of the box making it one of most modern instruments currently available.

Various kits and bundles are available with this tester offering you great savings on the Test n’ Tag printer, software and other accessories.

*This product qualifies for our exclusive Limited Lifetime Warranty. For more information please click here.

Key Features

  • Trouble-free PAT Testing – All test functions clearly mapped for easy use
  • Portable ergonomic design – Small, lightweight tester allows for one handed operation
  • Comprehensive range of electrical tests – Full compliance with the IET Code of Practice
  • On board internal memory – Capable of storing 999 records for further analysis
  • Seaward Datalogging Software included – Produce reports for clients in minutes
  • Date stamped results for full traceability with single key save and download functions
  • Test 3 phase appliances at the push of a button
  • Plug and play printing - Zero set up time and fault free printing
  • Patent-pending low current earth continuity tests guarantees accurate measurements
  • Designed for use with Seaward Test N Tag Pro printer – Ideal for fast single button printing
  Primetest 50 Primetest 100 Primetest 250 Primetest 250 Plus
Earth Continuity Test
Insulation Test (250V)
Insulation Test (500V)
Polarity Test
Leakage Current Test
Touch Current Test
Protective Conductor Current Test
RCD Trip Time Test
PASS/FAIL Indication
Numeric Reading Values
Extension Lead Test
Socket Test
Three-Phase Testing
Auto Test Sequences
Internal Memory (999 results)
Compatible with Seaward TNT Pro Printer

Specification

Earth Continuity

  • Output Current - 200mA minimum into 2Ω
  • Test Voltage (o/c) - 9V DC nominal
  • Test Duration (Class I Test) - 2s nominal
  • Display Range - 0.01Ω to 19.99Ω
  • Pass Value (Class I Test) - 0.2Ω

Insulation Resistance

  • Test Voltage - 250/500V DC @1mA nominal, <2mA (s/c)
  • Test Duration (Class I or II) - 2s
  • Display Range - 0.01MΩ to 19.99MΩ
  • Pass Value - Class I: 1.0MΩ, Class II: 2.0MΩ

Equivalent Leakage

  • Test Voltage - 40V Nominal AC 50Hz Open Circuit
  • Test Duration - 2s
  • Display Range - 0.1mA to 19.99mA
  • Pass Value - 0.75mA/3.5mA (user selectable with 0.75mA as default)/0.25mA CL II

IEC Lead Test

  • Test Voltage - 5V DC Nominal
  • Test Duration - Time for Test (2s max)
  • Test - Live/Neutral Checks for o/c, s/c and crossed

Protective Conductor Current

  • Test Voltage - Supply voltage, max current 13A
  • Test Duration - 120s Maximum
  • Display Range - 0.15mA to 9.99mA
  • Pass Value - 0.75mA/3.5mA (user selectable with 0.75mA as default)

Touch Current

  • Test Voltage - Supply voltage, max current 13A
  • Test Duration - 120s maximum
  • Display Range - 0.10mA to 3.50mA
  • Pass Value - 0.25mA

3 Phase Differential Leakage Current *Requires 3 phase adaptor accessory

  • Test Voltage - 3 phase supply voltage
  • Test Duration - Continuous measurements
  • Display Range - 0.10mA to 9.99mA
  • Pass Value - 0.75mA/3.5mA (user selectable with 0.75mA as default)

RCD Trip Time

  • Test Voltage - Mains supply voltage
  • Test Current - 30mA/150mA rms sinusoidal
  • Test Current Phase - 0/180° auto switched on alternate tests
  • Measuring Range - 0ms to 500ms
  • Pass Value - 200ms

Power Socket Check

  • Input Voltage Range - 225-254V AC max current 13A UK
  •  Indicates configuration of voltage potentiall - Line to earth, line to neutral, neutral to earth

General

  • Memory Size - 999 Test Records
  • Power Source - 6 x AA Batteries

Supplied Accessories

The Seaward Primetest 250+ comes with:

  • Seaward 0.5m extension lead adaptor
  • Seaward Earth Lead with probe and clip
  • Seaward Mains Lead
  • 6 x AA Batteries
  • USB Download Lead
  • Seaward Carry Case
  • Seaward Operating Instructions

Kit Options

The Seaward Primetest 250+ PAT Tester is available in a range of kits:

  Elements Bundle Pro Bundle Pro Bundle with Software 3-Phase Kit
Seaward Primetest 250+ PAT Tester accessories
110V Appliance Adaptor
Clover Leaf Adaptor
IEC Adaptor Kit
Primetest Checkbox
Seaward PAT Training Online Course Voucher
Seaward PATBag Carry Case

Seaward Test n' Tag Pro Printer (Serial version)

Seaward PATGuard Elements Software
Seaward PATGuard Elite 3 Software
(1 Year Licence)

16A three-phase adaptor
32A three-phase adaptor
