Seaward Primetest 250+ 3-Phase Kit

  • An ideal kit for PAT testing 3-Phase appliances
  • Seaward TPA 3-Phase Adaptors enable testing on 16A and 32A 5 Pin equipment
  • Also includes labels, other adaptors, a socket tester and a microwave leakage detector

£849.00 EXC. VAT

IN STOCK

Description

Limited Lifetime Warranty

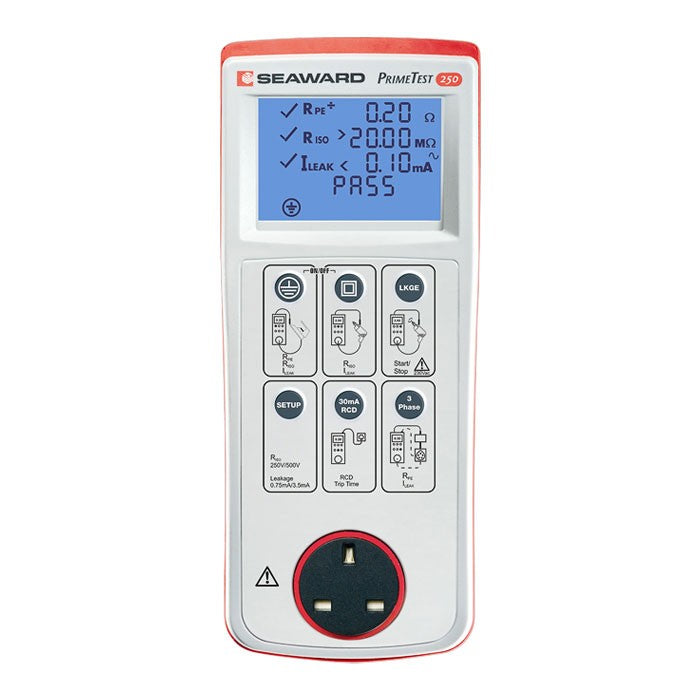

The Seaward Primetest 250+ Portable Appliance Tester offers simple operation for performing PAT testing, RCD testing and 3-phase testing. In addition this PAT tester also has a 250V DC insulation test for sensitive appliances and surge protected leads.

The auto test sequence buttons and clear display of Pass/Fail with test results make the Primetest 250+ PAT tester perfect for both entry-level and intermediate users. With RCD and three-phase functionality, the PT250+ is an extremely versatile PAT tester suitable for a testing a wide range of electrical appliances.

*This product qualifies for our exclusive Limited Lifetime Warranty. For more information please click here.

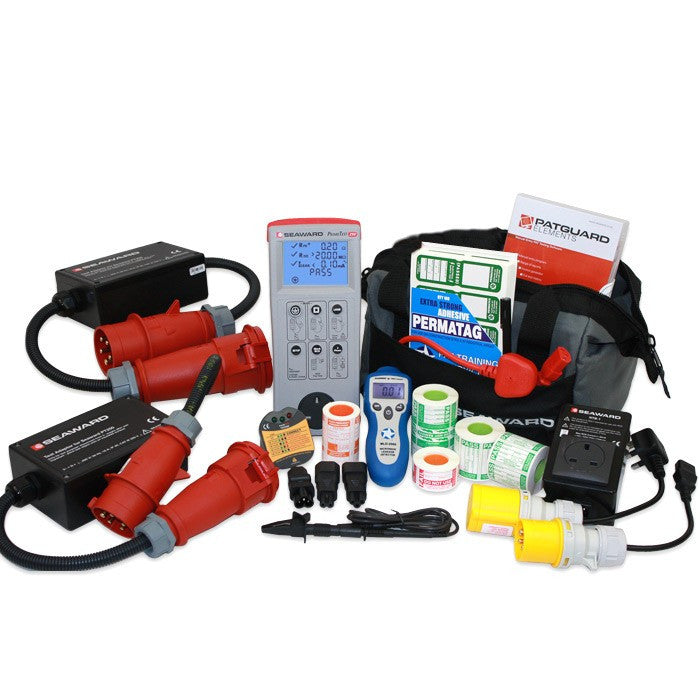

Seaward Primetest 250+ Three-Phase Kit Includes:

  • Seaward Primetest 250 PLUS PAT Tester (complete with Earth Bond Lead & Crocodile Clip, 230V Extension Lead Adaptor, Mains Lead, Primetest 250 Instruction Manual, 6 x AA Batteries and Carry Case)
  • SimplyPATs Version 7 Manual Software
  • Seaward 16A Three Phase Adaptor
  • Seaward 32A Three Phase Adaptor
  • Microwave Leakage Detector
  • 150 x Microwave Emission Labels
  • 110V Appliance Adaptor
  • 110V Extension Lead Adaptor
  • IEC Adaptor Kit
  • TEK989 Socket Tester
  • 1000 Pass Labels
  • 200 Fail Labels
  • 250 PassWrap Cable Labels
  • PermaTAG Industrial Cable Labels
  • Seaward PATBag Carry Case

For more detailed information on the Seaward Primetest 250+ Portable Appliance Tester please click here.

  Elements Bundle Pro Bundle Pro Bundle with Software 3-Phase Kit
Seaward Primetest 250+ PAT Tester accessories
110V Appliance Adaptor
Clover Leaf Adaptor
IEC Adaptor Kit
Primetest Checkbox
Seaward PAT Training Online Course Voucher
Seaward PATBag Carry Case

Seaward Test n' Tag Pro Printer (Serial version)

SimplyPATs Version 7 Manual Software
Seaward PATGuard Elite 3 Software
(1 Year Licence)

16A three-phase adaptor
32A three-phase adaptor

Specification

Earth Continuity

  • Output Current - 200mA minimum into 2Ω
  • Test Voltage (o/c) - 9V DC nominal
  • Test Duration (Class I Test) - 2s nominal
  • Display Range - 0.01Ω to 19.99Ω
  • Pass Value (Class I Test) - 0.2Ω

Insulation Resistance

  • Test Voltage - 250/500V DC @1mA nominal, <2mA (s/c)
  • Test Duration (Class I or II) - 2s
  • Display Range - 0.01MΩ to 19.99MΩ
  • Pass Value - Class I: 1.0MΩ, Class II: 2.0MΩ

Equivalent Leakage

  • Test Voltage - 40V Nominal AC 50Hz Open Circuit
  • Test Duration - 2s
  • Display Range - 0.1mA to 19.99mA
  • Pass Value - 0.75mA/3.5mA (user selectable with 0.75mA as default)/0.25mA CL II

IEC Lead Test

  • Test Voltage - 5V DC Nominal
  • Test Duration - Time for Test (2s max)
  • Test - Live/Neutral Checks for o/c, s/c and crossed

Protective Conductor Current

  • Test Voltage - Supply voltage, max current 13A
  • Test Duration - 120s Maximum
  • Display Range - 0.15mA to 9.99mA
  • Pass Value - 0.75mA/3.5mA (user selectable with 0.75mA as default)

Touch Current

  • Test Voltage - Supply voltage, max current 13A
  • Test Duration - 120s maximum
  • Display Range - 0.10mA to 3.50mA
  • Pass Value - 0.25mA

3 Phase Differential Leakage Current *Requires 3 phase adaptor accessory

  • Test Voltage - 3 phase supply voltage
  • Test Duration - Continuous measurements
  • Display Range - 0.10mA to 9.99mA
  • Pass Value - 0.75mA/3.5mA (user selectable with 0.75mA as default)

RCD Trip Time

  • Test Voltage - Mains supply voltage
  • Test Current - 30mA/150mA rms sinusoidal
  • Test Current Phase - 0/180° auto switched on alternate tests
  • Measuring Range - 0ms to 500ms
  • Pass Value - 200ms

Power Socket Check

  • Input Voltage Range - 225-254V AC max current 13A UK
  •  Indicates configuration of voltage potentiall - Line to earth, line to neutral, neutral to earth

General

  • Memory Size - 999 Test Records
  • Power Source - 6 x AA Batteries

Supplied Accessories

The Seaward Primetest 250 Three-Phase Kit comes with:

  • Seaward Primetest 250 PLUS PAT Tester (complete with Earth Bond Lead & Crocodile Clip, 230V Extension Lead Adaptor, Mains Lead, Primetest 250 Instruction Manual, 6 x AA Batteries and Carry Case)
  • SimplyPATs Version 7 Manual Software
  • Seaward 16A Three Phase Adaptor
  • Seaward 32A Three Phase Adaptor
  • Microwave Leakage Detector
  • 150 x Microwave Emission Labels
  • 110V Appliance Adaptor
  • 110V Extension Lead Adaptor
  • IEC Adaptor Kit
  • TEK989 Socket Tester
  • 1000 Pass Labels
  • 200 Fail Labels
  • 250 PassWrap Cable Labels
  • PermaTAG Industrial Cable Labels
  • Seaward PATBag Carry Case

Limited Lifetime Warranty

The Seaward Primetest 250+ Portable Appliance Tester offers simple operation for performing PAT testing, RCD testing and 3-phase testing. In addition this PAT tester also has a 250V DC insulation test for sensitive appliances and surge protected leads.

The auto test sequence buttons and clear display of Pass/Fail with test results make the Primetest 250+ PAT tester perfect for both entry-level and intermediate users. With RCD and three-phase functionality, the PT250+ is an extremely versatile PAT tester suitable for a testing a wide range of electrical appliances.

*This product qualifies for our exclusive Limited Lifetime Warranty. For more information please click here.

Seaward Primetest 250+ Three-Phase Kit Includes:

  • Seaward Primetest 250 PLUS PAT Tester (complete with Earth Bond Lead & Crocodile Clip, 230V Extension Lead Adaptor, Mains Lead, Primetest 250 Instruction Manual, 6 x AA Batteries and Carry Case)
  • SimplyPATs Version 7 Manual Software
  • Seaward 16A Three Phase Adaptor
  • Seaward 32A Three Phase Adaptor
  • Microwave Leakage Detector
  • 150 x Microwave Emission Labels
  • 110V Appliance Adaptor
  • 110V Extension Lead Adaptor
  • IEC Adaptor Kit
  • TEK989 Socket Tester
  • 1000 Pass Labels
  • 200 Fail Labels
  • 250 PassWrap Cable Labels
  • PermaTAG Industrial Cable Labels
  • Seaward PATBag Carry Case

For more detailed information on the Seaward Primetest 250+ Portable Appliance Tester please click here.

  Elements Bundle Pro Bundle Pro Bundle with Software 3-Phase Kit
Seaward Primetest 250+ PAT Tester accessories
110V Appliance Adaptor
Clover Leaf Adaptor
IEC Adaptor Kit
Primetest Checkbox
Seaward PAT Training Online Course Voucher
Seaward PATBag Carry Case

Seaward Test n' Tag Pro Printer (Serial version)

SimplyPATs Version 7 Manual Software
Seaward PATGuard Elite 3 Software
(1 Year Licence)

16A three-phase adaptor
32A three-phase adaptor

Earth Continuity

  • Output Current - 200mA minimum into 2Ω
  • Test Voltage (o/c) - 9V DC nominal
  • Test Duration (Class I Test) - 2s nominal
  • Display Range - 0.01Ω to 19.99Ω
  • Pass Value (Class I Test) - 0.2Ω

Insulation Resistance

  • Test Voltage - 250/500V DC @1mA nominal, <2mA (s/c)
  • Test Duration (Class I or II) - 2s
  • Display Range - 0.01MΩ to 19.99MΩ
  • Pass Value - Class I: 1.0MΩ, Class II: 2.0MΩ

Equivalent Leakage

  • Test Voltage - 40V Nominal AC 50Hz Open Circuit
  • Test Duration - 2s
  • Display Range - 0.1mA to 19.99mA
  • Pass Value - 0.75mA/3.5mA (user selectable with 0.75mA as default)/0.25mA CL II

IEC Lead Test

  • Test Voltage - 5V DC Nominal
  • Test Duration - Time for Test (2s max)
  • Test - Live/Neutral Checks for o/c, s/c and crossed

Protective Conductor Current

  • Test Voltage - Supply voltage, max current 13A
  • Test Duration - 120s Maximum
  • Display Range - 0.15mA to 9.99mA
  • Pass Value - 0.75mA/3.5mA (user selectable with 0.75mA as default)

Touch Current

  • Test Voltage - Supply voltage, max current 13A
  • Test Duration - 120s maximum
  • Display Range - 0.10mA to 3.50mA
  • Pass Value - 0.25mA

3 Phase Differential Leakage Current *Requires 3 phase adaptor accessory

  • Test Voltage - 3 phase supply voltage
  • Test Duration - Continuous measurements
  • Display Range - 0.10mA to 9.99mA
  • Pass Value - 0.75mA/3.5mA (user selectable with 0.75mA as default)

RCD Trip Time

  • Test Voltage - Mains supply voltage
  • Test Current - 30mA/150mA rms sinusoidal
  • Test Current Phase - 0/180° auto switched on alternate tests
  • Measuring Range - 0ms to 500ms
  • Pass Value - 200ms

Power Socket Check

  • Input Voltage Range - 225-254V AC max current 13A UK
  •  Indicates configuration of voltage potentiall - Line to earth, line to neutral, neutral to earth

General

  • Memory Size - 999 Test Records
  • Power Source - 6 x AA Batteries

The Seaward Primetest 250 Three-Phase Kit comes with:

  • Seaward Primetest 250 PLUS PAT Tester (complete with Earth Bond Lead & Crocodile Clip, 230V Extension Lead Adaptor, Mains Lead, Primetest 250 Instruction Manual, 6 x AA Batteries and Carry Case)
  • SimplyPATs Version 7 Manual Software
  • Seaward 16A Three Phase Adaptor
  • Seaward 32A Three Phase Adaptor
  • Microwave Leakage Detector
  • 150 x Microwave Emission Labels
  • 110V Appliance Adaptor
  • 110V Extension Lead Adaptor
  • IEC Adaptor Kit
  • TEK989 Socket Tester
  • 1000 Pass Labels
  • 200 Fail Labels
  • 250 PassWrap Cable Labels
  • PermaTAG Industrial Cable Labels
  • Seaward PATBag Carry Case
