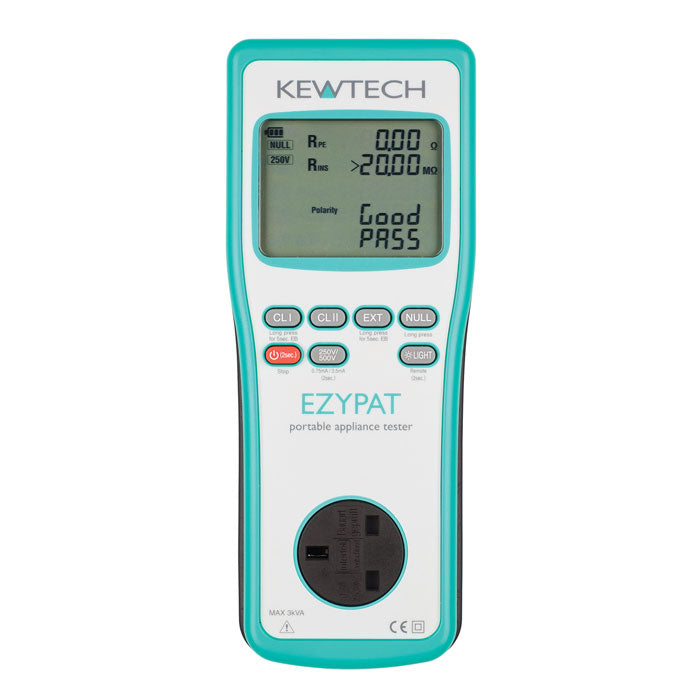

Kewtech EZYPAT PAT Tester

  • Tests Class I and Class II appliances and extension leads with automatic sequences
  • Dual voltage insulation test and 5s continuity test plus substitute leakage
  • LCD screen flashes green to indicate PASS and red for FAIL

£274.95 EXC. VAT

IN STOCK

Description

The Kewtech EZYPAT PAT Tester is a compact, battery-powered instrument that performs PAT test functions including earth bond continuity, insulation resistance, polarity, and substitute leakage tests. The 200mA continuity testing function can be deployed in a quick test mode or as a 5-second test whilst the insulation test can use a 500V or 250V test voltage. The lower test voltage option allows the user to test surge-protected extension leads without tripping the protection. Substitute leakage can be measured from 0.15 to 12mA RMS and there is a test lead nulling function to account for resistance in test leads.

The user interface of the Kewtech EZYPAT is extremely simple thanks to automatic test sequences for Class I, Class II and extension leads that are activated with individually labelled buttons. Results are shown on the clear, backlit, LCD screen which indicates actual readings, battery level, and a PASS/FAIL judgment. The screen helpfully flashes red in the event of a failed test and green in the event of a passed test.

The Kewtech EZYPAT comes supplied with an earth lead, test probe, crocodile clip, extension lead adaptor, and carry case. The compact tester is excellent for carrying around with the user and fits easily into the carry case. It is compliant with standards including EN61010 and the battery will provide enough energy for roughly 1400 tests.

Kewtech part number: EZYPAT

Key Features

  • 200mA earth bond continuity test
  • Quick test and 5s continuity test
  • 250V and 500V insulation test
  • Substitute leakage measurement
  • Test lead nulling function
  • Automatic test sequences
  • Coloured clear LCD screen
  • Green = PASS, red = FAIL
  • Battery operated

  EZYPAT EZYPAT Plus SMARTPAT
200mA continuity test
250V Insulation Test
500V Insulation Test
Substitute Leakage Measurement
Polarity Check
110V Load and Run Test
230V Load and Run Test
Portable RCD Test
Compatible with KEWPAT App
Customisable Test Sequences

Specification

Protective Conductor Resistance

  • Measuring range: 0.00 - 20.00 Ω (NULL value inc)*
  • Over-range indication: > 20.00 Ω
  • Resolution: 0.01Ω
  • Open-circuit voltage: 5 V ±0.4 V DC
  • Measuring current: 200 mA DC (nominal value)
  • Accuracy: ±3%rdg ±5dgt

Insulation

  • Rated voltage: 250V / 500V
  • Measuring range: 0.00 - 20.00 MΩ
  • Over-range indication: > 20.00 MΩ
  • Resolution: 0.01 MΩ
  • No-load voltage: 250 V DC +20%, -0% / 500 V DC +20%, -0%
  • Short-circuit current: 1.5 mA DC or less
  • Rated current: 1 -1.2 mA with a load of 0.25 MΩ / 1 to 1.2 mA with a load of 0.5 MΩ
  • Accuracy: ±2%rdg±3dgt

Substitute Leakage

  • Measuring range: 0.10 - 12.00 mA rms
  • Over-range indication: > 12.00 mA
  • Resolution: 0.01mA
  • Open-circuit voltage/ Freq.: 30 V ±5 V rms / 50 Hz ±5%
  • Measuring current: 1.2 mA AC ±0.5 mA (when measuring 12.00 mA)
  • Accuracy: ±3%rdg±5dgt

Applicable Standards

  • Safety: IEC/EN61010-1 CAT II 300V-instrument; IEC/EN61010-2-030; IEC/EN61010-031 CAT III 600V
  • EMC: EN61326-1, 2-2
  • Possible number of measurements where battery voltage is within the effective range (measuring every 30 sec): Approx. 1400 times (CLI Rpe: 0 Ω, Rins: 1.1 MΩ)

Supplied Accessories

The Kewtech EZYPAT PAT Tester comes with:

  • Kewtech EZYPAT PAT Tester
  • Earth lead with probe and croc clip
  • Extension lead adapter
  • Carry bag with strap
  • Quickstart manual
  • End of line Cal Cert
